Force Logic LOAD-MASTER LM Load Link Indicator | 5 - 300 Tonne

Frequently bought together

Force Logic LOAD-MASTER LM Load Link Indicator | 5 - 300 Tonne

From: £1,115.00Ex. VAT

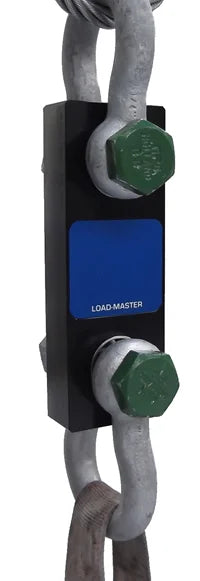

LOAD-MASTER LM tension link load cells provide the ideal solution for proof load testing structures and rigging, load measurement of hoists and lifting equipment, and as crane scales for weighing suspended loads.

Rated capacities from 5 tonne to 300 tonne
Cabled (LM-C) and Wireless (LM-W) versions
High strength stainless steel load cell

Hire Me

Green Pin® Bow Shackle SC - Standard bow shackle with screw collar pin

From: £3.14Ex. VAT

Hire from £2.20

The Green Pin®Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long term durability

Total: £0.00

Digital Load Link Indicator – Loadlink Plus

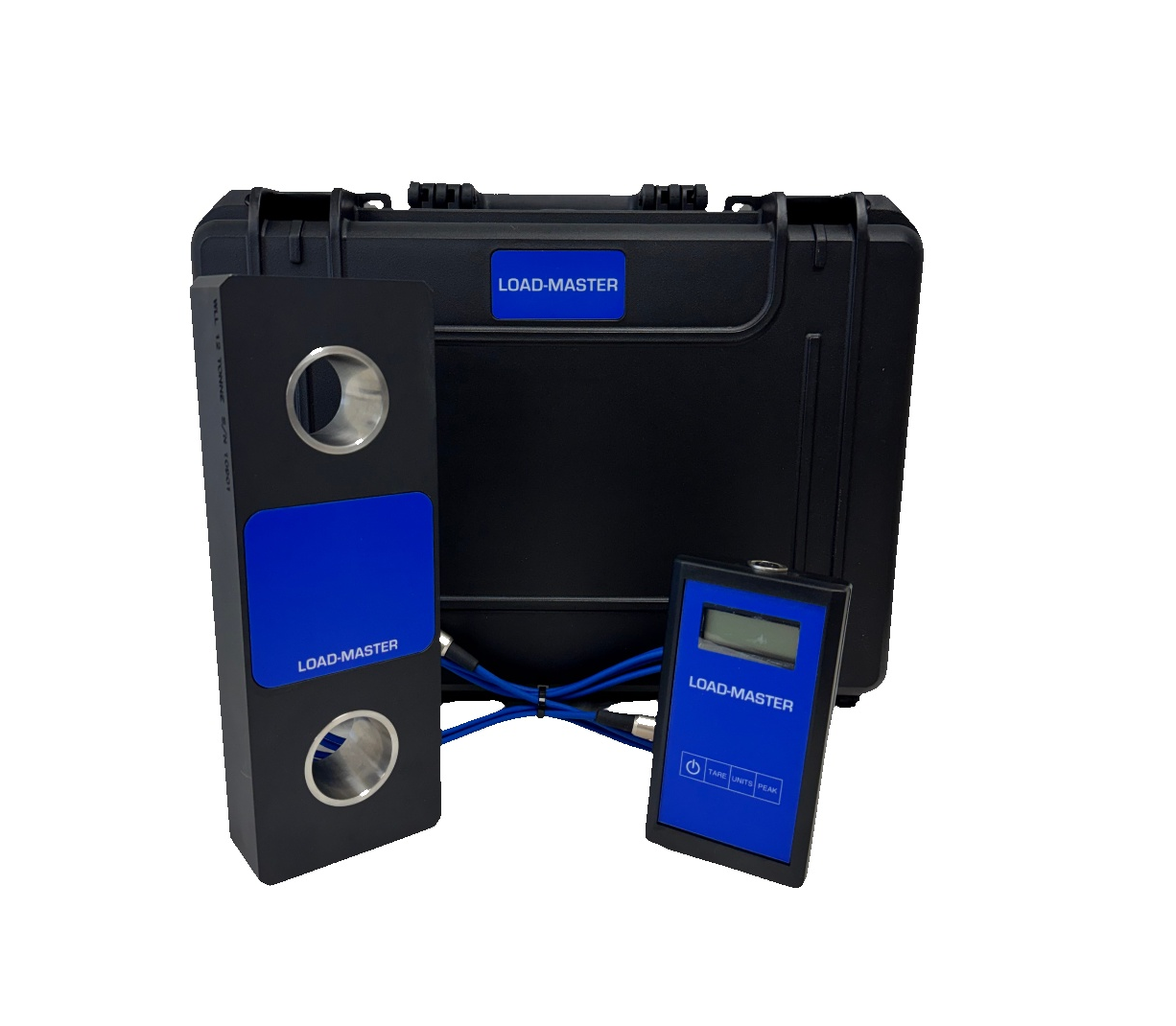

Compact size and lightweight yet retaining the high safety factors required for lifting and material handling. LOAD-MASTER LM load cells guarantee safe and accurate measurements in all industrial processes. LM-C and LM-W standard portable systems include handset display with ‘tare’ and ‘peak hold’ function.

Also available with a range of single and multi-channel indicating, recording & control instruments.

Display Units - Tonne
Battery life - 250 hours minimum
Wireless Range (LM-W) - 100 metre (direct sight)
Cable Length (LM-C) - 10 metre
Maximum Error - 0.25 % applied load
Safety Factor - 5 x rated capacity
Operating Temperature - 0 to 50 °C
Environmental Sealing - IP65

LM_DS.pdf

Range	A	B	C	D	ØE
5	250	95	35	170	27
12	290	101	50	180	48
25	320	127	55	200	55
50	430	152	75	250	76
100	600	265	100	320	100
200	700	325	150	350	146
300	800	375	200	420	162

Force Logic LOAD-MASTER LM Load Link Indicator | 5 - 300 Tonne

From: £1,115.00Ex. VAT

Est. lead time to dispatch: 1 Day

Rated capacities from 5 tonne to 300 tonne
Cabled (LM-C) and Wireless (LM-W) versions
High strength stainless steel load cell
