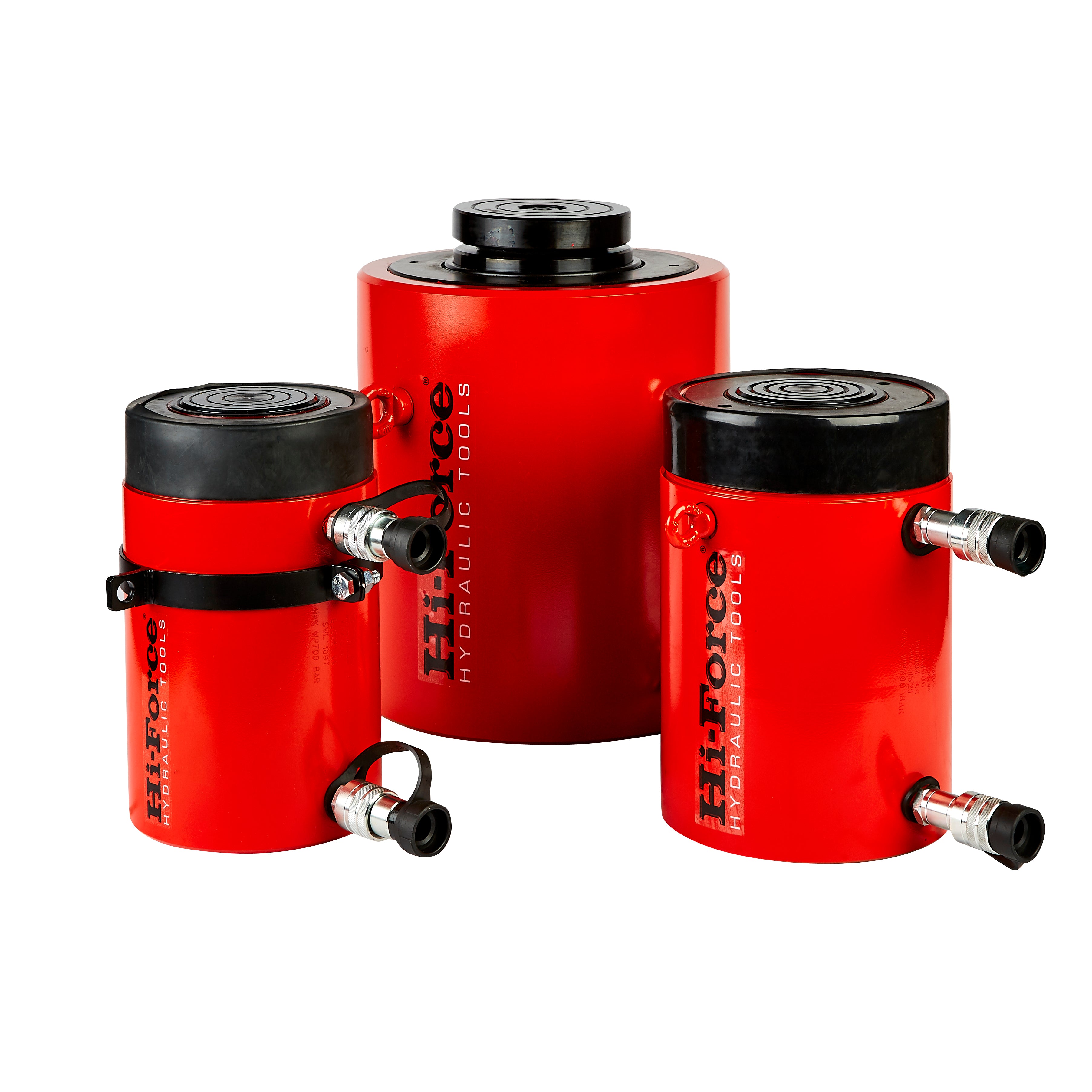

HDA Range

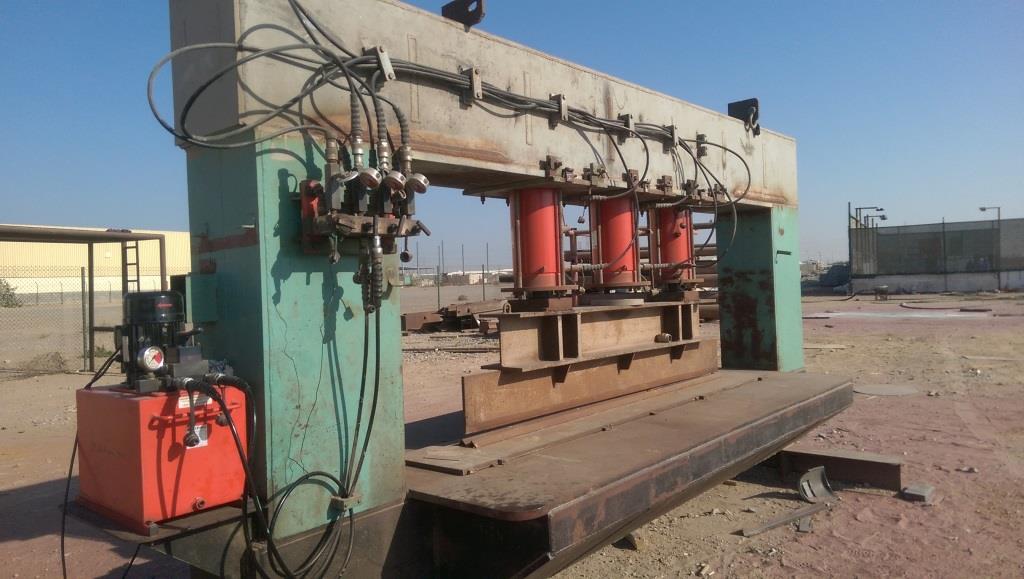

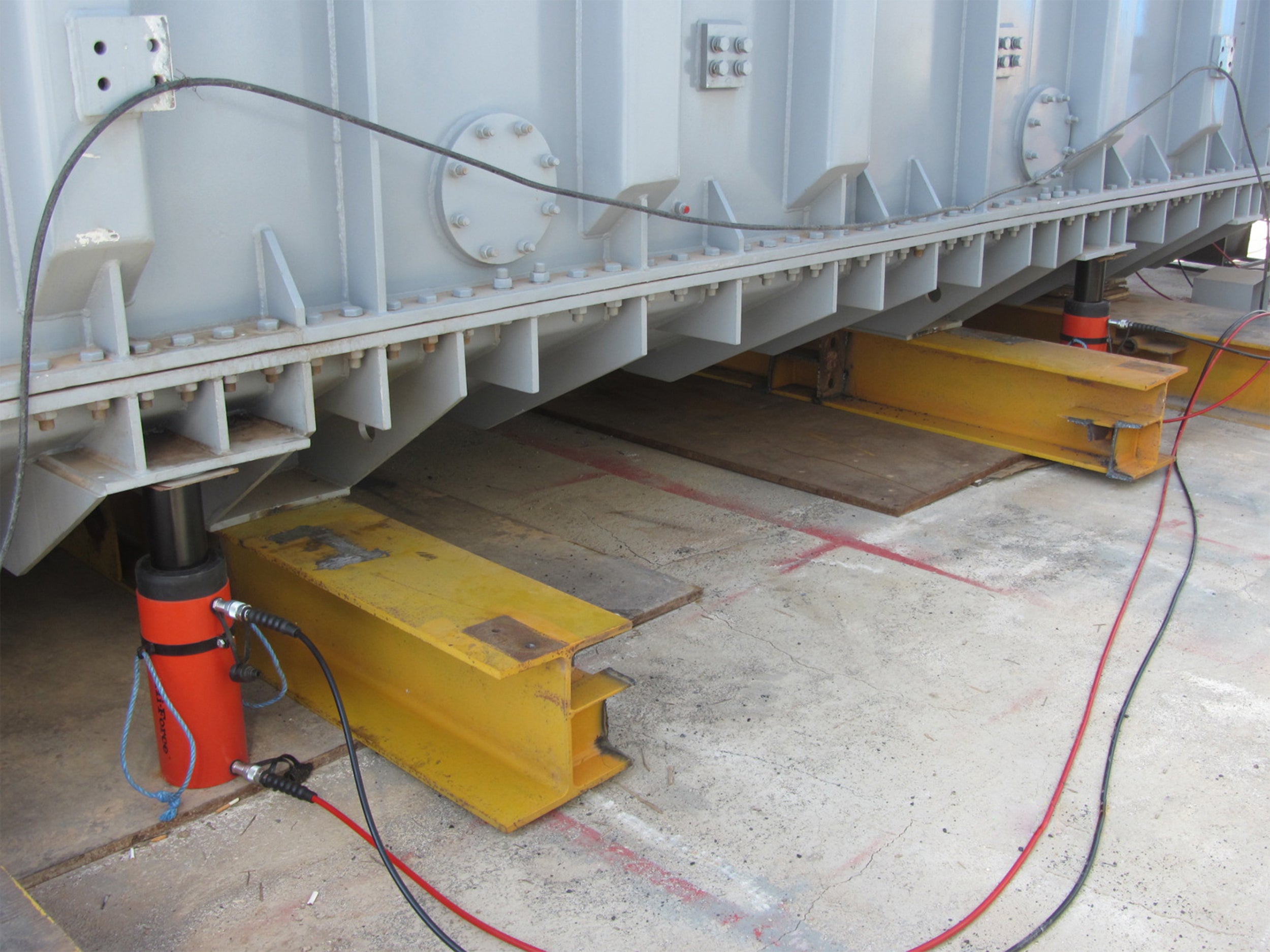

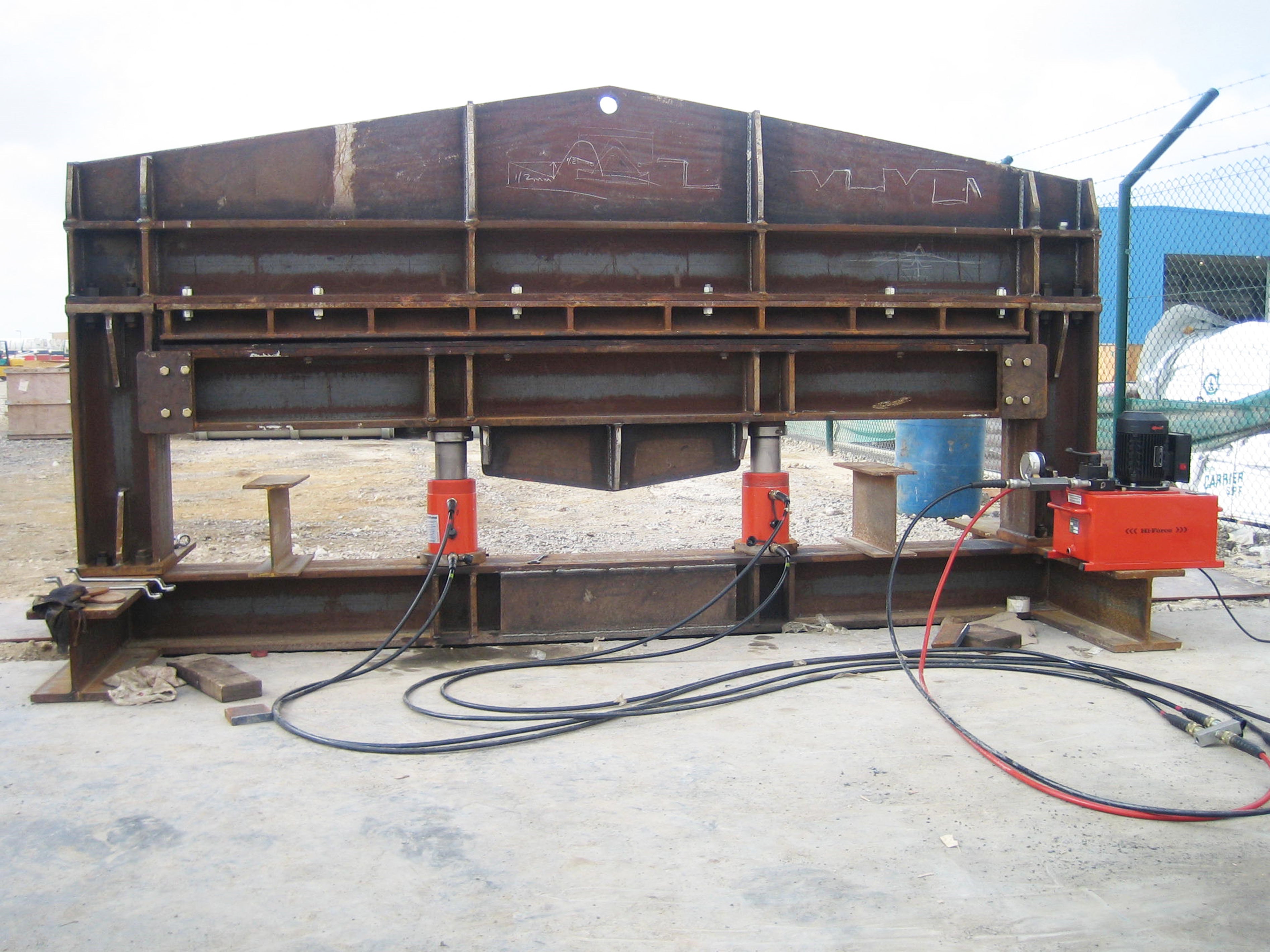

The HDA double acting cylinder range offers the utmost in versatility and durability. Specifically designed for heavy duty lifting, construction and maintenance applications as well as presswork and industrial production, the double acting design provides substantial pulling force in the piston retraction mode as well as providing fast, controlled retraction for continuous duty cycle operation. All models up to 203 tonnes are supplied with flat saddle, piston rod threads and collar threads as standard. Models from 326 tonnes and upwards are supplied without collar thread and piston rod thread, however include replaceable tilting saddle as standard. Other capacities and stroke lengths are available on request.

Capacities from 25 to 1012 tonnes
Stroke lengths from 152 to 508 mm
Working pressure 700 bar
Internal annular area overload protection valve
Low friction bearing surfaces
Nitrocarburised piston rod
Anti-extrusion seals
Lifting ring as standard on models from 50 to 109 tonnes
Eyebolts as standard on models from 152 to 1012 tonnes
Base mounting holes* (*Base mounting holes are for location of cylinder only. They are not designed to resist the full capacity of the cylinder)
Customised and special design cylinders are available on request

HDA-Catalogue-Page-PDF22202653120.pdf

Model	Push (t)	Pull (t)	Stroke (mm)	Oil Capacity (L)	Cylinder Eff. Area (cm²)	Weight (kg)	A	B	C	D	E	F	G	H	I	J
HDA256	25	10	152	0.53	34.9	15.0	287	92	50	3 5/16"-12 UN	53	M10	60	30	212	40°
HDA506	50	15	152	1.08	71.3	28.4	295	127	79	5"-12 UN	55	M12	85	20	216	30°
HDA5013	50	15	330	2.35	71.3	42.6	473	127	79	5"-12 UN	55	M12	85	20	394	30°
HDA5020	50	15	508	3.62	71.3	62.8	730	127	79	5"-12 UN	55	M12	85	68	636	30°

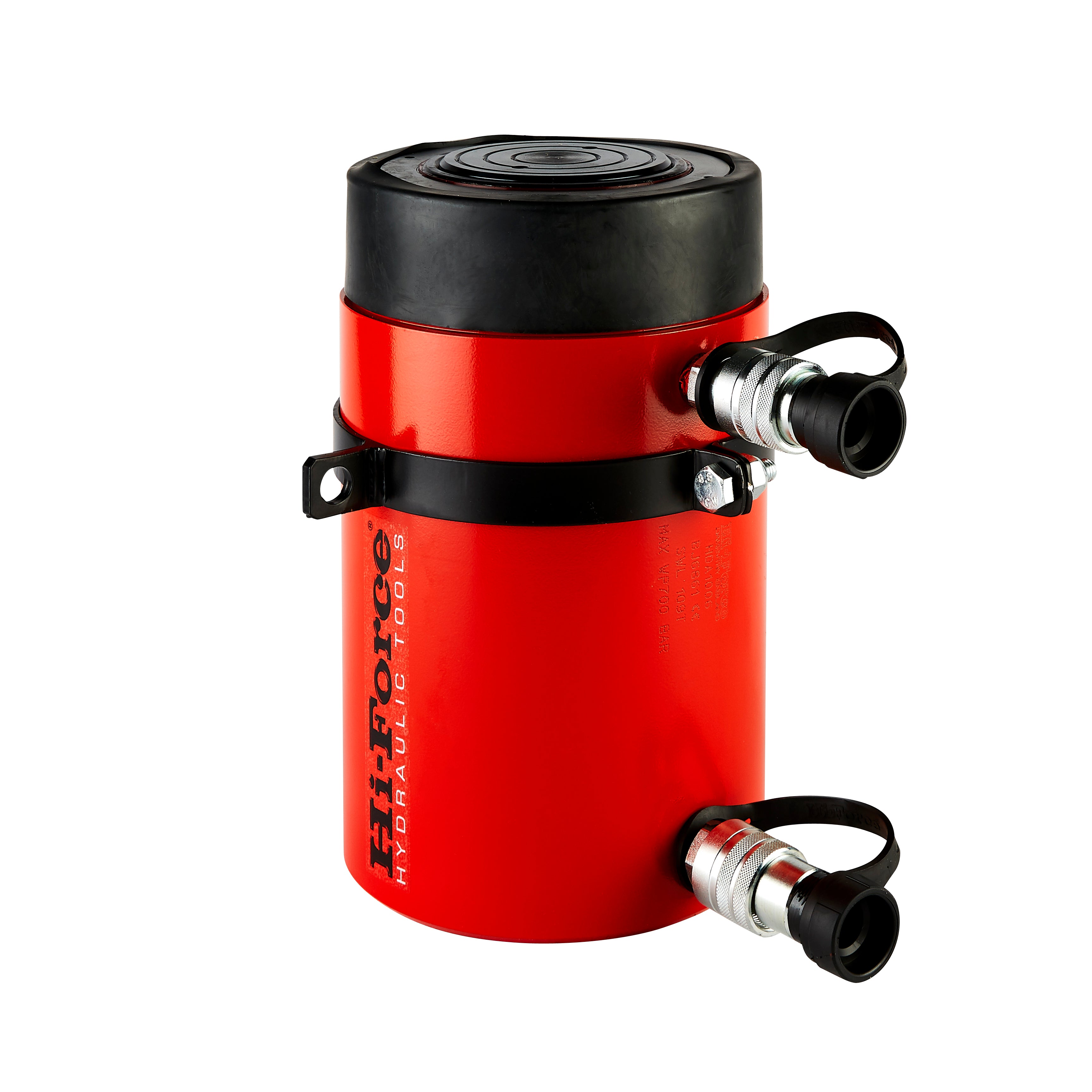

HDA1006	109	36	152	2.33	153.3	64.5	304	185	114	6 7/8"-12 UN	51	M12	146	30	226	30°
HDA10013	109	36	330	5.06	153.3	89.0	482	185	114	6 7/8"-12 UN	51	M12	146	30	404	30°
HDA1506	152	79	152	3.26	214.2	90.0	310	210	114	8"-12 UN	55	M16	160	35	231	30°
HDA15012	152	79	305	6.53	214.2	120.5	463	210	114	8"-12 UN	55	M16	160	35	384	30°
HDA2006	203	94	152	4.33	285.2	129.8	327	254	140	9 3/4"-12 UN	65	M20	185	43	238	30°
HDA20012	203	94	305	8.69	285.2	167.4	480	254	140	9 3/4"-12 UN	65	M20	185	43	391	30°

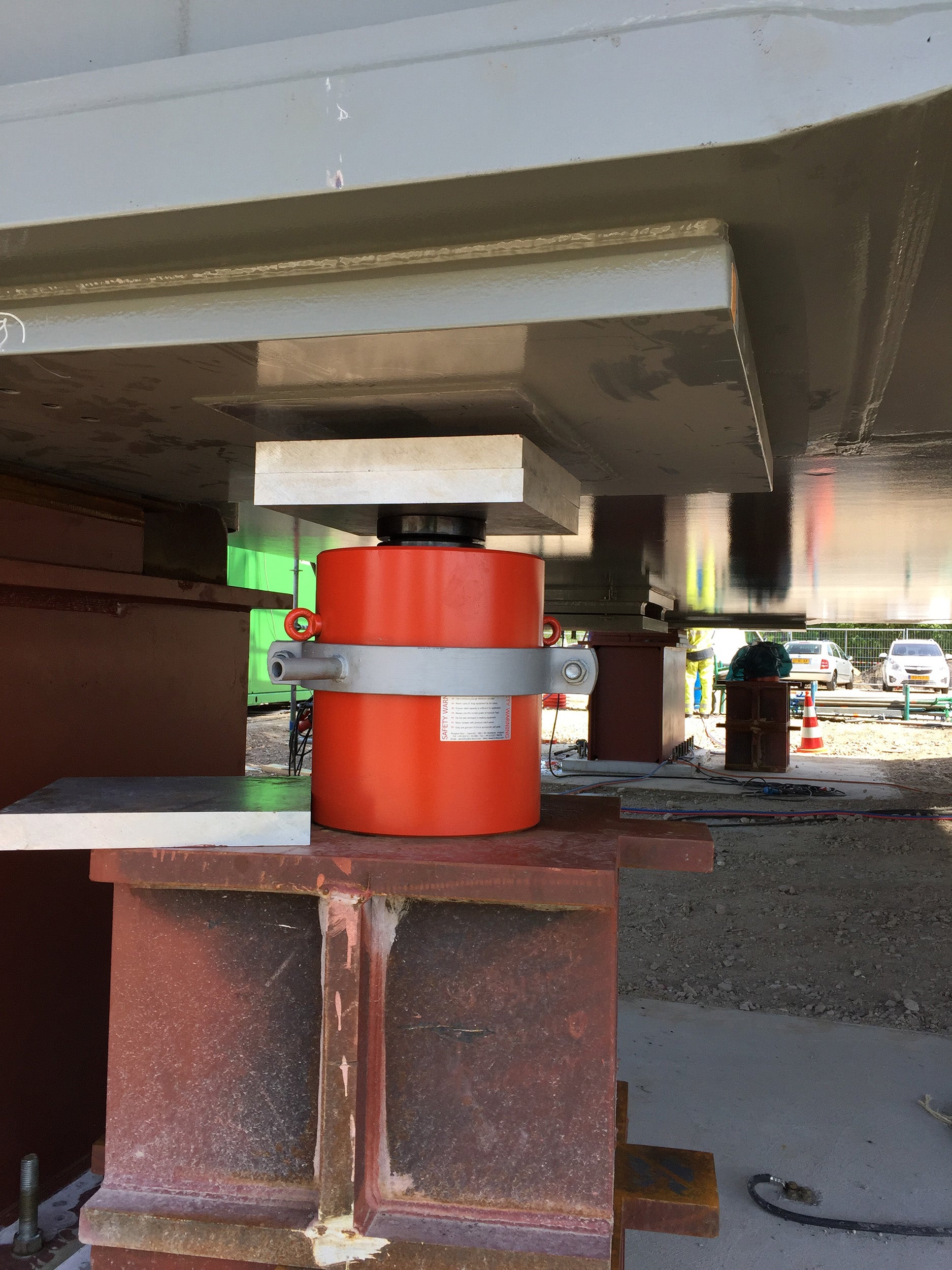

HDA3006	326	–	152	6.95	457.4	193.0	409	312	165	Optional	Optional	M20	158	50	262	30°
HDA30012	326	–	305	13.95	457.4	250.0	562	312	165	Optional	Optional	M20	158	50	415	30°
HDA4006	398	–	152	8.49	558.9	286.0	431	360	216	Optional	Optional	M24	203	55	277	30°
HDA40012	398	–	305	17.04	558.9	387.0	584	360	216	Optional	Optional	M24	203	55	430	30°
HDA5006	520	–	152	11.09	729.9	372.0	470	397	203	Optional	Optional	M24	203	65	300	30°
HDA50012	520	–	305	22.26	729.9	473.0	623	398	203	Optional	Optional	M24	203	65	453	30°
HDA8006	809	–	152	17.28	1134.1	650.0	535	500	300	Optional	Optional	Optional	Optional	70	318	30°
HDA10006	1012	–	152	21.62	1419.3	900.0	590	540	320	Optional	Optional	Optional	Optional	99	357	30°
