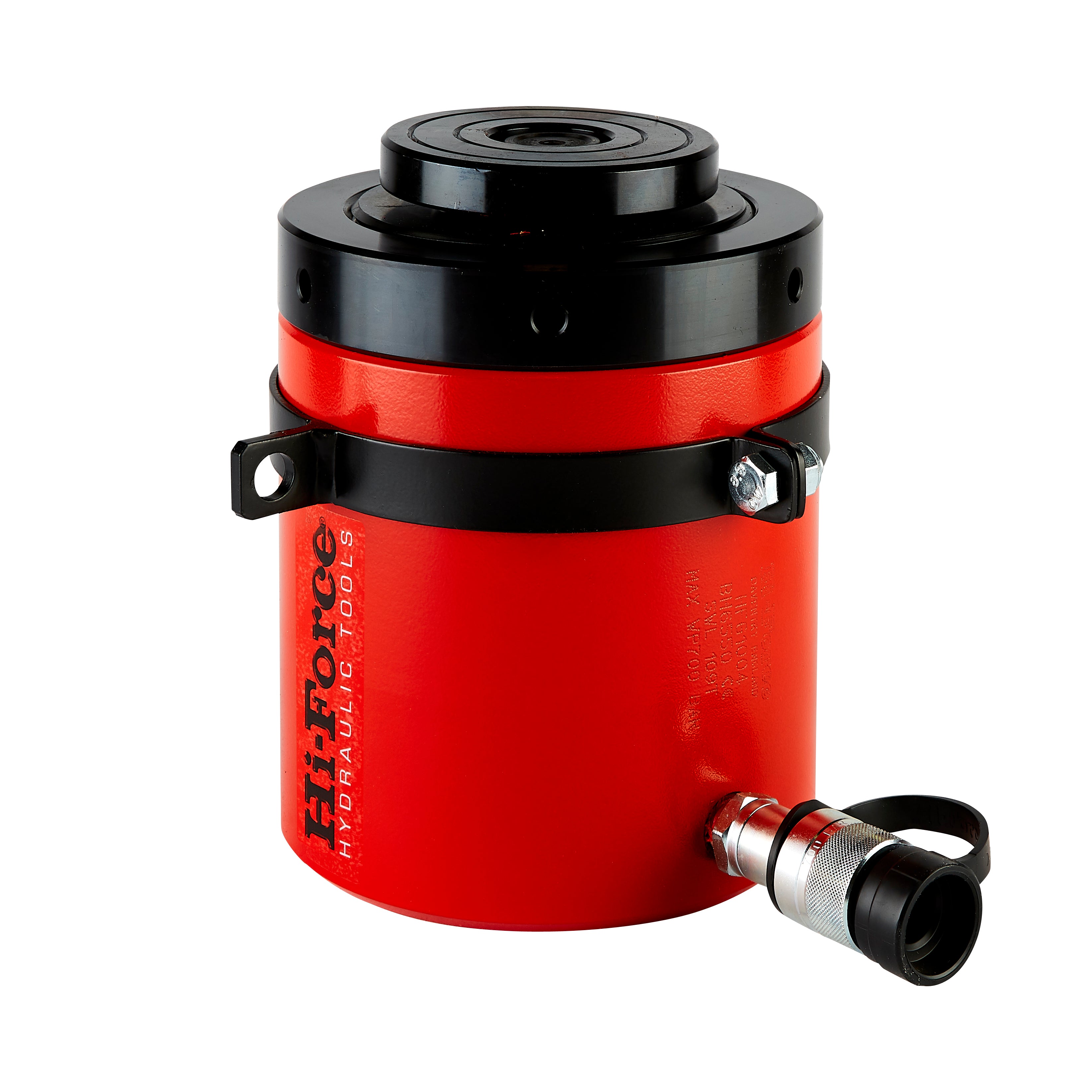

Hi-Force HFG Range single acting failsafe lock ring Hydraulic cylinder | 50 to 1012 tonnes

From: £924.00Ex. VAT

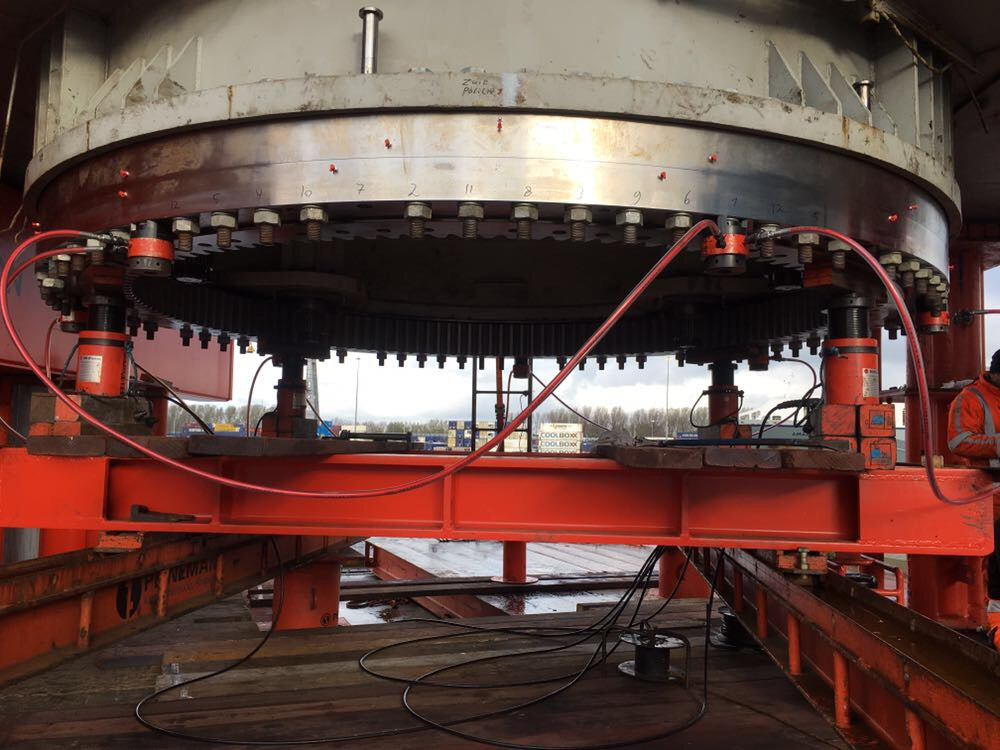

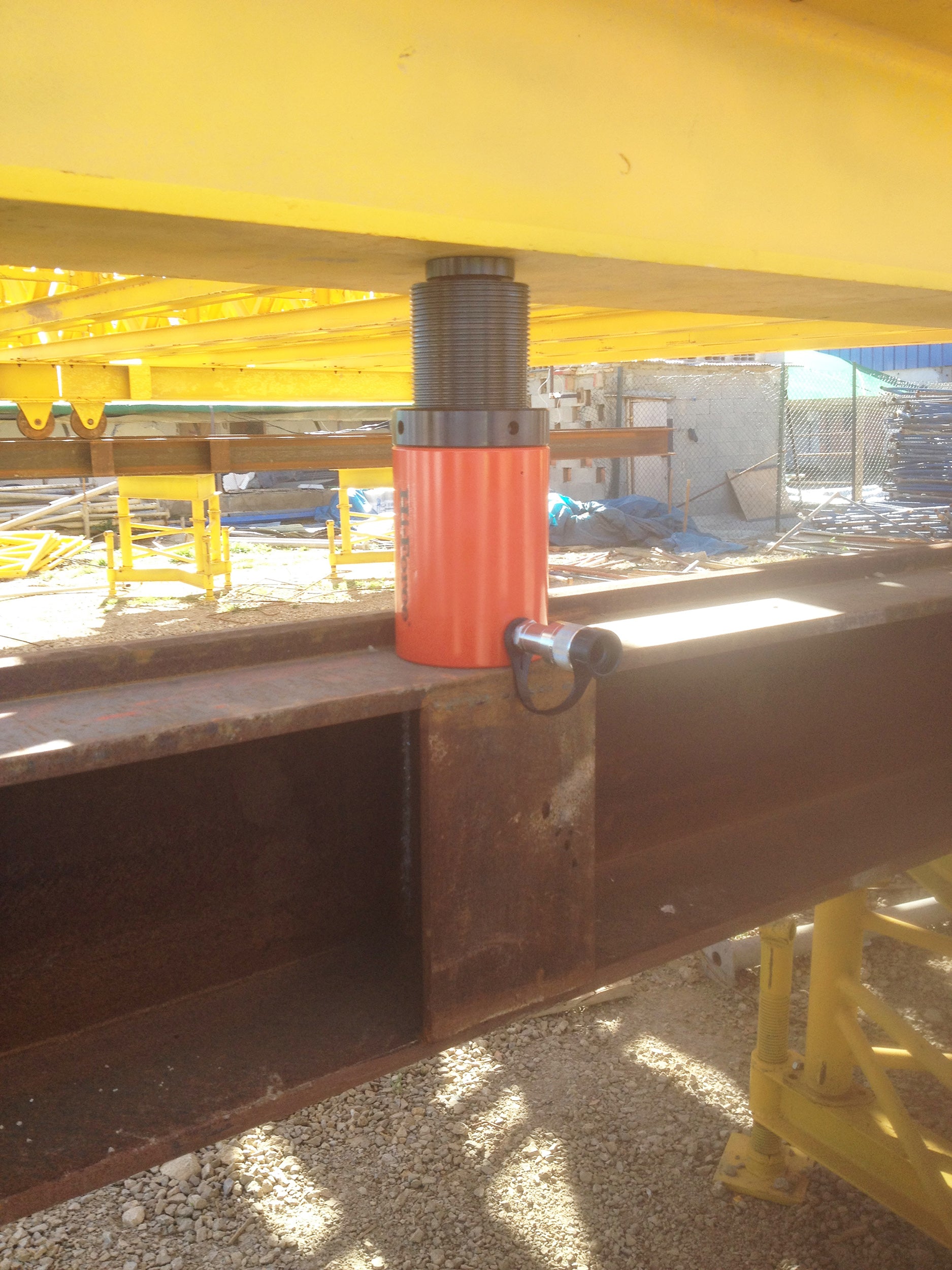

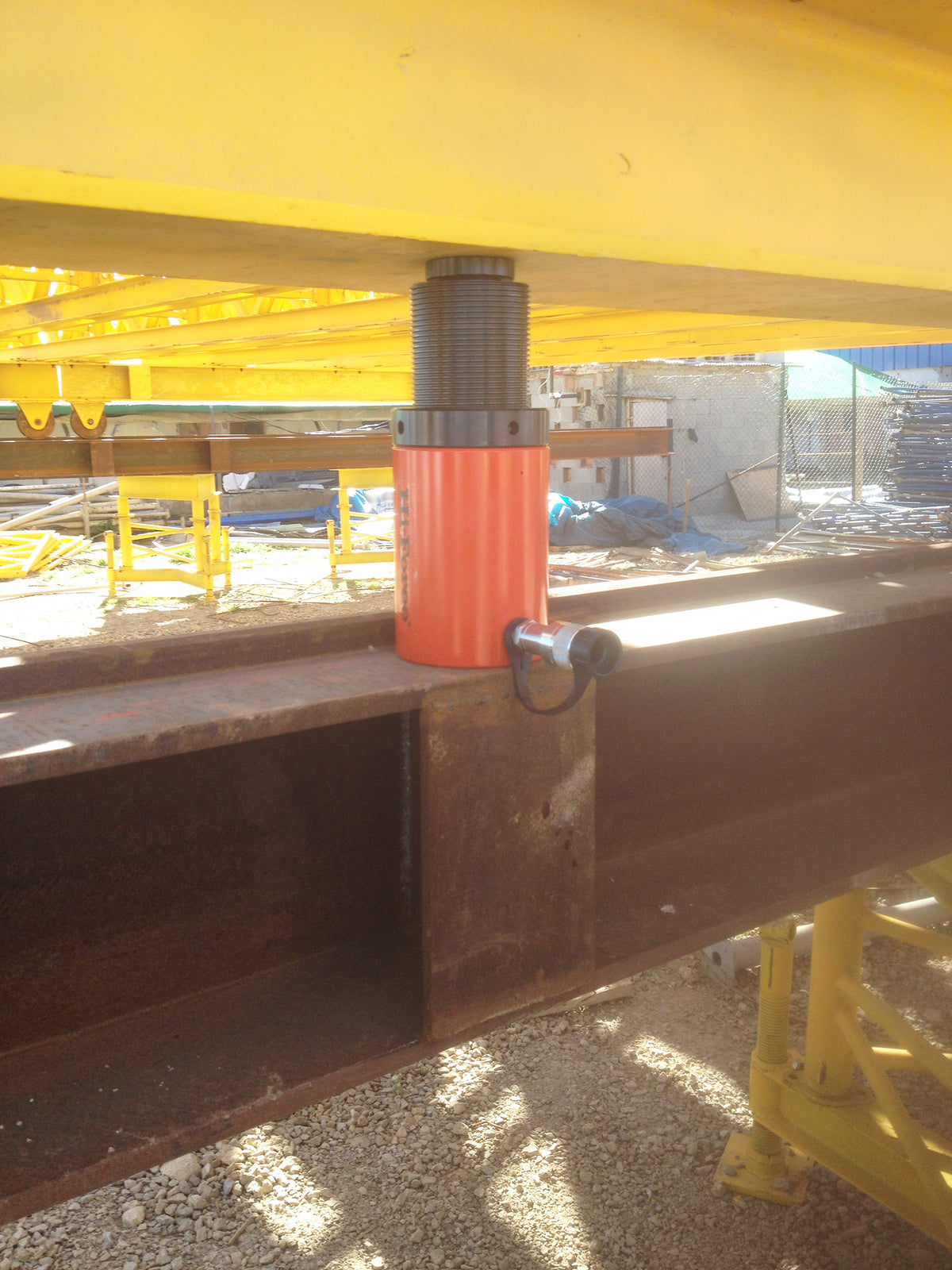

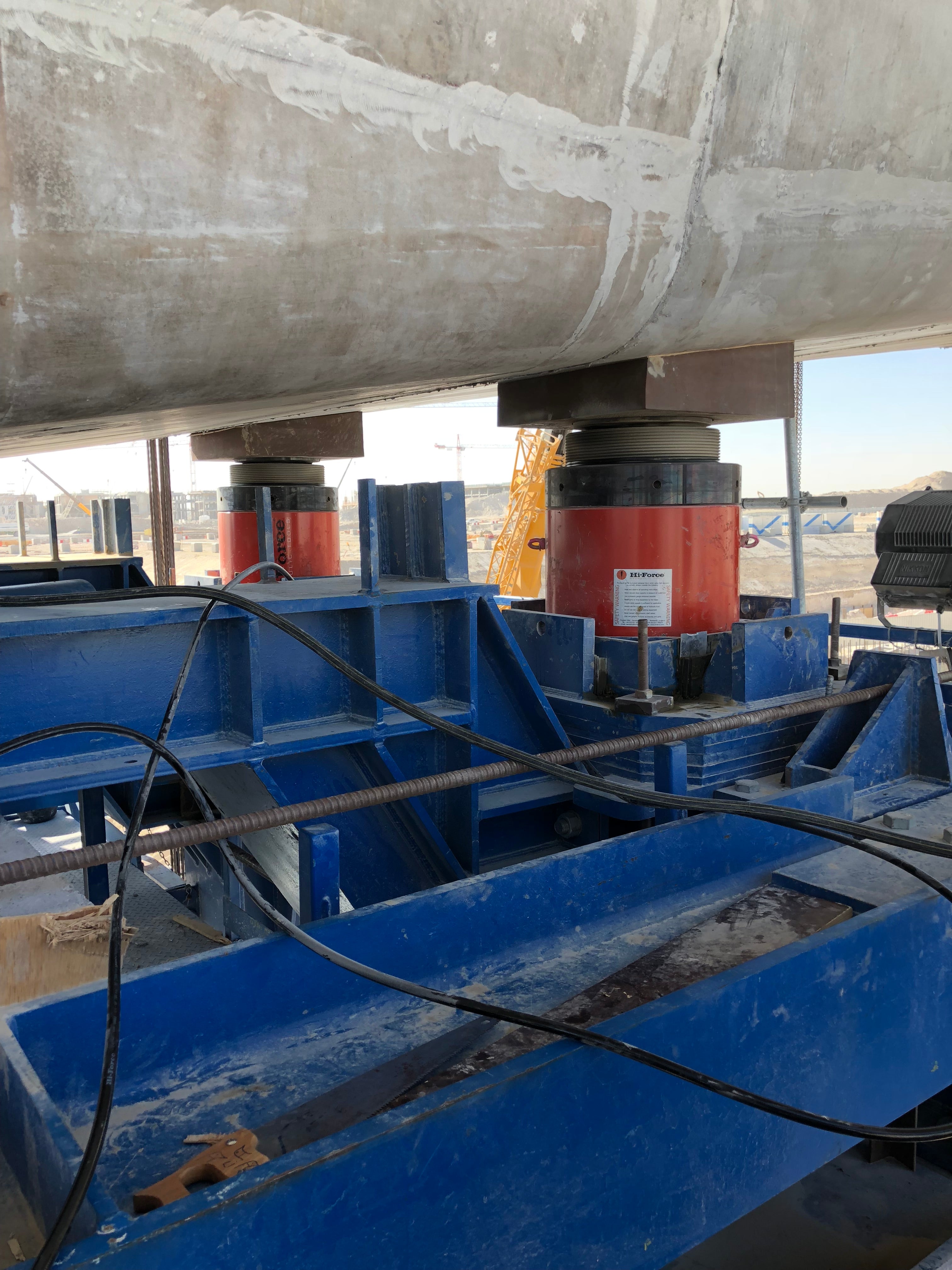

The HFG single acting failsafe lock ring cylinder range combines all the versatility and efficiency of hydraulic power with the safety of mechanical load support. Ideally suited for applications requiring sustained load holding for extended periods, such as bridge support work, the HFG range features a single acting, load return piston, threaded throughout its stroke length to suit the threaded mechanical load holding lock ring. Simply jack up the load, wind down the mechanical lock ring until it comes into contact with the cylinder body, release the hydraulic pressure and sustain the load mechanically. All models are suitable for vertical lifting only and are supplied with tilting saddles as standard to reduce the risk of side loading the cylinder.

Capacities from 50 to 1012 tonnes
Stroke lengths from 50 to 152 mm
Working pressure 700 bar

Hi-Force HP Range - Steel Hydraulic Pump

From: £275.00Ex. VAT

The HP manually operated pump range offers a choice of single or two speed operation and all models are supplied complete with a pre-filled oil reservoir, ready for immediate use. All models have a maximum working pressure of 700 bar and the range includes pump models suitable for use with either single acting cylinders or tools. The HP range offers the ideal solution for applications where completely independent, portable hydraulic power is required. With low handle effort characteristics for easy operation, all models are of strong durable construction. Hi-Force HP manually operated pumps have a proven track record industry wide and offer excellent value for money in portable hydraulic power. A full range of system components suitable for use with HP manually operated pumps are available.

Single or two speed operation
Durable steel construction
Working pressure 700 bar

Total: £0.00

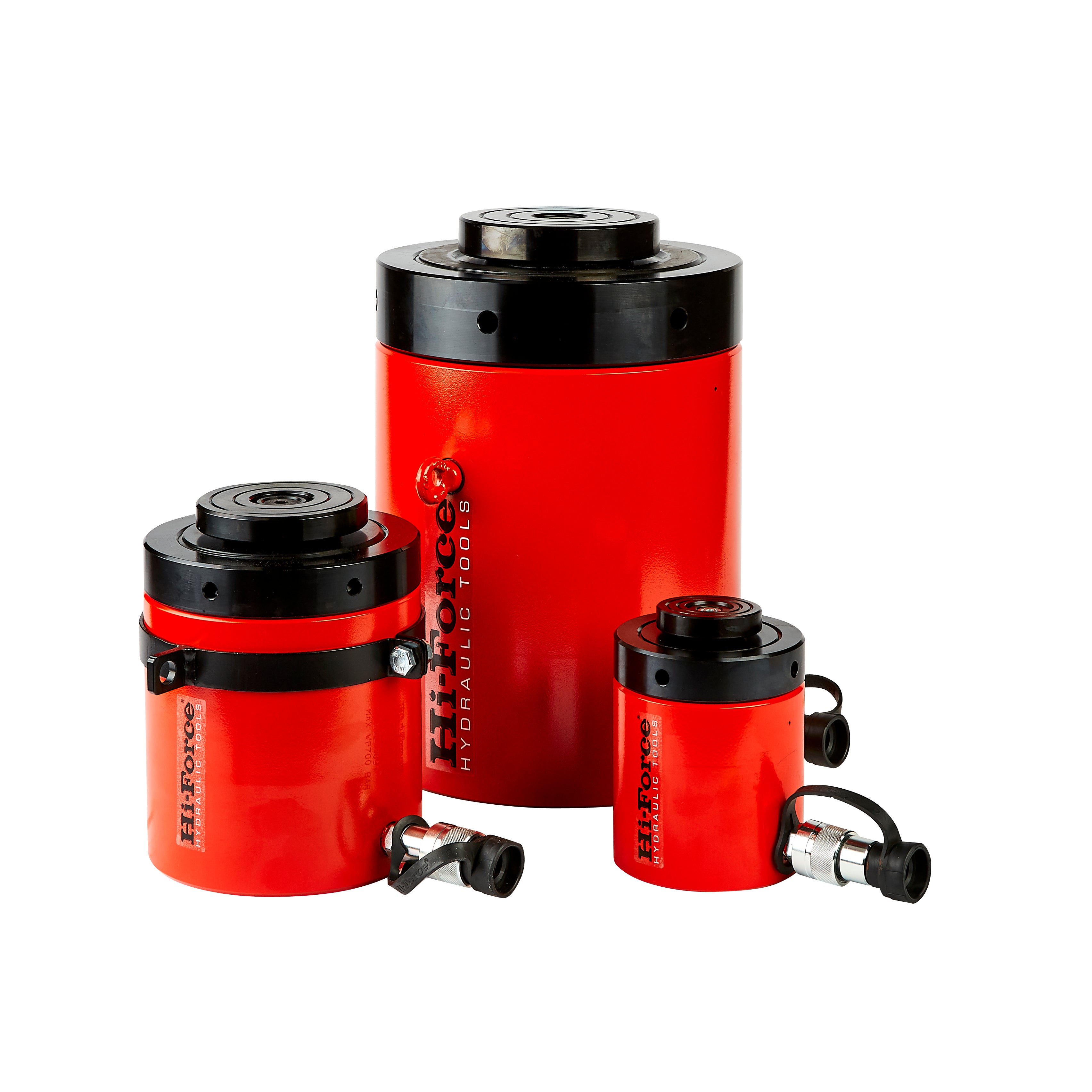

HFG Range

Capacities from 50 to 520 tonnes
Stroke lengths from 45 to 51 mm
Working pressure 700 bar
Single acting load return design
Nitrocarburised cylinder and piston rod
Low friction bearing surfaces
Anti-extrusion seals
Tilting saddle fitted as standard
Overstroke restrictor port
Customised and special design cylinders are available on request

Page_015_HFG.pdf

Model number	Capacity (tonnes)	Stroke (mm)	Oil capacity (litres)	Cylinder eff. area (cm²)	Weight (kg)	Tommy bar	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
HFG502	50	51	0.36	71.3	16.2	TTB10	173	127	95	70	25
HFG504	50	102	0.73	71.3	20.6	TTB10	224	127	95	70	25
HFG506	50	150	1.07	71.3	25.0	TTB10	272	127	95	70	25
HFG1002	109	51	0.76	153.4	35.0	TTB10	189	185	140	115	27.5
HFG1004	109	100	1.53	153.4	50.3	TTB10	240	185	140	115	27.5
HFG1006	109	150	2.3	153.4	65.4	TTB10	311	185	140	115	27.5
HFG1502	152	51	1.07	214.3	78.0	TTB10	237	216	165	135	42
HFG1504	152	100	2.14	214.3	84.0	TTB10	288	216	165	135	42
HFG1506	152	150	3.21	214.3	89.5	TTB10	338	216	165	135	42
HFG2002	203	50	1.42	285.1	95.4	TTB14	261	254	190	135	50
HFG2006	203	152	4.33	285.1	137.0	TTB14	362	254	190	135	50
HFG2506	256	152	5.5	366.5	171.0	TTB14	401	273	216	150	50
HFG3006	326	150	6.87	457.7	228.5	TTB14	417	310	241	150	50
HFG4006	398	151	8.44	559	308.5	TTB14	459	360	267	180	70
HFG5006	520	152	11.1	729.9	457.0	TTB16	498	400	305	180	80
HFG8006	809	152	17.47	1134.1	735.0	TTB16	565	480	380	340	80
HFG10006	1012	152	21.61	1419.3	1016.0	TTB20	620	540	425	380	90

Hi-Force HFG Range single acting failsafe lock ring Hydraulic cylinder | 50 to 1012 tonnes

From: £924.00Ex. VAT

Est. lead time to dispatch: 1-2 Days

Capacities from 50 to 1012 tonnes
Stroke lengths from 50 to 152 mm
Working pressure 700 bar
