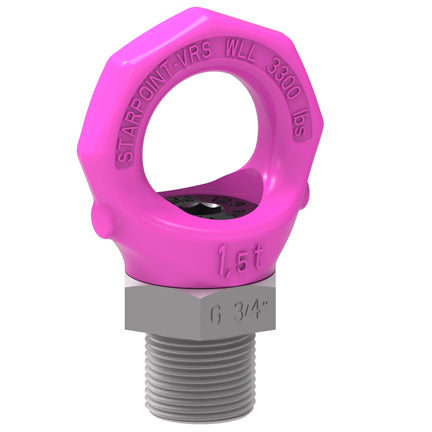

RUD Starpoint Eyebolts – High-Performance Rotating Lifting Points
The RUD Starpoint Eyebolt is a premium, high-strength lifting point engineered in Germany for safe, efficient, and flexible load handling in demanding industrial environments. Unlike conventional fixed eyebolts, it features a 360° rotating body and a lifting ring that pivots up to 180°, automatically aligning with the direction of the load to reduce side loading, bending stress, and thread damage.
Manufactured from high-tensile forged alloy steel, each unit offers an excellent working load limit (WLL) relative to its size and is clearly marked for easy inspection and compliance. Tested and certified to international EN and DGUV standards, the patented Starpoint design delivers reliable performance, improved operational safety, and longer service life, even under dynamic and multi-directional lifting conditions.

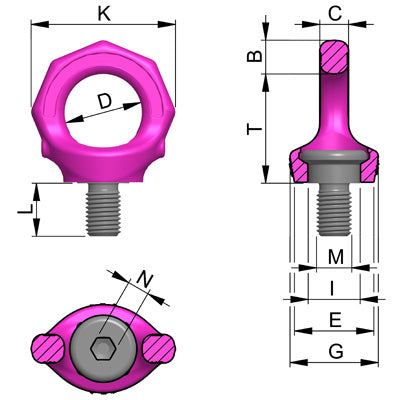

| Type | WLL (t) | Weight (kg) | T (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | K (mm) | L (mm) | M | N (mm) | Torque (Nm) | Ref No. |
| VRS-G 1/4" | 0.75 | 0.2 | 42 | 13 | 10 | 30 | 30 | – | 38 | 56 | 18 | G 1/4" | 8 | 25 | 7999269 |
| VRS-G 1/2" | 0.75 | 0.3 | 52 | 13 | 10 | 30 | 35 | 30 | – | 56 | 20 | G 1/2" | 8 | 25 | 7998682 |
| VRS-G 3/4" | 1.5 | 0.53 | 61 | 15 | 13 | 35 | 42 | 36 | – | 65 | 23 | G 3/4" | 10 | 60 | 7998880 |
| VRS-G 1" | 1.5 | 0.5 | 61 | 15 | 13 | 35 | 47 | 41 | – | 65 | 32 | G 1" | 10 | 60 | 7999163 |
| VRS-G 1-1/4" | 1.5 | 1 | 64 | 15 | 13 | 35 | 58 | 50 | – | 65 | 40 | G 1-1/4" | 10 | 60 | 7903732 |
| VRS-G 2" | 1.5 | 1.5 | 64 | 15 | 13 | 35 | 81 | 70 | – | 65 | 45 | G 2" | 10 | 100 | 7999164 |
| VRS-G 2" | 2.3 | 1.9 | 73 | 17 | 16 | 40 | 81 | 70 | – | 76 | 45 | G 2" | 12 | 115 | 7900433 |
| VRS-G 3" | 1.5 | 3.3 | 64 | 15 | 13 | 35 | 115 | 100 | – | 65 | 45 | G 3" | 10 | 100 | 7905324 |
