SCH-W Sluice Gate Jacks

From: £734.77Ex. VAT ~~£816.41~~

Sluice gate systems are used primarily in water power, agriculture and plant engineering.

Capacity 1500 - 10000 kg
Lift height 800 - 1000 mm
Available with Sikefu or Siku crank options

On Sale

SIFEKU Spring Loaded Safety Crank

From: £118.50Ex. VAT ~~£131.67~~

Cast aluminium crank with folding handle.

Capacity 1500 - 5000 kg
Length of crank 250 mm
14 or 17 mm square drive

Total: £0.00

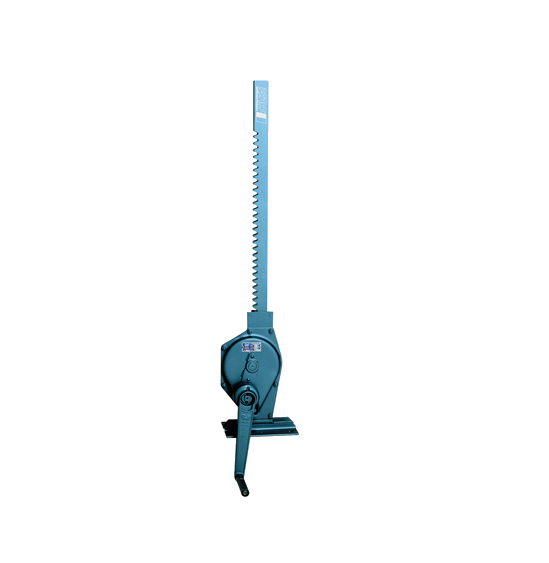

SCH-W Sluice Gate Jacks

Capacities 1500 - 10000kg

Sluice gate systems are used primarily in water power, agriculture and plant engineering. Different crank types and layouts present hundreds of possible arrangements.

Spring loaded safety crank provides pressure when required.
10000kg model supplied with a SIKU crank, others supplied with a SIFEKU crank.
Slide lacquer treated racks.
Spur gear with formed gearwheels.
Precisely milled crank gear.

Options:

Extended rack lengths.
Galvanised finish.

Model	Art.-No.	safety crank	Tensile or pressure load 1	Rack length	Lift	Hand effort at WLL	Weight
SCH-W 15	40051714	Sifeku	1500	1200	800	28	18
SCH-W 30	40051717	Sifeku	3000	1250	800	28	23
SCH-W 50	40051720	Sifeku	5000	1350	900	28	32
SCH-W 100	40051722	Siku	10000	1550	1000	40	56

1 - The pressure force is reduced with a larger lift (loading case II to Euler)

Model		Sifeku	Sifeku	Sifeku	Siku
A	mm	35	45	50	60
B	mm	25	30	40	50
C	mm	140	160	145	165
D	mm	85	60	45	65
E	mm	125	204	189	235
F	mm	78	92	100	112
G	mm	175	230	260	320
H	mm	310	395	400	480
I	mm	33.5	39.5	51	59
J	mm	43.3	53.1	69.5	88.3
K	mm	121	138	81	84
L	mm	230	230	230	290
M	mm	90	90	90	115
N	mm	153	158	173	183
O	mm	52.5	55	61	66
P	mm	52.5	55	64	70
Q	mm	14	14	14	14
R	mm	7	7	7	8
S	mm	76.5	85.5	88	100
T	mm	100.5	108.5	120	140
U	mm	113	121	132	185
V	mm	86	94	105	N/A
W	mm	136	144	155	N/A
X	mm	130	130	130	250
Y	mm	250	250	250	300
