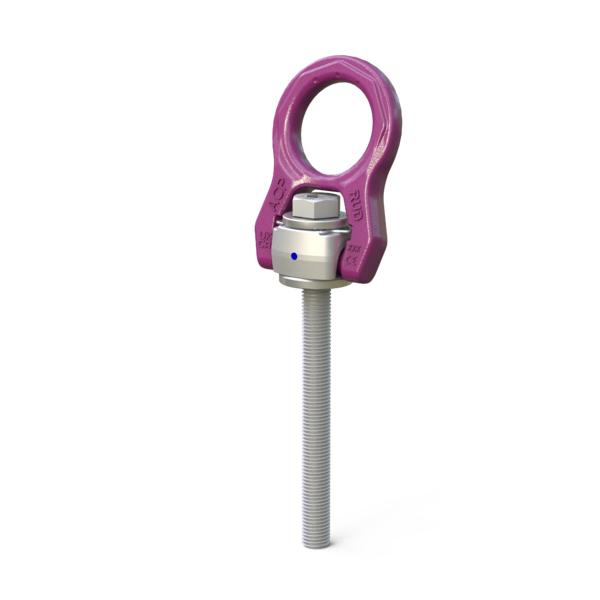

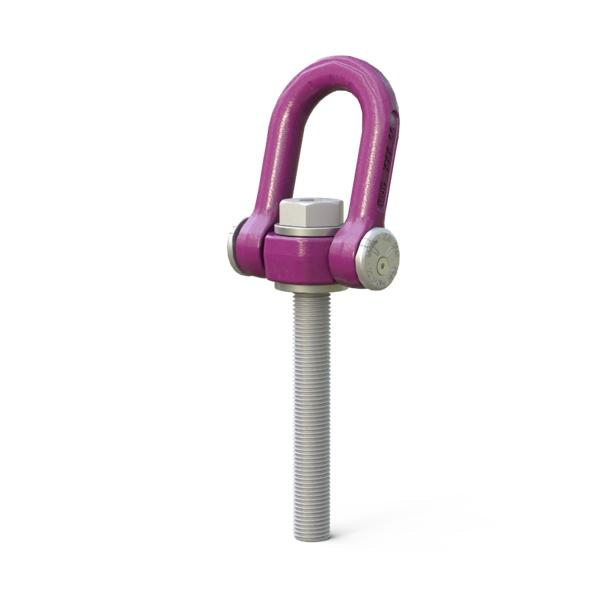

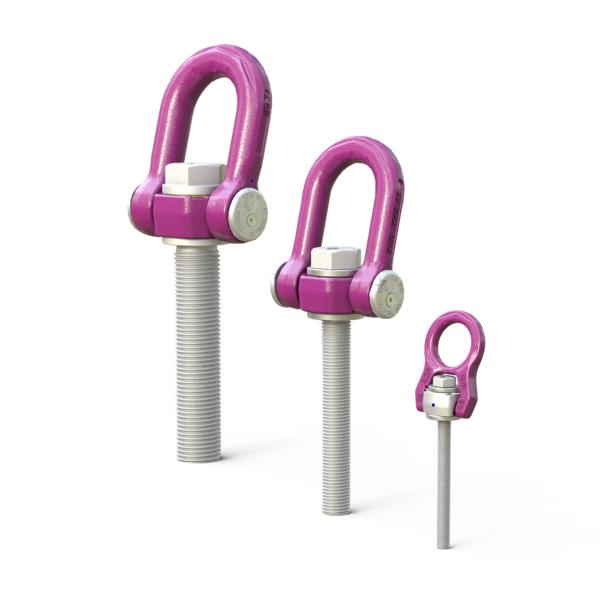

RUD ACP-TURNADO, UNC thread, Long Shank Eyebolt

Frequently bought together

On Sale

RUD ACP-TURNADO, UNC thread, Long Shank Eyebolt

From: £93.70Ex. VAT ~~£104.11~~

The RUD ACP-TURNADO is an innovative, high-capacity swivel lifting point featuring a unique spring mechanism that automatically aligns the lift ring with the load's force, preventing kinking and ensuring safe lifting from any direction with higher Working Load Limits (WLL) than standard hoist rings.
- Innovative spring mechanism – prevents the lift bail from stopping with transverse load.

- Swivel joint in the lifting ring axis.

- Wear lenses for checking discard criteria.

- Integrated RFID transponder to make checks easier.

- Safety factors 4:1 and 5:1.

5.3 Tonne Yoke Grade 10 8mm Four Leg Chain Sling

On Sale

Hire Me

5.3 Tonne Yoke Grade 10 8mm Four Leg Chain Sling

From: £221.13Ex. VAT ~~£245.70~~

Yoke chain slings are high-performance lifting slings designed for heavy-duty lifting and rigging applications. Designed for demanding industrial environments such as construction, manufacturing, offshore, and logistics

- Chain Diameter: 8mm

- Number of Legs: 4

- Safe Working Load: 5.3 Tonne

- Supplied with Relevant Certificates

Total: £0.00

ACP Turnado, UNC thread, long shank

The RUD ACP-TURNADO is an innovative, high-capacity swivel lifting point featuring a unique spring mechanism that automatically aligns the lift ring with the load's force, preventing kinking and ensuring safe lifting from any direction with higher Working Load Limits (WLL) than standard hoist rings. Key details include metric threads, 360° rotation, 180° pivot, integrated RFID for digital tracking, wear indicators, and superior strength for industrial use, available in standard or max-length bolt versions.

No kinking
Unique spring mechanism that guides the lifting ring into the direction of the best lifting angle
Higher working load limits (WLL) compared to hoist rings of the same size
Enhanced shape and strengthened at its most stressed areas

ACP_EN_7911875_V10_FG.pdf

Type	WLL	Weight (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	Fmax (mm)	G (mm)	H (mm)	K (mm)	L (mm)	Lmax (mm)	M (SW)	N (SW)	I (SW)	T (mm)	Torque (Nm)	Vario
ACP 1/2"	1.35t	0.39	–	11	10.5	38	30	18	124.4	28	54	58	46	152.4	1/2"	5/16"	3/4"	83	80	8600632
ACP 5/8"	2.5t	0.88	–	14	14	50	40	22	148.5	36	68	76	58	184	5/8"	3/8"	15/16"	107	150	8600634
ACP 3/4"	4t	1.41	–	17	17	50	45	25.5	185	43.5	81	89	69	228.6	3/4"	1/2"	1 1/8"	118	300	8600636
ACP 1"	6.3t	3.22	–	23	23	66	60	36	199	55	105.5	121	91	254	1"	9/16"	1 1/2"	154	500	8600638
ACP 1 1/4"	8t	5.77	–	29	27	76	75	46.5	271	68.5	134.5	148	115	339.5	1 1/4"	5/8"	1 7/8"	183	800	8600640
ACP 1 1/2"	14t	7.3	106	32	32	82	70	48	287	60	131	168	108	347	1 1/2"	7/8"	2 1/4"	189	800	8600643

On Sale

RUD ACP-TURNADO, UNC thread, Long Shank Eyebolt

From: £93.70Ex. VAT ~~£104.11~~

Est. lead time to dispatch: Same Day Before 1pm

- Swivel joint in the lifting ring axis.

- Wear lenses for checking discard criteria.

- Integrated RFID transponder to make checks easier.

- Safety factors 4:1 and 5:1.

THREAD SIZE | SHANK LENGTH | CAPACITY | CODE
