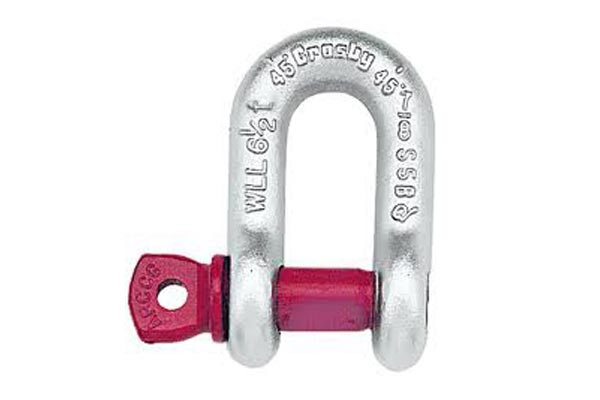

Crosby G-210 Dee Shackle (Screw Pin)

The G-210 Dee Shackle (Screw Pin) is a high-quality forged lifting shackle designed for reliable performance in lifting, rigging, and load-securing applications. Manufactured from high-strength alloy steel and finished with a durable hot-dip galvanised coating, it provides excellent strength and corrosion resistance for demanding working environments.

The screw pin design allows for quick and easy installation and removal, making this shackle ideal for applications where frequent connection and disconnection is required. The wide bow profile accommodates multiple slings while maintaining correct load distribution.

We stock these G-210 screw pin shackles, available for immediate supply and suitable for construction, marine, offshore, and general engineering use.

Capacities 1/2 thru 55 metric tons, grade 6.
Forged - Quenched and Tempered, with alloy pins.
Working Load Limit and grade “6” permanently shown on every shackle.
Sizes 7/16 inch and above are hot dip galvanized.
Sizes 3/8 inch and below are mechanically galvanized.
Fatigue rated.
Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification. Proof testing and certification available when requested at the time of order, charges will apply.
Approved for use at -40° C (-40° F) to 204° C (400° F).
Can meet charpy requirements of 42 Joules(31 ft•lbf) avg. at -20° C (-4° F) upon special request.
Meets or exceeds all requirements of ASME B30.26.
Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and ABS Guide for Certification of Lifting Appliances available. Certificates available when requested at time of order and may include additional charges.
Look for the Red Pin®. . . the mark of genuine Crosby quality.
Meets the performance requirements of Federal Specification RR-C-271G, Type IVB, Grade A, Class 2, except for those provisions required of the contractor.
Maximum Proof Load is 2 times the Working Load Limit. Minimum Ultimate Strength is 6 times the Working Load Limit.
Maximum Proof Load is 2 times the Working Load Limit. Minimum Ultimate Strength is 6 times the Working Load Limit.

Nominal Size (inch)	Working Load Limit (kg)	SKU	Weight (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	K (mm)	L (mm)	M (mm)	Tolerance +/- (G)	Tolerance +/- (A)
1/4	500	1019150	0.05	11.9	7.85	6.35	6.35	24.6	15.5	22.4	40.4	4.85	35.1	1.50	1.50
5/16	750	1019178	0.08	13.5	9.65	7.85	7.85	29.5	19.1	26.2	48.5	5.60	42.2	1.50	1.50
3/8	1000	1019196	0.13	16.8	11.2	9.65	9.65	35.8	23.1	31.8	58.5	6.35	51.5	3.30	1.50
7/16	1500	1019212	0.20	19.1	12.7	11.2	11.2	41.4	26.9	36.6	67.5	7.85	60.5	3.30	1.50
1/2	2000	1019230	0.27	20.6	16	12.7	12.7	46	30.2	41.4	77	9.65	68.5	3.30	1.50
5/8	3250	1019258	0.57	26.9	19.1	15.7	16	58.5	38.1	51	95.5	11.2	85	3.30	1.50
3/4	4750	1019276	1.20	31.8	22.4	20.6	19.1	70	46	60.5	115	12.7	101	6.35	1.50
7/8	6500	1019294	1.43	36.6	25.4	24.6	22.4	81	53	71.5	135	12.7	114	6.35	1.50
1	8500	1019310	2.15	42.90	28.7	25.4	25.4	93.5	60.5	81	151	14.2	129	6.35	1.50
1-1/8	9500	1019338	3.06	46	31.8	31.8	28.7	103	68.5	91	172	16	142	6.35	1.50
1-1/4	12,000	1019356	4.11	51.5	35.1	35.1	31.8	115	76	100	191	17.5	156	6.35	3.30
1-3/8	13,500	1019374	5.28	57	38.1	38.1	35.1	127	84	111	210	19.1	174	6.35	3.30
1-1/2	17,000	1019392	7.23	60.5	41.4	41.1	38.1	137	92	122	230	20.6	187	6.35	3.30
1-3/4	25,000	1019418	12.1	73	51	54	44.5	162	106	146	279	25.4	231	6.35	3.30
2	35,000	1019436	19.2	82.5	57	60	51	184	122	172	312	31	263	6.35	3.30
2-1/2	55,000	1019454	32.5	105	70	66.5	66.5	238	145	203	377	35.1	330	6.35	3.30
