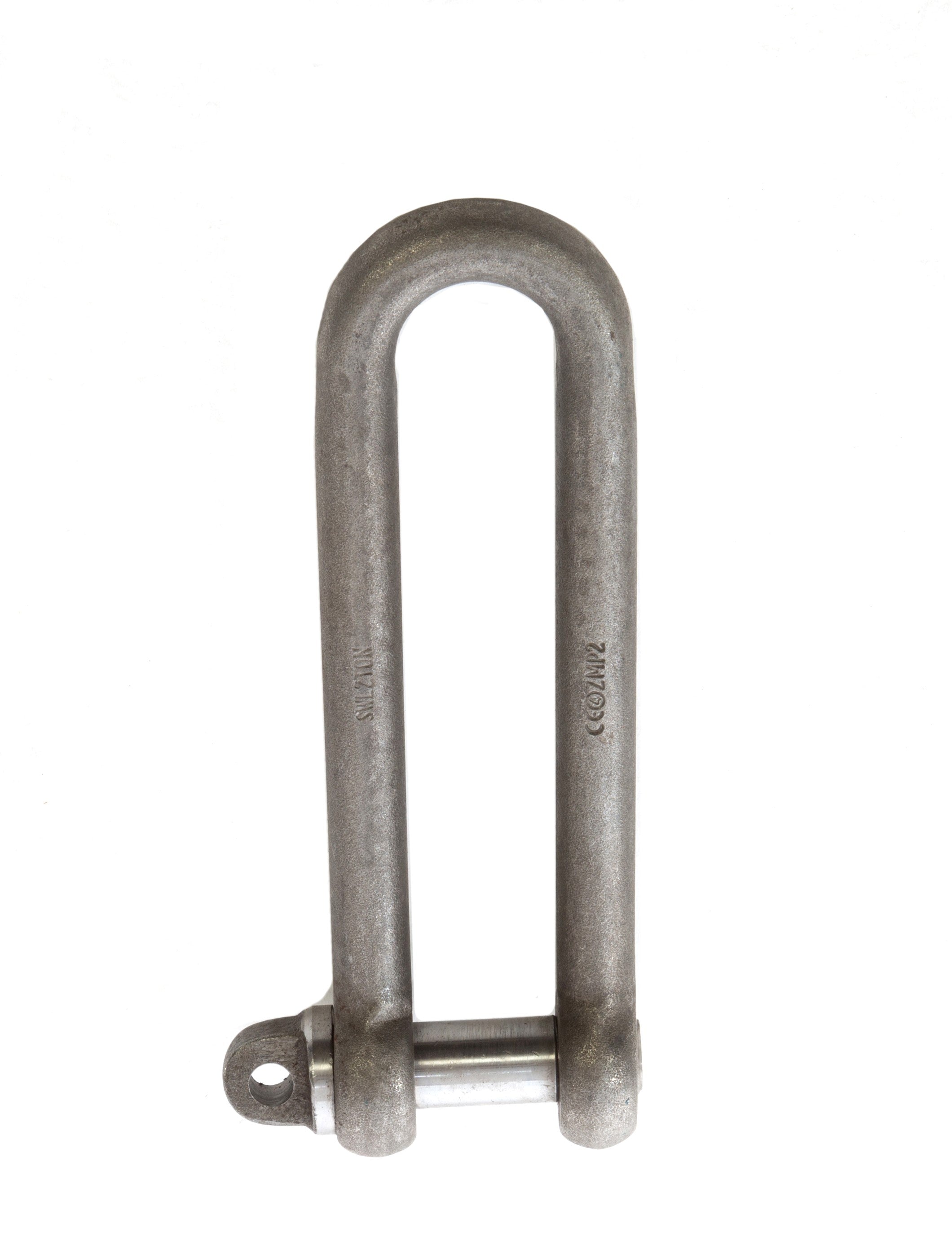

Piling Shackle
A Piling Shackle is a robust lifting accessory designed for heavy-duty applications where strength, reliability, and safety are critical. Commonly used in construction, civil engineering, and piling operations, this shackle provides a secure connection between lifting equipment and loads under demanding conditions.
Manufactured from high-strength alloy steel and finished for durability, piling shackles are engineered to withstand high loads while maintaining excellent resistance to wear and deformation. Each shackle is proof tested and clearly marked with its Working Load Limit (WLL) for easy identification and compliance on site.
| Working Load Limit | Diameter Bow | Diameter Pin | Diameter Eye | Inside Wdth | Inside Length | Weight Each |
|---|---|---|---|---|---|---|
| a | b | c | d | e | ||
| t | mm | mm | mm | mm | mm | kg |
| 1.00 | 13 | 16 | 32 | 22 | 152 | 0.55 |
| 1.50 | 16 | 19 | 38 | 32 | 203 | 0.95 |
| 2.00 | 19 | 22 | 45 | 38 | 203 | 1.64 |
| 3.00 | 22 | 25 | 50 | 45 | 254 | 2.29 |
| 3.75 | 25 | 28 | 57 | 50 | 254 | 3.40 |
| 5.00 | 28 | 32 | 64 | 54 | 305 | 5.05 |
You can hire this product
Not ready to make the commitment? Looking for this exact model? We usually have it available in our large hire fleet. If not, we’ll source a suitable alternative for your project.
