TZL and TZR Load Indicators with digital display

From: £1,696.77Ex. VAT ~~£1,996.20~~

The TZL and TZR Tigrip Load Indicators are a mechanical measuring instrument with electronic display. It's an economical choice for various applications as a conventional crane weigher or to measure forces.

Measuring range 0 - 100 t
TZR comes with radio remote control
Available with hook or shackle connection

Hire Me

Green Pin® Bow Shackle SC - Standard bow shackle with screw collar pin

From: £3.05Ex. VAT

Hire from £2.20

The Green Pin®Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long term durability

Total: £0.00

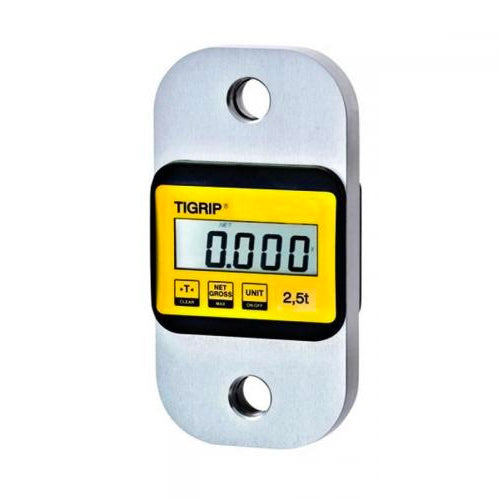

TZL and TZR Load indicator with digital display

Measuring range 0 - 100 t

TZL and TZR

TZL with digital display
TZR with digital display and radio control
Can be used in conjunction with shackles and hooks.
The load indicator is provided with liquid crystal display (LCD), which can tare as well as show either the gross or the net load.
Able to indicate overload at 110% of the rated capacity and the status of the battery.
High accuracy
Easy-to-read display
Lightweight easy to use robust design.
Retains the peak value to memory.
The battery capacity provides for around 200 operating hours.
Automatic setting to zero when load indicator is switched on.
Display of maximum weight (gross/net).
Display of measuring units on the load indicator.
Measuring units kg, t, lbs, to, kN.
Automatic stand-by for a prolonged battery lifetime.
Easy to change batteries.
Warning if batteries are low.
Overload warning.

TZR Additional Features:

TZR load indicator has the same features like the model TZL plus.
Remote control and data exchange via radio transmission.
USB interface
Accumulation memory

TZL OPTIONS:

Can be used with rechargeable batteries (not included).

TZL SCOPE of DELIVERY:

Load indicator
4 x 1.5 V AA batteries
Carrying case
Test certificate
Without shackles and hooks

TZR SCOPE of DELIVERY:

Load indicator
Remote control with display
7 x 1.5V AA batteries
Carrying case
Test certificate
Without shackles and hooks
PC cable
User software

Model	TZL 2.5	TZL 5.0	TZL 10.0	TZL 20.0	-	-	-
Model	-	-	TZR 10.0	TZR 20.0	TZR 35.0	TZR 50.0	TZR 10.0
Art.No. TZL	N53808324	N53808325	N53808326	N53808327	-	-	-
Art.No. TZL shackles	CM851A	N42000064	N42000069	N42000069	-	-	-
Art.No. TZL hooks	N53818351	N53818352	N53818322	N53818324	-	-	-
Art.No. TZR	-	-	N53808333	N53808335	N53808336	N53808337	N53808338
Art.No. TZR shackles	-	-	N42000069	N42000069	N42000071	N42000072	N42000075
Art.No. TZR hooks	-	-	N53818322	N53818324	N53818326	N53818328	N53818330
Measuring range, t	0-2.5	0-5.0	0-10.0	0-20.0	0-35.0	0-50.0	0-100.0
Nominal load, t	2.5	5.0	10.0	20.0	35.0	50.0	100
Limit load, t	2.75	5.5	11	22	38.5	55	110
Breaking load, t	≥10	≥20	≥40	≥80	≥140	≥200	≥400
Weight without lifting accessories, kg	1.7	2.1	3.9	6.8	9.4	14.4	39.3
Accuracy of the end vaule	0.2%	0.2%	0.2%	0.2%	0.2%	0.2%	0.2%
Resolution step, kg (partition)	1.0	1.0	10.0	10.0	10.0	10.0	50
Operation time, approx. h	200
Temperature range (operation)	-10°C up to +50°C
Temperature range (storage)	-20°C up to +70°C
Protection	IP 54
Display (LCD 20.5 mm high)	4 1/2 digits
Tare range	100% of rated capacity
Overload warning	Overload warning at 110% of the rated capacity

Model	TZL 2.5 -	TZL 5.0 -	TZL 10.0 TZR 10.0	TZL 20.0 TZR 20.0	- TZR 35.0	- TZR 50.0	- TZR 100.0
A, mm	233	250	325	378	405	450	640
B, mm	118	118	118	141	156	180	260
C, mm	22	27	48	55	66	76	100
D, mm	173	180	213	233	245	264	380
E, mm	19	215	22	32	47	55	80
G, mm	25	305	47	57	67	77	99
H, mm	422	451	644	742	842	942	113
J, mm	604	610	690	780	1000	1170	-
K, mm	34	50	105	92	130	140	300
L, mm	38	44	95	95	114	132	238
M, mm	16	19	35	35	44	51	89
N, mm	25	32	50	70	110	115	-
O, mm	23	37	63	80	123	132	-
P, mm	17	28	44	57	90	97	-
Q, mm	309	315	535	562	665	730	1240
