Wireless Load Link Indicator – Radiolink plus

Name: Wireless Load Link Indicator – Radiolink plus
Brand: Straightpoint
SKU: RLP1T-1-13
Price: 2995.0 GBP
Availability: InStock

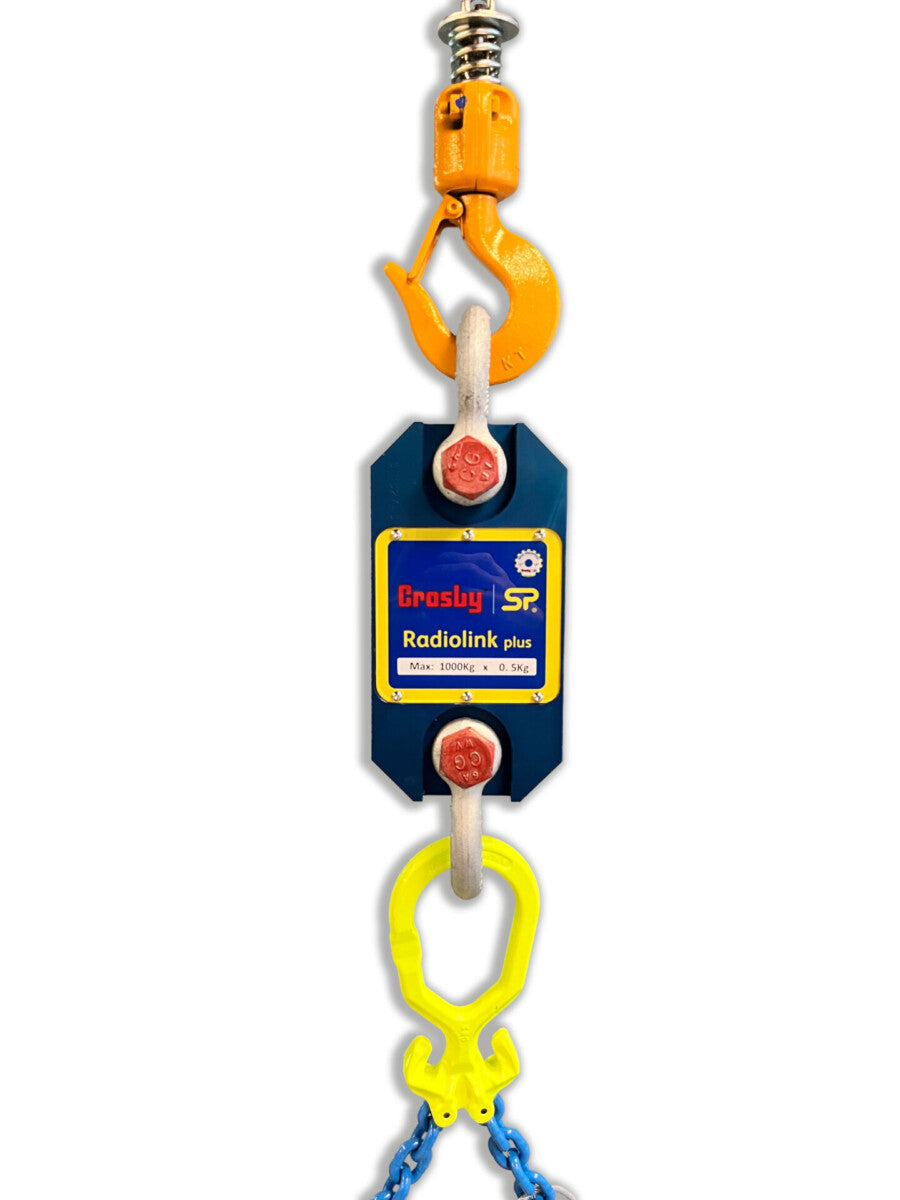

Radiolink plus is designed to be rigged with Crosby standard shackles - DNV-GL type approved wireless tension load cell capable of weighing and dynamic load monitoring in capacities from 1t to 500t – from stock with an ATEX and IECEx version available for hazardous areas, zones 0,1&2.
- Long range 2.4GHz version providing industry leading wireless range of 700m or 2300ft to SP's SW-HHP handheld or.
- Bluetooth output and can be connected to any smart phone running our free HHP app on iOS or Android at ranges up to 100m or 328ft.

Two versions of the RLP are available:

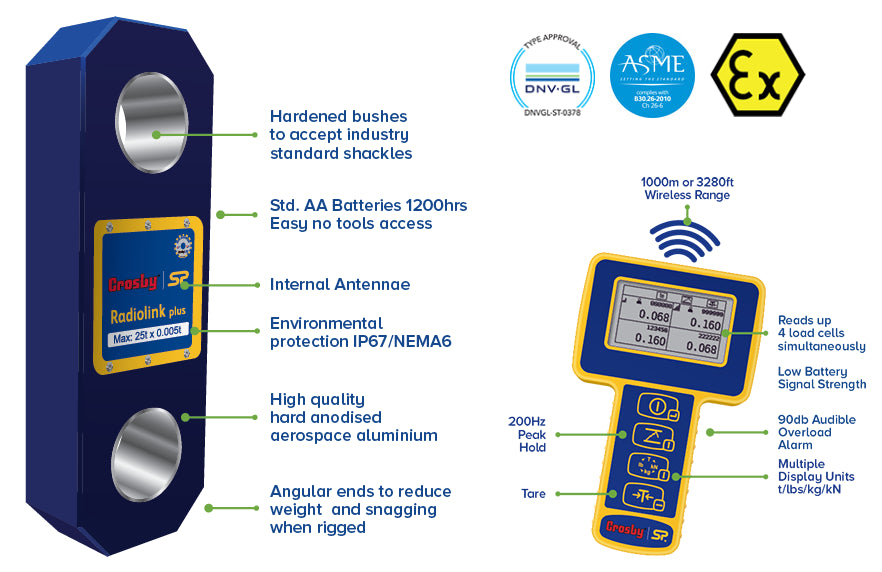

Constructed from high quality aerospace grade aluminium it features an advanced internal design structure. This design not only provides the product with an unrivalled strength to weight ratio but it also allows the use of a separate internal sealed enclosure providing the load cell's electronic components with IP67 or NEMA6 environmental protection even with the battery cover plate missing, making this industry leading dynamometer even more suitable for use in the harshest environments.

The versatile RLP is supplied with an update rate of 3Hz and can be easily configured to run at industry leading speeds of up to 200Hz making it ideal for dynamic force measurement.

Decades of development into this product include many stand out features such as SP's unique strain gauging method that helps compensate for wire rope torque when the Radiolink is loaded. The Radiolink plus tension load cell can also be used in combination with high speed wireless data logging software allowing for simultaneous control, display and real time data logging of up to 100 Straightpoint wireless load cells.

A full array of wireless accessories are also available including signal boosters, LED wireless scoreboards and base stations with analogue (4-20mA, 0-10v, 0-5v) or digital (RS232/485, Modbus RTU, and ASCII) outputs.

Capable of weighing and dynamic load monitoring in capacities from 1t to 500t.
Constructed of lightweight, aerospace grade aluminium.
Environmentally sealed to IP67 or NEMA6.
Frequency: Proprietary 2.4 GHz wireless.
Update rate of 3Hz and can be easily configured to run at industry-leading speeds of up to 200Hz.
Remote on/off from handheld display or software.
ATEX Zones 0, 1 & 2 available.
Design validated by FEA.
2-year warranty.
DNV-GL Type Approval.
Complies with ASME B30.26.
Bluetooth option is available and is supplied with a free HHP app for iOS and Android.
Battery Type: Handheld 2 x AA / Loadcell 4 x AA.
Battery Life: Handheld - 40 hours / Loadcell 1200 hours continuous (Loadcell 500 hours if Bluetooth).
Display Type: 240 x 128 pixel Multi-line dot matrix with backlight.
Operating Temperature: -10°C to +50°C.
Accuracy: ±0.1% of full scale.
System Range (max): 1,000 m (100 m if Bluetooth), (500 m if ATEX/IECEx).

Part Number	RLP1T	RLP2T5	RLP6T5	RLP12T	RLP25T	RLP35T	RLP55T	RLP75T	RLP100T	RLP150T	RLP200T	RLP250T	RLP300T	RLP500T
Capacity	1000kg	2.5te	6.5te	12te	25te	35te	55te	75te	100te	150te	200te	250te	300te	500te
Capacity	2200lb	5500lb	14300lb	26000lb	55000lb	77000lb	120000lb	165000lb	220000lb	330000lb	440000lb	550000lb	660000lb	1100000lb
Resolution	0.5kg	0.001te	0.001te	0.002te	0.005te	0.005te	0.01te	0.01te	0.05te	0.05te	0.1te	0.1te	0.1te	0.1te
Resolution	1lb	2lb	2lb	5lb	10lb	10lb	20lb	20lb	100lb	100lb	200lb	200lb	200lb	200lb
Units	kg	te	te	te	te	te	te	te	te	te	te	te	te	te
Units	lb	lb	lb	lb	lb	lb	lb	lb	lb	lb	lb	lb	lb	lb
Weight	1.5kg	1.5kg	2.4kg	3.7kg	5kg	8.6kg	13kg	16kg	34kg	46kg	82kg	82kg	118kg	193kg
Weight	3.3lb	3.3lb	5.3lb	8.2lb	11lb	19lb	28.7lb	35.3lb	75lb	101.4lb	180.8lb	180.8lb	260lb	425lbs
Safety Factor	12.1	7:1	7:1	7:1	5:1	5:1	5:1	5:1	5:1	4:1	5:1	4:1	5:1	5:1
Battery Type	Handheld-2 x AA / Loadcell 4 x AA
Battery Life	Handheld-60Hrs / Loadcell 1200Hrs continuous
Display Type	6 digit 25mm LCD
Operating Temp	-10 to +50 °C
Accuracy	±0.1% full scale
Frequency	2.4GHz
Range	700 metres / 2300 feet (100m/328ft if Bluetooth)
Data Rate	3Hz - up to 200Hz can be ordered for dynamic load monitorning applications
Protection	IP67
Protection	NEMA6
Dimension A	204	204	249	305	340	393	424	470	608	670	700	700	806	930
Dimension A	8.03	8.03	9.80	12.01	13.39	15.47	16.69	18.50	23.94	26.38	27.56	27.56	31.73	36.61
Dimension B	43	43	43	47	60	75	75	75	99	99	144	144	150	150
Dimension B	1.69	1.69	1.69	1.85	2.36	2.95	2.95	2.95	3.90	3.90	5.67	5.67	5.91	5.91
Dimension C	104	104	113	113	115	126	180	202	255	303	350	350	426	570
Dimension C	4.09	4.09	4.45	4.45	4.53	4.96	7.09	7.95	10.04	11.93	13.78	13.78	16.77	22.44
Dimension D	146	146	165	193	215	225	230	260	320	360	350	350	350	450
Dimension D	5.75	5.75	6.50	7.60	8.46	8.86	9.06	10.24	12.60	14.17	13.78	13.78	13.78	17.72
Dimension ØE	24.5	24.5	38	47.5	55	60	76	76	109	109	145	145	160	200
Dimension ØE	0.96	0.96	1.50	1.87	2.17	2.36	2.99	2.99	4.29	4.29	5.71	5.71	6.30	7.87
Dimension F	48	48	66	Not relevant in this capacity
Dimension F	1.89	1.89	2.60
Dimension G	19	19	32
Dimension G	0.75	0.75	1.26
Crosby Shackle	G2130						G2140							G2160
Loading Pin Ø	19	19	25	35	51	57	57	70	83	95	121	127	152	180
Loading Pin Ø	3/4"	3/4"	1"	1 3/8"	2"	2 1/4"	2 1/4"	2 3/4"	3 1/4"	3 3/4"	4 3/4"	5"	6"	7 1/8"
