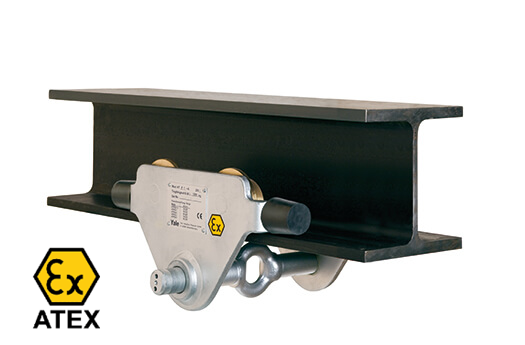

ATEX HTP Push Travel Trolley

Capacities: 500 - 5000 kg

The trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment

Capacity: 500 - 50000 kg

It has excellent rolling features due to machined steel wheels mounted on prelubricated, encapsulated ball bearings.
Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB).
Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis – no creeping to the left or the right (up to 5000kg capacity, from 8000kg upwards the traverse is adjusted via sleeves and washers).
The trolley wheels are designed for a maximum beam profile incline of 14% (DIN 1025 - part 1).

ATEX HTP Push Travel Trolley

Model	Art-No.	Capacity (kg)	Size	Beam flange width b (mm)	Beam flange thickness t max (mm)	Curve radius min M	Weight (kg)	Weight with locking device (kg)
HTP 500	N05100054	500	A	50–220	25	0.9	8	14.5
HTP 1000	N05100055	1000	A	50–220	25	0.9	9	17
HTP 2000	N05100056	2000	A	66–220	25	1.15	16	24
HTP 500	N05100057	500	B	160–300	40	0.9	10.6	17.1
HTP 1000	N05100058	1000	B	160–300	40	0.9	12	20
HTP 2000	N05100059	2000	B	160–300	40	1.15	19.3	27.3

Dimensions	HTP 500-A	HTP 1000-A	HTP 2000-A	HTP 3000-A	HTP 5000-A	HTP 500-B	HTP 1000-B	HTP 2000-B	HTP 3000-B	HTP 5000-B
A, mm	77	82.5	98.5	114	132.5	92	97.5	113.5	129	147.5
D, mm	16	17	22	26	33	16	17	22	26	33
D1, mm	25	30	40	48	60	25	30	40	48	60
D2, mm	30	35	47	58	70	30	35	47	58	70
F1, mm	57.5	57.5	57.5	57.5	57.5	57.5	57.5	57.5	57.5	57.5
H1, mm	30.5	30.5	30.5	30	30	45.5	45.5	45.5	45	49.5
I (HTP), mm	71.5	71.5	95.5	131	142.5	71.5	71.5	95.5	131	142.5
L, mm	260	260	310	390	450	260	260	310	390	450
L1, mm	130	130	150	180	209	130	130	150	180	209
O, mm	60	60	80	112	125	60	60	80	112	125
P1, mm	168	168	168	168	168	168	168	168	168	168
P2, mm	146	150	155	160	167.5	177	177	177	180	187.5
L3, mm	346	346	396	476	556	346	346	396	476	556

On Sale

ATEX HTP Push Travel Trolley

Name: ATEX HTP Push Travel Trolley
Brand: Yale
Price: 303.73 GBP
Availability: InStock

From: £303.73Ex. VAT ~~£357.33~~

Est. lead time to dispatch: Same Day Before 1pm

The trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.

Capacity 500 - 50000 kg
Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB).
excellent rolling due to machined wheels mounted on prelubricated, ball bearings

Model | Beam Width | Capacity
