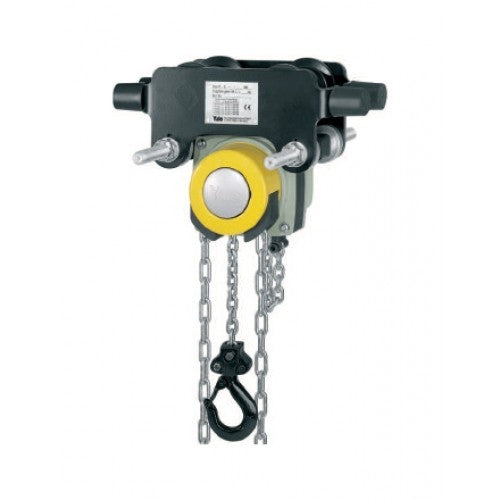

Yalelift 360® MK III ‘Integral’ Push Trolley Hoist Combined

Frequently bought together

On Sale

Yalelift 360 IT Hand chain hoist with integrated push or geared travel trolley

From: £442.30Ex. VAT ~~£520.35~~

The combination of the Yalelift 360 with a low headroom manual trolley provides even more flexibility in the application of the Yalelift 360.

Available with either push or geared travel trolley and optional chain container.

Capacity: 500 - 20000kg
Anti-drop and anti-tilt devices as standard
adjustment system of the trolley enables the simple and quick assembly due to adjusting nuts

Hire Me

Crosby G-209 Alloy Bow Shackle

From: £6.23Ex. VAT

Hire from £2.20

The Crosby G-209 Screw Pin Anchor Shackle is a trusted choice for lifting, rigging and load-securing applications across construction, industrial, marine and transport environments.

- Sizes available 0.33t to 55t

- Hot-dip galvanized

- Forged, Quenched & Tempered, with alloy pins

Total: £0.00

Hand chain hoist with integrated push or geared travel trolley

Capacities: 500 - 20000kg

The combination of the Yalelift 360 with a low headroom manual trolley provides even more flexibility in the application of the Yalelift 360.

Available with either push or geared travel trolley and optional chain container.

The specially developed chain reeving system and chain guide allow the bottom block to be pulled laterally to the hoist even further up and almost against the beam flange.
The integrated design of the innovative Yalelift LH uses the same manual trolleys as incorporated in the Yalelift IT series.
All units of this series up to a capacity of 3000 kg are built with a single chain fall.
The approved and almost stepless adjustment system of the trolley enables the simple and quick assembly due to adjusting nuts.
Trolleys up to 5 t capacity are offered for two beam ranges; range A for a flange width of up to 180 mm is standard and covers approx. 80 % of all applications. Conversion to range B for beam width up to 300 mm can be easily accomplished.
The trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 - part 1), excellent rolling features are guaranteed by pre-lubricated, encapsulated ball bearings.
The low headroom version of the Yalelift IT is adjustable to fit a wide range of beam profiles (e.g. INP, IPE, IPB).
Anti-drop and anti-tilt devices as standard.
Excellent rolling features due to machined steel wheels mounted on pre-lubricated, encapsulated ball bearings.

YaleLift_360_IT_-_Datasheet_English.pdf

Model	YLIT 500	YLIT 1000	YLIT 2000	YLIT 3000	YLIT 5000	YLIT 10000
A min., mm	245	272	323	382	550	784
A1, mm	158	178	205.5	252	260.5	380
A2, mm	–	–	–	–	–	–
B, mm	17	22	30	38	45	68
C, mm	24	29	35	40	47	68
D, mm	14	19	22	30	37	50
F (Geared trolley), mm	92	92	91	107	149.5	113
H1, mm	24.5	24	23.5	32	30.5	55
I (Push trolley), mm	71.5	71.5	95.5	131	142.5	169
I (Geared trolley), mm	76.5	76.5	98	132.5	148.5	169
L, mm	270	310	360	445	525	430
L1, mm	130	130	150	180	209	200
L2, mm	159	175	207	256	283	261
M	M18	M22	M27	M30	M42	M48
O, mm	60	60	80	112	125	150
P (Geared trolley), mm	108	110	112	112	117	158
T (Area A), mm	280	290	305	320	364	–
T (Area B), mm	400	410	425	440	484	540

Yalelift ITP Hand Chain Hoist with Integrated Push Trolley

Model	Art.-No.	Capacity (kg) / Chain falls	Size	Beam flange width b (mm)	Beam flange thickness t max. (mm)	Curve radius min. (m)	Weight at standard lift (3m) (kg)
YLITP 500	N04900044	500 / 1	A	50 - 180	19	0.9	20
YLITP 1000	N04900045	1000 / 1	A	50 - 180	19	0.9	27
YLITP 2000	N04900046	2000 / 1	A	58 - 180	19	1.15	44
YLITP 3000	N04900047	3000 / 1	A	74 - 180	27	1.5	77
YLITP 5000	N04900020	5000 / 2	A	98 - 180	27	2.0	125
YLITP 500	–	500 / 1	B	180 - 300	19	0.9	21
YLITP 1000	–	1000 / 1	B	180 - 300	19	0.9	29
YLITP 2000	–	2000 / 1	B	180 - 300	19	1.15	46
YLITP 3000	–	3000 / 1	B	180 - 300	27	1.4	79
YLITP 5000	–	5000 / 2	B	180 - 300	27	1.8	129

Yalelift ITP Hand Chain Hoist with Integrated Geared Trolley

Model	Art.-No.	Capacity (kg) / Chain falls	Size	Beam flange width b (mm)	Beam flange thickness t max. (mm)	Curve radius min. (m)	Weight at standard lift (3m) (kg)
YLITG 500	N04900056	500 / 1	A	50 - 180	19	0.9	24
YLITG 1000	N04900057	1000 / 1	A	50 - 180	19	0.9	32
YLITG 2000	N04900058	2000 / 1	A	58 - 180	19	1.15	49
YLITG 3000	N04900059	3000 / 1	A	74 - 180	27	1.5	82
YLITG 5000	N04900060	5000 / 2	A	98 - 180	27	2.0	130
YLITG 500	–	500 / 1	B	180 - 300	19	0.9	25
YLITG 1000	–	1000 / 1	B	180 - 300	19	0.9	33
YLITG 2000	–	2000 / 1	B	180 - 300	19	1.15	50
YLITG 3000	–	3000 / 1	B	180 - 300	27	1.4	84
YLITG 5000	–	5000 / 2	B	180 - 300	27	1.8	134
YLITG 10000	N04900061	10000 / 3	B	125 - 310	40	1.8	202
YLITG 20000¹	N04900055	20000 / 6	B	180 - 310	40	9.5	on request
