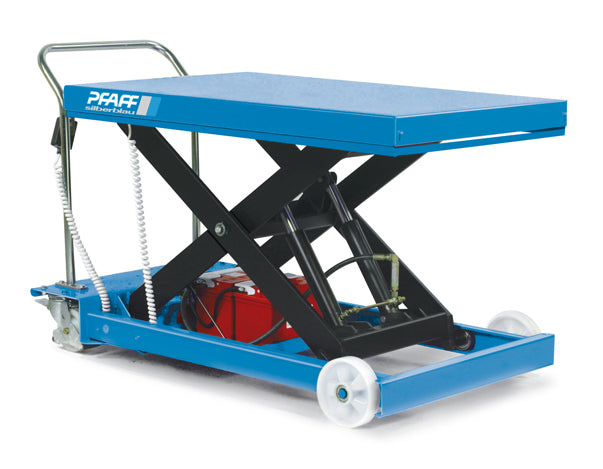

Pfaff HF/SM Scissor Lifting Platform - Electric Hydraulic

Scissor lift tables capacities: 300 - 1250kg

Platform height max. 1050mm

Workshop platform with electric hydraulic adjustable height, suitable for all manufacturing, packing and workshop applications.

• Electric hydraulic system with pedal – a main current connection is not required.

• High safety due to pressure relief and lowering valve.

• Robust single scissor construction, above 300 kg with solid steer scissor.

• Pivoting platform with mechanic adjustment for safe maintenance work.

• Compact design with low OAH.

• Steering and fixed rollers with service-free roller bearings. One steer roller can be locked in position for parking.

• According to DIN EN 1570-1 and machinery directive 2006/42/EG

pfaff_hx_de_en_fr_manual.pdf

Model	HF 030-084 SE	HF 050-090 SE	HF 080-105 SE	HF 100-105 SE	HF 125-105
Art.-No.	N24603084	N24605090	N24608105	N24610105	N24612105
Capacity, kg	300	500	800	1000	1250
Platform height max. h2, mm	840	900	1050	1050	1050
Platform height min. h1, mm	335	340	360	360	360
Stroke h3, mm	505	560	690	690	690
Overall length l1, mm	1130	1330	1650	2350	1650
Overall width b1, mm	500	610	860	1000	860
Platform length l, mm	840	1030	1350	2000	1350
Platform width b1, mm	500	610	840	1000	840
Tyre type ¹	PUR	PUR	PA	PA	PA
Service brake	manual	manual	manual	manual	manual
Number of strokes for max. lift	electric	electric	electric	electric	electric
Weight (with battery and battery charger), kg	120	158	270	397	278

1 - PA...Polyamide, PUR...Polyurethane
