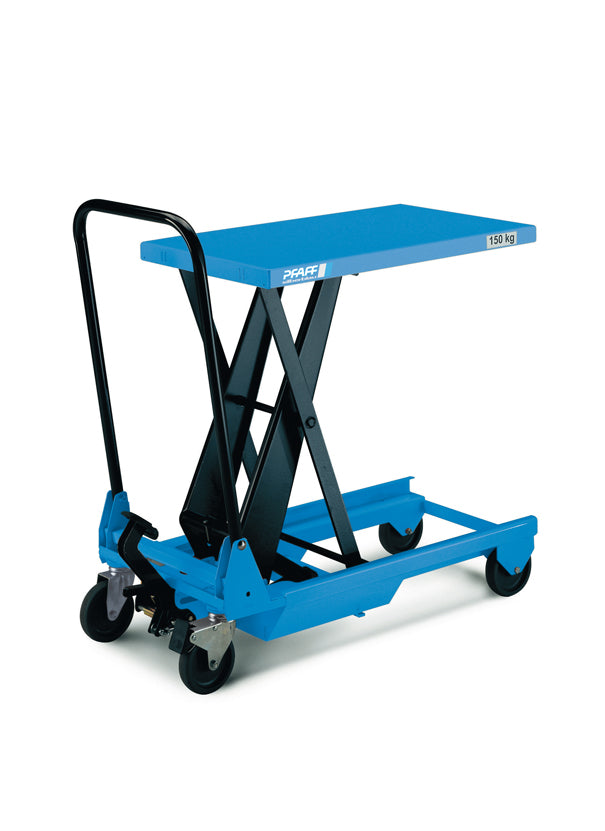

Pfaff HF/SM Scissor Lifting Platform - Manual Hydraulic

Scissor lift tables capacities: 150 - 1250kg

Platform height max. 1050mm

Workshop platform with manual hydraulic adjustable height, suitable for all manufacturing, packing and workshop applications..

• Manual hydraulic system with pedal

• High safety due to pressure relief and lowering valve.

• Robust single scissor construction, above 300 kg with solid steer scissor.

• Pivoting platform with mechanic adjustment for safe maintenance work.

• Compact design with low OAH.

• Steering and fixed rollers with service-free roller bearings. One steer roller can be locked in position for parking.

• According to DIN EN 1570-1 and machinery directive 2006/42/EG

pfaff_hx_de_en_fr_manual.pdf

Model	HF 015-078 SM	HF 030-084 SM	HF 050-090 SM	HF 080-105 SM	HF 100-105 SM	HF 125-105 SM
Art.-No.	N24501078	N24503084	N24505090	N24508105	N24510105	N24512105
Capacity, kg	150	300	500	800	1000	1250
Platform height max. h2, mm	780	840	900	1050	1050	1050
Platform height min. h1, mm	255	335	340	360	360	360
Stroke h3, mm	525	505	560	690	690	690
Overall length l1, mm	990	1050	1320	1650	2350	1650
Overall width b1, mm	450	500	610	860	1000	860
Platform length l, mm	760	840	1030	1350	2000	1350
Platform width b1, mm	450	500	610	840	1000	1350
Tyre type ¹	VG	PUR	PUR	PA	PA	PA
Service brake	manual	manual	manual	manual	manual	manual
Number of strokes for max. lift	14	18	29	40	80	80
Weight (with battery and battery charger), kg	41	83	109	222	286	230

1 - PA...Polyamide, PUR...Polyurethane, VG...Solid rubber
