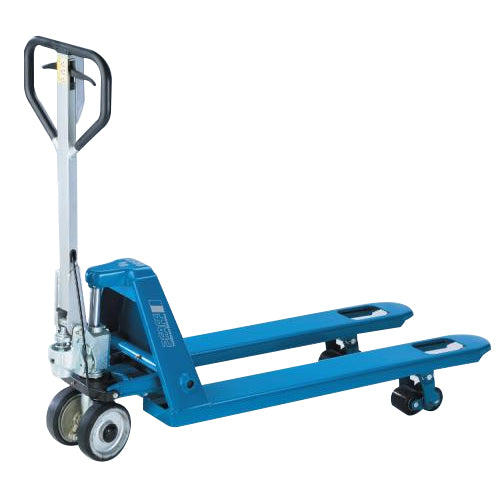

Pallet Truck with Driving and Parking Brake
Capacity 2500kg
The Pfaff PROLINE Parking Brake Pallet Truck is suitable for use on slopes and approach ramps where the pallet truck must be immediately brought to a safe standstill before the load becomes a danger. In order for this to happen the standard-type of our PROLINE is equipped with an efficient brake which is integrated in the special made aluminium rims.
| Model | HU 25-115 FBTP |
| Art.-No. | 34527135 |
| Capacity, kg | 2500 |
| Weight, kg | 86 |
| Tyre type ¹ | VG/PUR |
| Steering rollers, mm | 180 x 50 |
| Load rollers, mm | 82 x 70 |
| Stroke h3, mm | 115 |
| Height of control handle h14, mm | 1200 |
| Fork height lowered h13, mm | 85 |
| Fork width e, mm | 160 |
| Fork length l, mm | 1150 |
| Outside dimension of forks b1, mm | 540 |
1 PUR … Polyurethane, VG … Solid rubber
