ZWW-L and ZWW rack & pinion jacks

Capacity 300 - 10000 kg

Wall-mounted rack and pinion jacks are used for lifting, lowering, pulling and pushing of loads.

Robust steel design with precisely machined worm and spur gears for smooth and easy manual operation.
Solid steel rack with additional bore hole for fastening of the load.
Low wear owing to hardened gearing parts and precisely machined teething.
Up to 1200 kg lifting load for pushing or pulling loads are equal.
Tensile load in the standard version for the capacities 1500 kg – 10000 kg. Pressure load possible on request.
Rigid wall mounting.

Options

Improved corrosion protection owing to zinc-plating or special coating of rack.
Different rack length on request possible.
Symmetrical toothing for model ZWW on request possible.
Crank with folding handle for model ZWW-L suitable.

Model	Tensile or pressure load kg	Rack length mm	Lift mm	Hand effort at WLL daN	Weight kg	Art.-No.

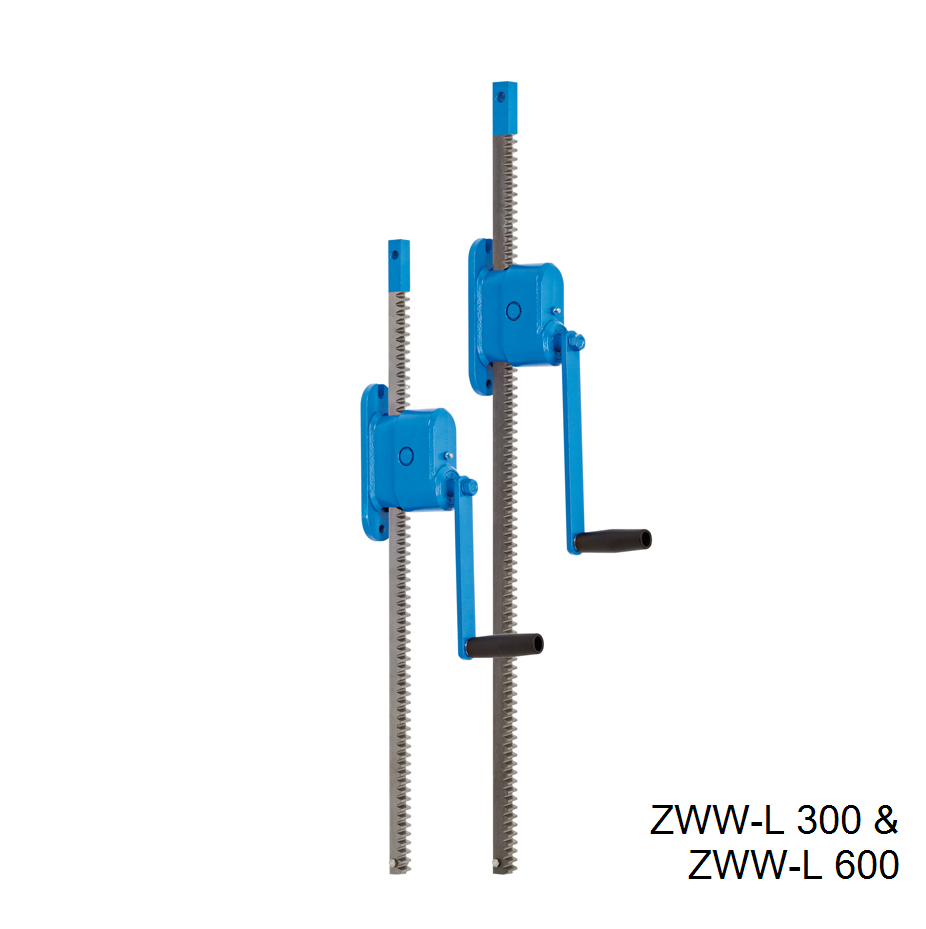

ZWW-L 300/400 1	300	600	400	10	5.4	N01905011
ZWW-L 600/400 1	600	600	400	15	6	N01905012
ZWW-L 300/600 1	300	800	600	10	5.9	N01905013
ZWW-L 600/600 1	600	800	600	15	6.5	N01905014

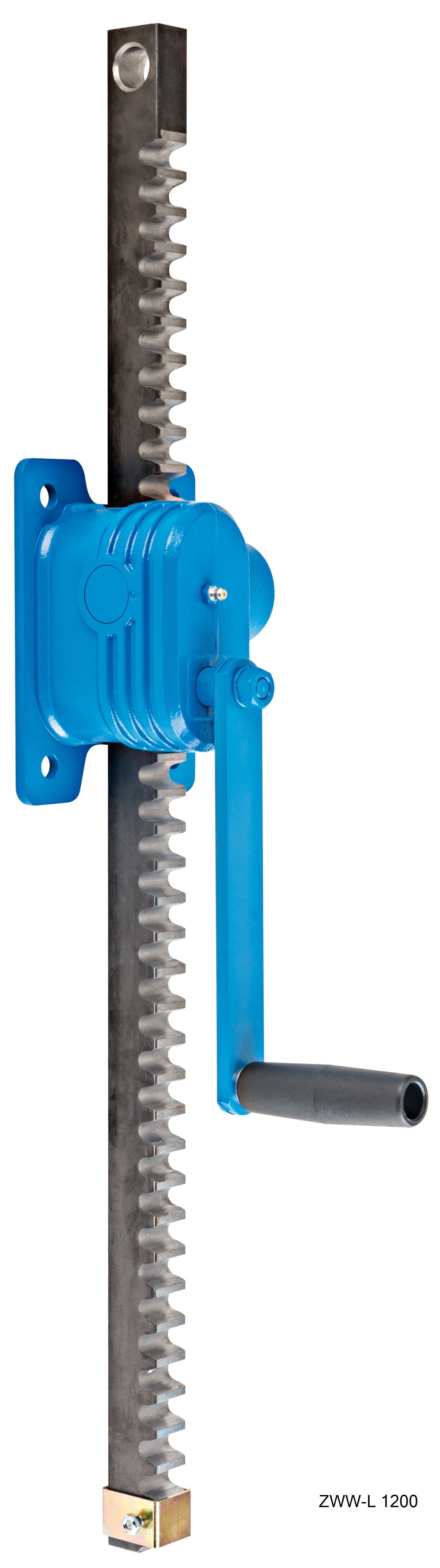

ZWW-L 1.200/600 1	1.2	800	600	14	8.9	N01905015
ZWW-L 300/800 1	300	1	800	10	6.4	N01905016
ZWW-L 600/800 1	600	1	800	15	7	N01905017
ZWW-L 1.200/800 1	1.2	1	800	14	10	N01905018
ZWW-L 600/1.000 1	600	1.2	1	15	7.5	N01905020
ZWW-L 1.200/1.000 1	1.2	1.2	1	14	11.3	N01905021
ZWW-L 600/1.200 1	600	1.4	1.2	10	6	N01905023
ZWW-L 1.200/1.4001	1.2	1.6	1.4	14	13,2	N01905025
ZWW 1.500/800 2	1.5	1.09	800	28	11	40055131
ZWW 3.000/565 2	3	975	565	28	19	40056138
ZWW 5.000/700 2	5	1.17	700	28	28	40057134

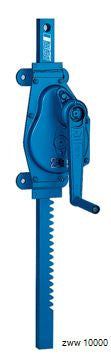

ZWW 10.000/700 3	10	1.24	700	40	55	40058009

Model	ZWW-L 300	ZWW-L 600	ZWW-L 1200	ZWW 1500	ZWW 3000	ZWW 5000	ZWW 10000
A, mm	20	20	25	35	45	50	60
B, mm	20	25	35	25	30	40	50
C, mm	-	-	-	215	280	330	380
Ø D, mm	11	13	16.5	21	21	21	30
E, mm	16	20	20	20	25	25	30
F, mm	130	130	127	135	165	140	160
G, mm	119	119	98	151	212	219	269
H, mm	200	200	180	310	395	400	480
I, mm	-	-	35	168	179	197	200
J, mm	38	35	30	26	31	37	40
K, mm	-	-	-	100	120	120	140
L, mm	60	60	140	130	160	160	180
M, mm	170	170	140	260	305	320	410
Ø N, mm	11	11	13	13	15	17	21
O, mm	-	-	100	110	120	105	125
P, mm	-	-	-	40	50	50	60
Q, mm	10	10	-	8	10	10	10
R, mm	200	250	200	250	250	250	300
S, mm	110	110	110	130	130	130	250
T, mm	-	-	-	42	86	109	150
U, mm	-	-	-	43	53	70	88
X, mm	-	-	-	20	25	45	30
Ø Z, mm	-	-	-	-	-	-	-
