Frequently bought together

On Sale

From: £2,590.72Ex. VAT ~~£3,047.91~~

Pneumatic chain hoists are characterised by high durability in a great number of industrial applications. The robust but light weight housing allows easy transportation.

Capacity 125 - 980 kg
Operating pressure 6 bar
Optional trolley available upon request

Hire Me

Crosby G-209 Alloy Bow Shackle

From: £6.23Ex. VAT

Hire from £2.20

The Crosby G-209 Screw Pin Anchor Shackle is a trusted choice for lifting, rigging and load-securing applications across construction, industrial, marine and transport environments.

- Sizes available 0.33t to 55t

- Hot-dip galvanized

- Forged, Quenched & Tempered, with alloy pins

Total: £0.00

Pneumatic chain hoists with hook

Capacities: 125 - 980kg

Pneumatic chain hoists are characterised by high durability in a great number of industrial applications. The robust but light weight housing allows easy transportation.

Applications:

Automobile and aircraft industries, shipyards, on ships and docks, foundries, on-/offshore, paint factories, paint shops, refineries, oil depots, galvanizing, printing, textile, food industries, pulp, paper, cement mills, glass, ceramic industries, wood working industries, chemical industries, heat treatment and power plants etc.

Designed for working pressures of 6 bar.
Rotating piston motor with 100 % duty rating and an unlimited number of starts for continuous operation.
Integrated limit switches for highest and lowest hook position as standard.
Self-adjusting automatic disc brake.
Extremely sensitive control with emergency-stop for a precise positioning of the load.
Air release for brake as standard for model CPA 10-9.

OPTIONS:

Trolleys with shackle to fit top hook suspended pneumatic chain hoists.
Maintenance unit for main air supply pipe (pressure regulator, manometer, lubricator and support.
Mobile maintenance unit.
Chain container.

Model	Capacity in kg / Number of chain falls	Chain dimensions d x p in mm / design	Classificaiton FEM/SO	Lifting speed with rated load¹ m/min	Lifting speed without load¹ m/min	Lowering speed with rated load¹ m/min	Air consumption with rated load¹ m³/min	Hoist motor rating kW	Weight at 3 m Hub kg

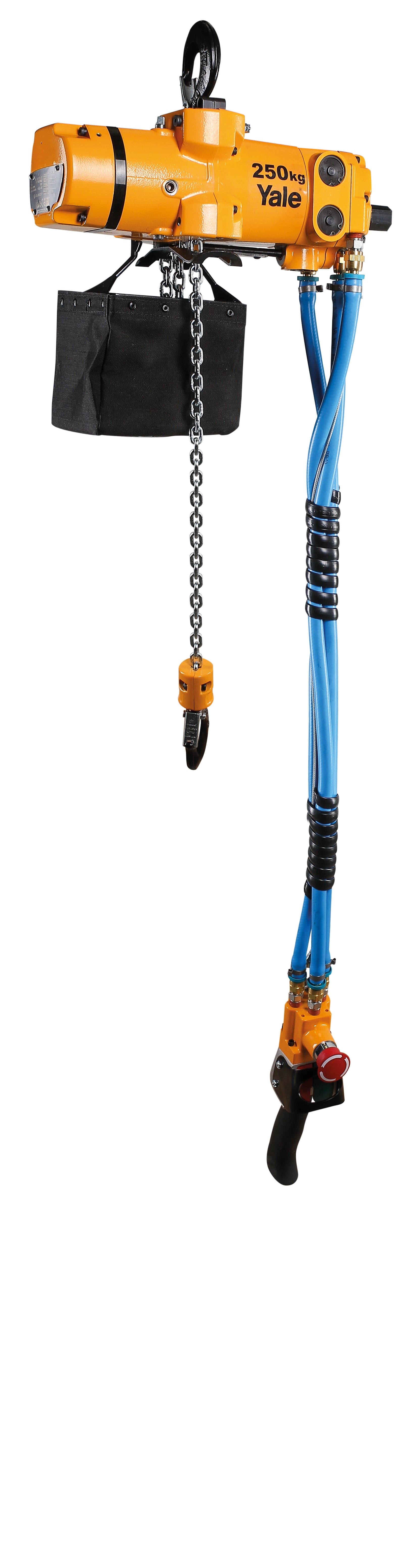

CPA 1-13	125/1	4 x 12.2 - DAT	1 Am/M4	13.1	17.1	11.3	0.9	0.4	15.4
CPA 2-10	250/1	4 x 12.2 - DAT	1 Am/M4	9.8	17.1	13.7	0.9	0.4	15.4
CPA 5-5	500/2	4 x 12.2 - DAT	1 Am/M4	4.6	7.9	6.7	0.9	0.4	17.2

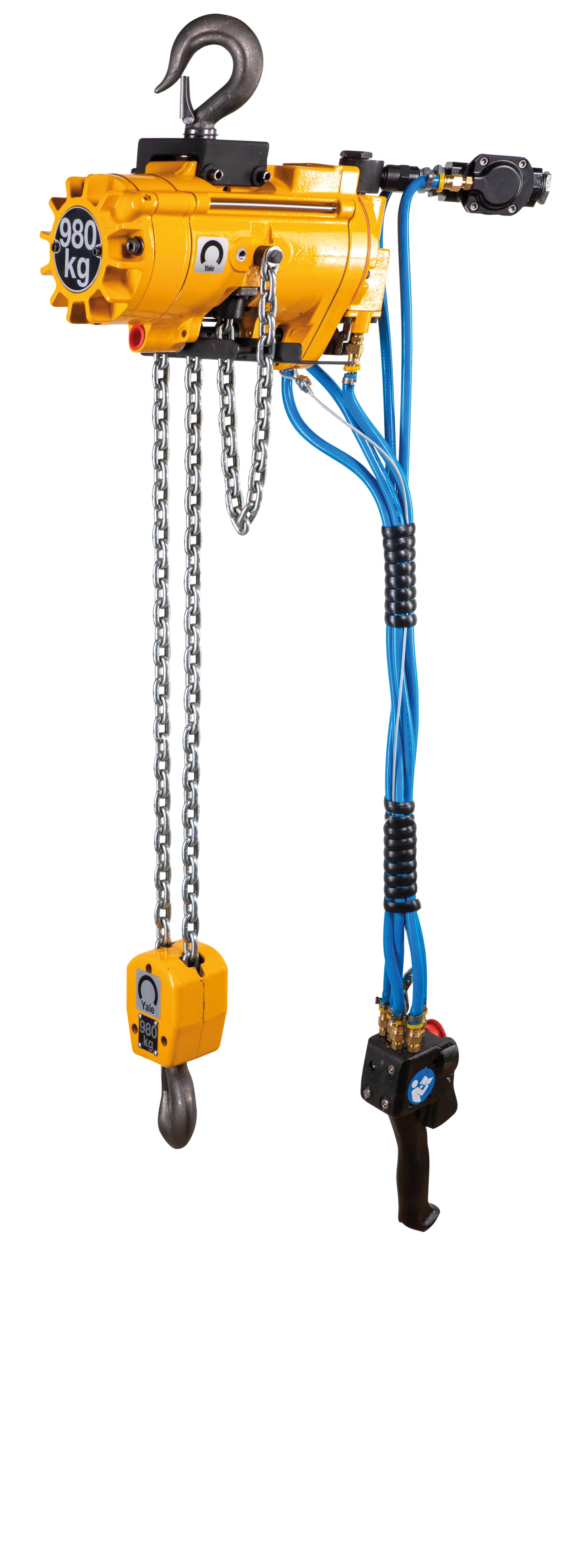

CPA 10-9	980/2	6.3 x 19.5 - DAT	1 Bm/M3	8.5	16.2	14.9	1.27	1.33	27.7

1 - Values for 6.3bar flow pressure and 2m control drop. Speeds will be reduced in case of longer control length. CPA 1-13, CPA 2-10 and CPA 5-5 max hose length 12m, air supply 3/8" NPT, air consumption 0.9m^3/min. CPA 10-9 max hose length 20m, air supply 1/2" NPT, air consumption 2.1m^3/min.

Model	CPA 1-13	CPA 2-10	CPA 5-5	CPA 10-9
A, mm	292	292	324	457
A1, mm	410	410	410	508
B, mm	21	21	14	27
C, mm	20	20	24	28
D, mm	16	16	14	28
F1, mm	90	90	90	130
F2, mm	120	120	120	180
K, mm	103	103	103	165
L, mm	57	57	57	83
M, mm	120	120	120	165
N, mm	57	57	57	83
Q1, mm	142	142	142	162
Q2, mm	183	183	183	181

Videos

On Sale

CPA Pneumatic Chain Hoist

Name: CPA Pneumatic Chain Hoist
Brand: Yale
SKU: CPA 1-13-1588-0
Price: 2590.72 GBP
Availability: InStock

From: £2,590.72Ex. VAT ~~£3,047.91~~

Est. lead time to dispatch: 2-3 Days

Pneumatic chain hoists are characterised by high durability in a great number of industrial applications. The robust but light weight housing allows easy transportation.

Capacity 125 - 980 kg
Operating pressure 6 bar
Optional trolley available upon request
