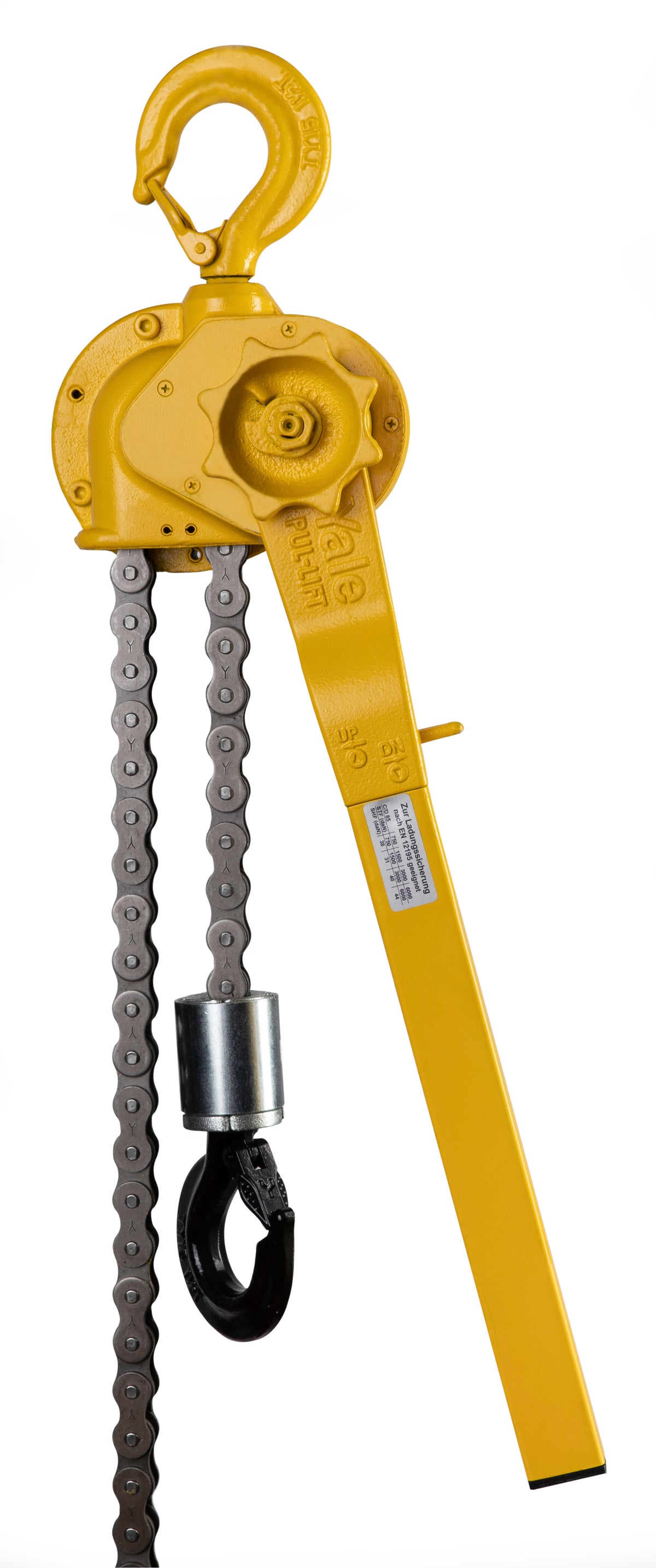

YALE C85 PUL-LIFT Ratchet lever hoist with roller chain

From: £597.79Ex. VAT ~~£703.28~~

Ideal for moving and positioning heavy machines and securing heavy loads, simplifies setting pipes etc. in manholes and trenches.

Capacity 750 - 3000 kg
Wet painting colour code RAL 1023.
The roller chain sprocket is made from heat treated
chromium-molybdenum steel

Hire Me

Crosby G-209 Alloy Bow Shackle

From: £6.23Ex. VAT

Hire from £2.20

The Crosby G-209 Screw Pin Anchor Shackle is a trusted choice for lifting, rigging and load-securing applications across construction, industrial, marine and transport environments.

- Sizes available 0.33t to 55t

- Hot-dip galvanized

- Forged, Quenched & Tempered, with alloy pins

Total: £0.00

Capacity 750 - 3000 kg

Almost unlimited applications in maintenance, mining, construction, steel fabrication, shipbuilding and utility work. Ideal for moving and positioning heavy machines and securing heavy loads, simplifies setting pipes etc. in manholes and trenches.

Enclosed housing with housing cover, hand lever and bottom block made from high tensile white malleable cast iron for overall rugged construction.
Wet painting colour code RAL 1023.
The graphite cast iron load sheave for the link chain has precision machined chain pockets for accurate fit and durability of the load chain.
The roller chain sprocket is made from heat treated chromium-molybdenum steel with precision machined teeth to ensure smooth chain movement.

OPTIONS:

Except for the capacity 10 t, all units can be equipped with an overload protection (slip clutch). This slip clutch is activated at 25 % ± 15 % overload, lifting of the load is no longer possible.
Additional lift heights are available upon request.

Yale_C85_and_D85_-_Catalog_Sheet_English.pdf

Model	Art.-No.	Capacity kg	Number of chain falls	Chain dimensions p x b	Handle pull at WLL daN	Weight at standard lift (1.5m) kg
PUL-LIFT C85 750	N01141295	750	1	5/8" x 3/8"	38	8.7
PUL-LIFT C85 1500	N01141296	1500	1	1" x 1/2"	31	17
PUL-LIFT C85 3000	N01141297	3000	1	1 1/4" x 5/8"	40	22.2

Dimensions	PUL-LIFT C85 750	PUL-LIFT C85 1500	PUL-LIFT C85 3000
A min, mm	322	389	403
B, mm	21	27	35
C min, mm	27	30	34
D, mm	15	20	25
D1, mm	17	23	25
E, mm	443	443	570
F, mm	112	189	197
G, mm	56	134	142
H, mm	56	55	55
J, mm	142	171	179
K, mm	39	72	76
L, mm	103	99	103
