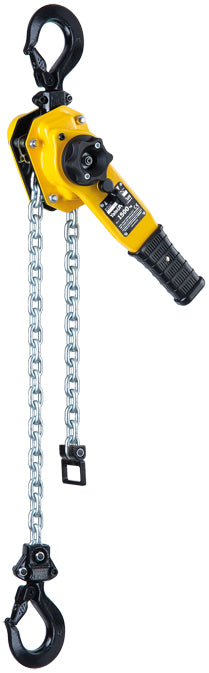

Yale UNOplus Series A ‘Economy’ Ratchet Lever Hoist

Yale UNOplus Series A Ratchet Lever Hoist

Frequently bought together

On Sale

Yale UNOplus Series A Ratchet Lever Hoist

From: £185.78Ex. VAT ~~£218.56~~

The UNOplus - Series A ratchet lever hoist stems from the proven quality of UNOplus. This versatile tool for lifting, pulling, and securing of loads is characterized by its compact design, robust stamped steel construction and its smooth-running free chaining device.

The UNOplus Series A Ratchet lever hoist is also available in the ARCTIC EDITION for extreme temperature applications.

Capacity: 750 - 6000 kg
minimum effort is required to operate the short hand lever
Comfortable rubber grip provides for extra protection
against slippage.

Hire Me

Crosby G-209 Alloy Bow Shackle

From: £6.23Ex. VAT

Hire from £2.20

The Crosby G-209 Screw Pin Anchor Shackle is a trusted choice for lifting, rigging and load-securing applications across construction, industrial, marine and transport environments.

- Sizes available 0.33t to 55t

- Hot-dip galvanized

- Forged, Quenched & Tempered, with alloy pins

Total: £0.00

Capacity: 750 - 6000 kg

The UNOplus - Series A ratchet lever hoist stems from the proven quality of UNOplus. This versatile tool for lifting, pulling, and securing of loads is characterized by its compact design, robust stamped steel construction and its smooth-running free chaining device. It’s reduced weight optimizes operation, making the application even more comfortable, convenient, and versatile.

The UNOplus Series A Ratchet lever hoist is also available in the ARCTIC EDITION for extreme temperature applications.

Due to optimized gearing and improved bearings in the housing cover a minimum effort is required to operate the short hand lever.
Steel hand wheel as standard.
Automatic screw-and-disc type load brake with corrosion protected components.
Standard free chaining device to quickly attach the load or to pull the chain through the hoist in both directions.
Robust chain guide rollers eliminate fouling and jamming of chain on the load sheave.
Robust chain end stop
Comfortable rubber grip provides for extra protection against slippage.
Alloyed steel link chain with zinc-plated resp. yellow chromated finish, in accordance with national and international standards and regulations.
Forged suspension and load hooks are made from non-aging, high tensile steel and fitted with robust safety latches.

Model	Art.-No.	Capacity kg	Number of chain falls	Chain dimensions p x b	Handle pull at WLL daN	Weight at standard lift (1.5m) KG
UNOplus-A 750	192049841	750	1	5.6 x 17.1 - T	22	6.3
UNOplus-A 1500	192049940	1500	1	7.1 x 21 - T	35	9.2
UNOplus-A 3000	192050025	3000	1	10 x 28 - V	40	16.9
UNOplus-A 6000	192050579	6000	2	10 x 28 - V	43	28.6
UNOplus-A 750 ARCTIC	192099226	750	1	5.6 x 17.1 - T	22	6.3
UNOplus-A 1500 ARCTIC	192099227	1500	1	7.1 x 21 - T	35	9.2
UNOplus-A 3000 ARCTIC	192099228	3000	1	10 x 28 - V	40	16.9
UNOplus-A 6000 ARCTIC	192099229	6000	2	10 x 28 - V	43	28.6

Dimensions	UNOplus-A 750	UNOplus-A 1500	UNOplus-A 3000	UNOplus-A 6000	UNOplus-A 750 ARCTIC	UNOplus-A 1500 ARCTIC	UNOplus-A 3000 ARCTIC	UNOplus-A 6000 ARCTIC
A min, mm	312	375	445	563	312	375	445	563
B, mm	20	26	37	45	20	26	37	45
C, mm	27	31	40	47	27	31	40	47
D, mm	18	21	28	35	18	21	28	35
E, mm	267	267	376	376	267	267	376	376
F, mm	121	146	180	232	121	146	180	232
G, mm	40	51	57	71	40	51	57	71
H, mm	81	95	123	161	81	95	123	161
J, mm	144	164	193	193	144	164	193	193
K, mm	53	68	83	83	53	68	83	83
L, mm	91	96	110	110	91	96	110	110
