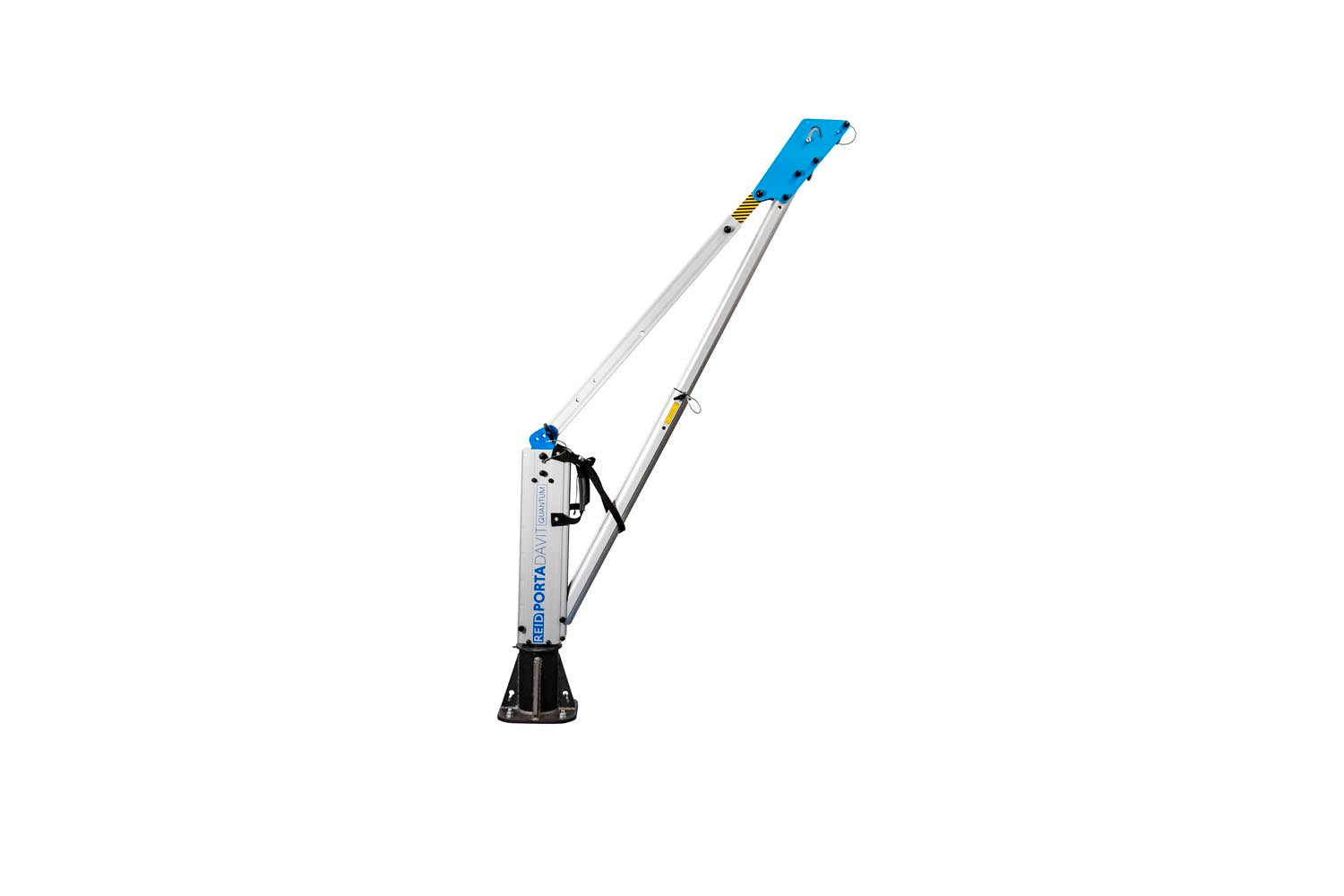

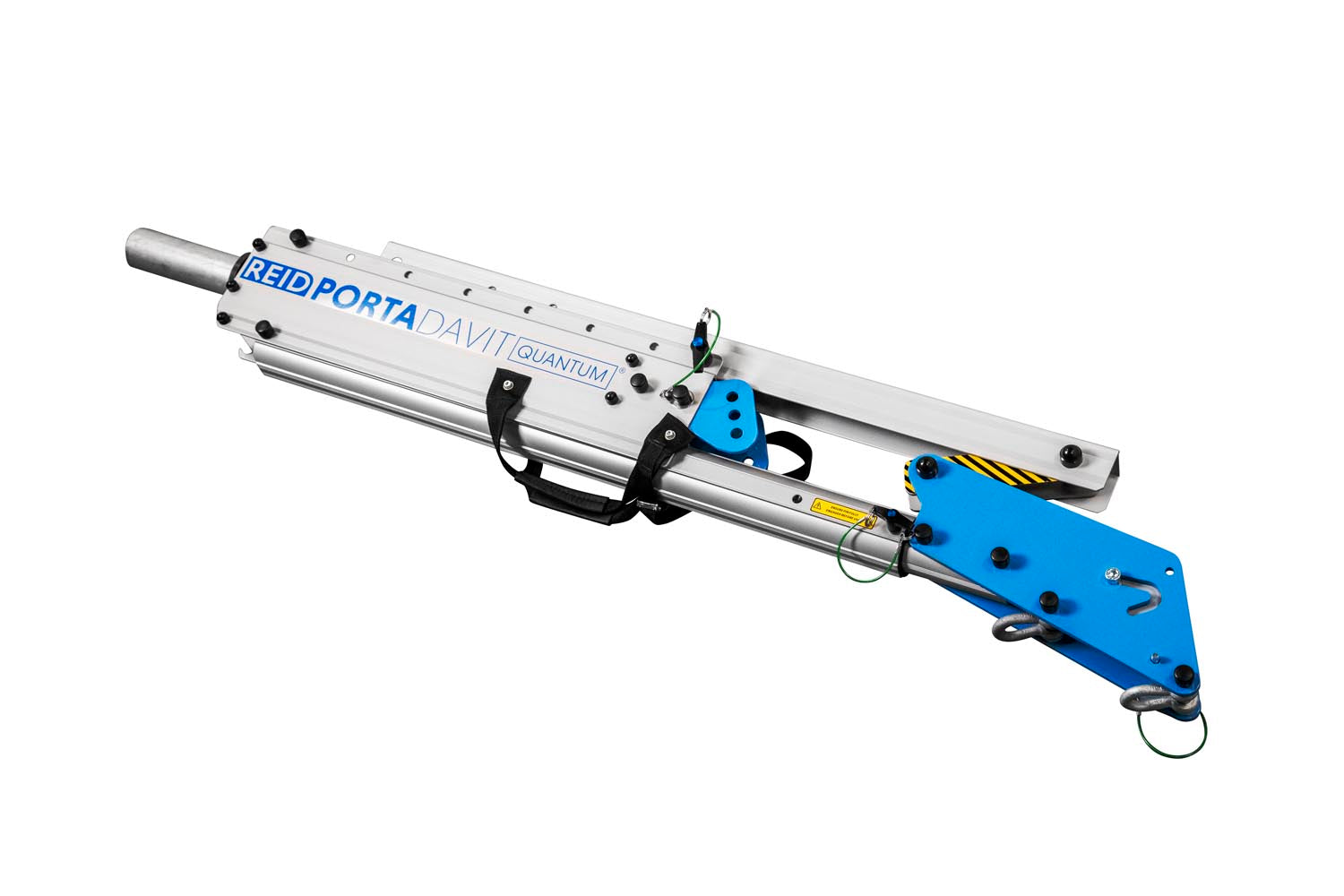

Our PORTADAVIT QUANTUM is a rapidly deployable, lightweight solution to heavy lifting and lowering of goods and personnel. Weighing from 18.5kg when fully assembled, it can be manually operated by just one person while maintaining a WLL of up to 600kg.
Key features
- FN795:2012 Certified
- ATEX Certified
- Can support goods and personnel lifting
Goods WLL of up to 600 kg
Personnel WLL of up to 300 kg
- Ease of assembly with the use of just one pin, no tools required
- can be rotated 360 degrees under full load using fingertip control
- designed with a universal kingpin suitable for all REID sockets
- Easy radius adjustment
- Engineered designs and bespoke sections educe weight, providing llightweight portability
Configurations

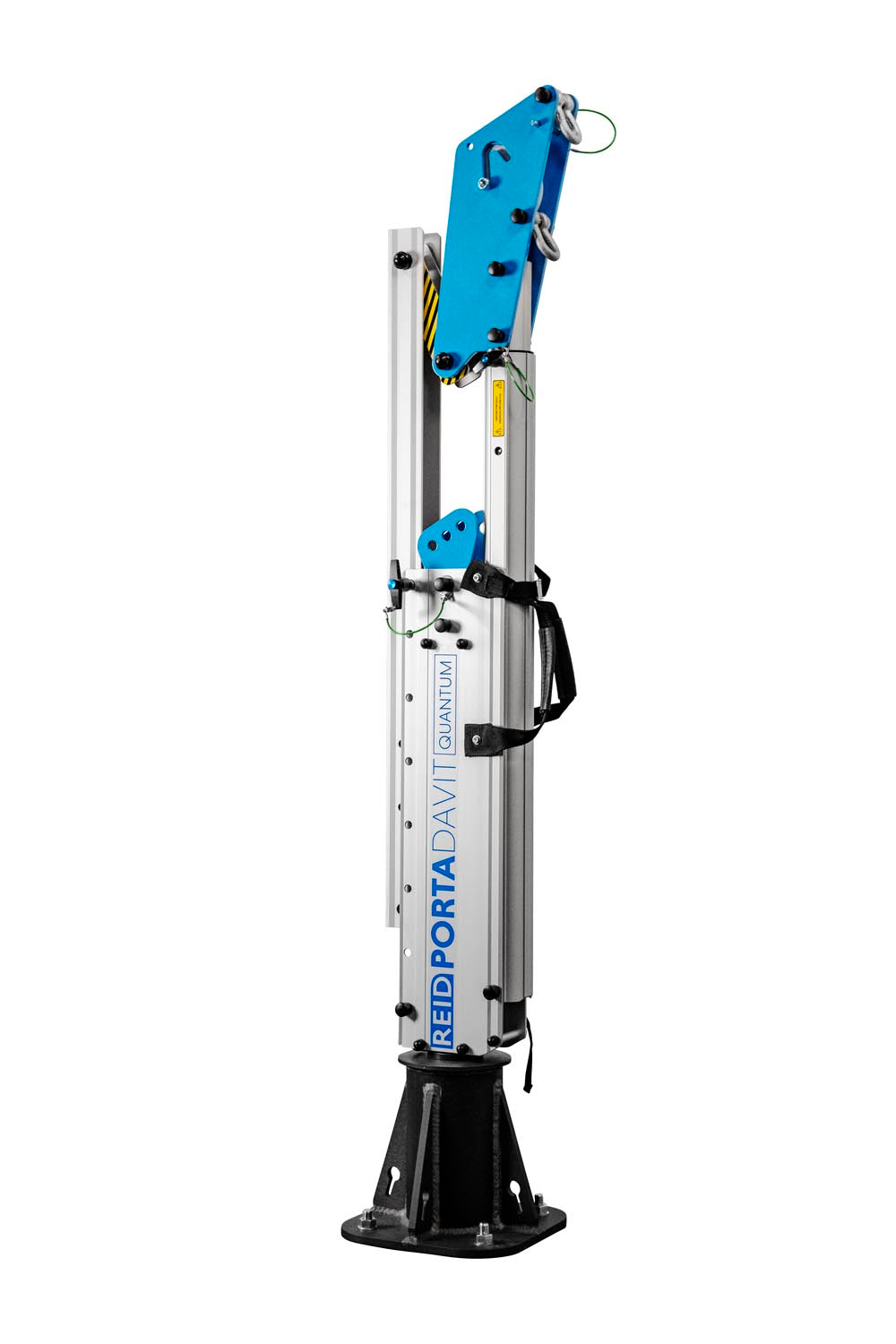

The PORTADAVIT QUANTUM is available in a strop and winched version for use with a range of lifting equipment
| 600KG WLL | 1 PERSON ASSEMBLY | FROM 18.5KG | EN795 CERTIFIED | ATEX CERTIFIED |
| Accreditations, Certifications & Standards | PDQ1 | PDQ2 |
| EN795:2012 | ✔ |
✔ |
| PD CEN / TS16415:2013 | ✔ |
✔ |
| AS/NZS 5532:2013 | ✔ |
✔ |
| ATEX Certified [Zone 2] | ✔ |
✔ |
| Atex Certified [Zone 1] | Optional | Optional |
| IRATA | ✔ |
✘ |
Features & performance
| Accreditations, Certifications & Standards | PDQ1 | PDQ2 |
| EN795:2012 | ✔ |
✔ |
| PD CEN / TS16415:2013 | ✔ |
✔ |
| AS/NZS 5532:2013 | ✔ |
✔ |
| ATEX Certified [Zone 2] | ✔ |
✔ |
| Atex Certified [Zone 1] | Optional | Optional |
| IRATA | ✔ |
✘ |
| Capacity |
PDQ1 | PDQ2 |
| Max Goods Lifting (kg) | 600 | 500 |
| Max Personnel Lifting (kg) | 300 | 250 |
| Fall Arrest (Persons) | 1 | 1 |
| Dimensions |
PDQ1 | PDQ2 |
| Maximum Reach (mm) | 1200 | 1500 |
| Maximum height of Lift (mm) | 2111 | 1957 |
| Socket Diameter |
PDQ1 | PDQ2 |
| 65mm | ✔ |
✔ |
| Socket Options |
PDQ1 | PDQ2 |
| Top Mount | ✔ |
✔ |
| Flush Mount | ✔ |
✔ |
| Side Mount | ✔ |
✔ |
| Bridge Mount | ✔ |
✔ |
| Pedestal | ✔ |
✔ |
| Extension Post | ✔ |
✔ |
| Standard Features |
PDQ1 | PDQ2 |
| One Piece Unit | ✔ |
✔ |
| Multiple Accessory Attachment | ✔ |
✔ |
| Shackle Lifting Points | ✔ |
✔ |
| Weight < 25kg | ✔ |
✔ |
| Optional Extras |
PDQ1 | PDQ2 |
| Winch Capable | ✔ |
✔ |
| Rotational Handle | ✔ |
✔ |
| Finishes |
PDQ1 | PDQ2 |
| Anodised | ✔ |
✔ |
| 316SS Fixings | Optional | Optional |
| Marine Spec | Optional | Optional |
| Item Code | WLL | Radius Adj. Points | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|
PDQ1W |
600 kg |
1 | 2007 | 1935 | 1799 | 1200 | 1100 |
| 2 | 2061 | 1989 | 1848 | 1100 | 1000 | ||
| 3 | 2111 | 2039 | 1892 | 1000 | 900 |
| Item Code | WLL | Radius Adj. Points | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|
PDQ2W |
500 kg |
1 | 1837 | 1766 | 1647 | 1500 | 1400 |
| 2 | 1899 | 1827 | 1703 | 1400 | 1300 | ||
| 3 | 1957 | 1885 | 1755 | 1300 | 1200 |
