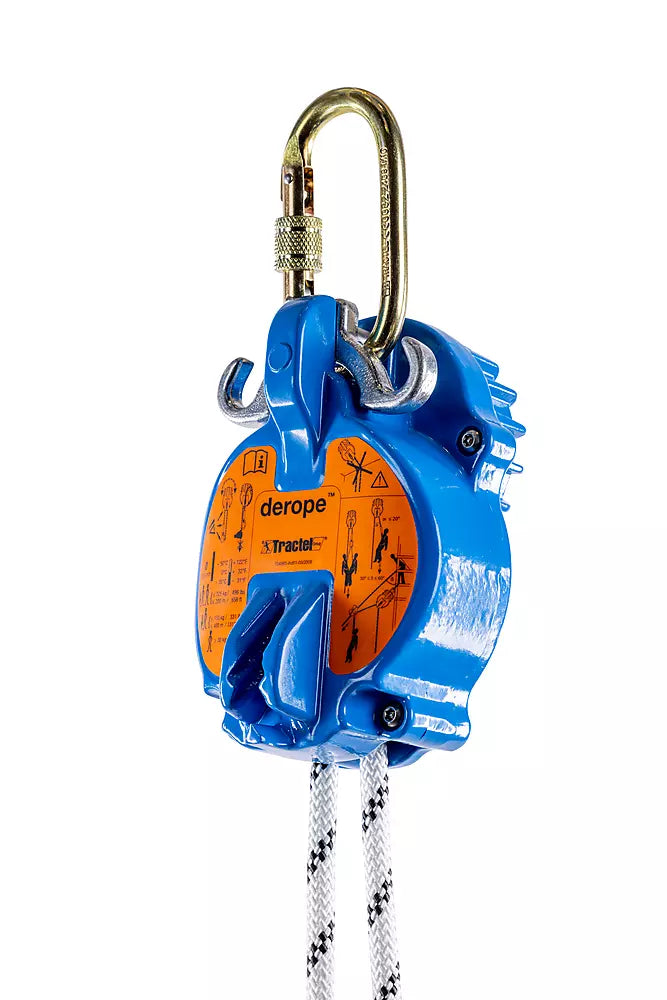

Derope STD
The Derope STD provides controlled-speed evacuation capability for emergency descent operations from elevated structures. This descent device accommodates either single person evacuation up to 150kg for heights reaching 400 metres, or dual person evacuation up to 225kg for heights up to 200 metres. The system enables sequential consecutive round-trip descents for group evacuation scenarios whilst monitoring maximum authorised descent limits.
Manufactured with aluminium body construction and zinc-plated steel mechanism for durability and reliability. The compact dimensions of 170 mm height, 105 mm and 120 mm width provide portability at just 1.9 kg weight including M10 connector.
Industrial applications include emergency evacuation systems for wind turbines, aerial cable cars, derricks, and elevated industrial facilities requiring reliable descent capability. The device integrates with 10.5 mm polyamide rope systems and various storage bag options for complete evacuation solutions. Compliance with EN 341 A: 2002 standards ensures regulatory approval for professional rescue and evacuation operations.
Derope UPA
The Derope UPA provides controlled-speed evacuation and rescue winch capability for emergency operations at height. This advanced descent device accommodates single person evacuation up to 150 kg for heights reaching 400 metres, or dual person evacuation up to 225 kg for heights up to 200 metres. The integrated rescue winch enables upward evacuation and recovery operations for comprehensive emergency response capability.
Features rescue winch handwheel operation manually or with drill-mounted assistance requiring minimum 300W mains-operated or 18V rechargeable drill power. The device weighs 3.0 kg with compact 225 x 200 x 165 mm dimensions for portable deployment. Descent speed operates between 0.5 and 2 metres per second with 5 kg maximum force required on handwheel handle for winch operation.
Applications include wind turbines, cable cars, derricks, and elevated industrial facilities requiring comprehensive evacuation and rescue capability. The device supports rope access technicians for upward movement without effort, making it suitable for window cleaning, poster installation, and aerial installation operations. Compatible with 10.5 mm Tractel rope and optional plastic or steel reel systems for extended deployment.

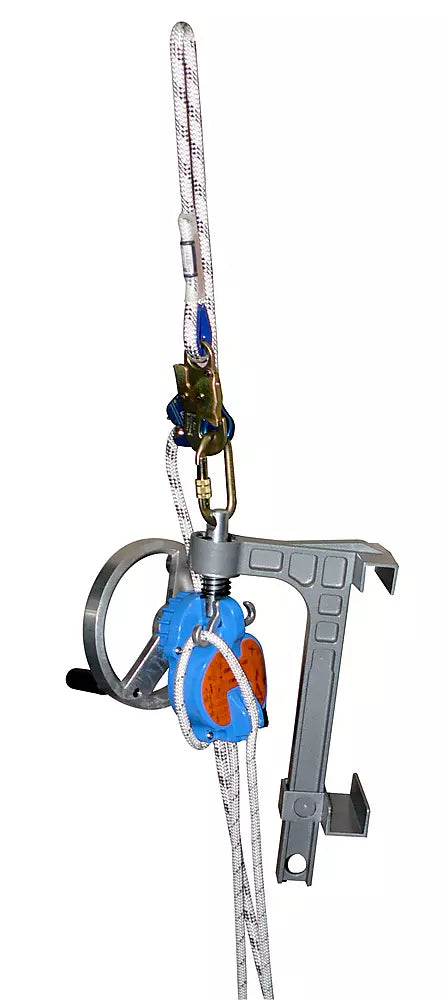

Derope UPB
The Derope UPB provides controlled-speed evacuation and rescue winch capability for professional emergency operations at height. This robust descent device accommodates single person evacuation up to 150kg for heights reaching 400 metres, or dual person evacuation up to 225 kg for heights up to 200 metres. The integrated rescue winch enables both downward evacuation and upward recovery operations with comprehensive emergency response capability.
Manufactured with aluminium body and winch construction paired with zinc-plated steel mechanism for maximum durability. The device weighs 6.1 kg with dimensions of 430 mm height, 315 mm width, and 225 mm depth, featuring a large support bracket for secure ladder mounting. Descent speed stabilises at maximum 2 metres per second across load ranges from 30 kg to 225 kg
Applications include wind turbines, aerial cable cars, derricks, and elevated industrial facilities where robust ladder-mounted evacuation systems are required. The large support bracket provides enhanced stability for permanent installation scenarios whilst the rescue winch enables professional rescue operations. Compatible with 10.5mm polyamide rope and comprehensive storage bag options for complete evacuation system deployment.

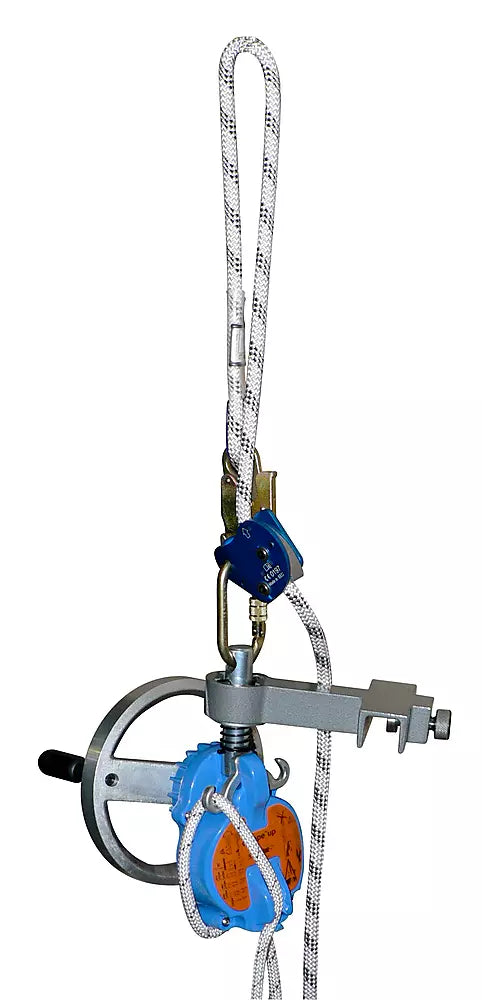

Derope UPK
The Derope UPK provides controlled-speed evacuation and rescue winch capability for professional emergency operations at height. This versatile descent device accommodates single person evacuation up to 150 kg for heights reaching 400 metres, or dual person evacuation up to 225 kg for heights up to 200 metres. The integrated rescue winch enables both downward evacuation and upward recovery operations with comprehensive emergency response functionality.
Manufactured with aluminium body and winch construction paired with zinc-plated steel mechanism for reliable performance. The device weighs 4.6 kg with compact dimensions of 325 mm height and 200 mm width, featuring a small support bracket for ladder mounting applications. Descent speed stabilises at maximum 2 metres per second across load ranges from 30 kg to 225 kg
Applications include wind turbines, aerial cable cars, derricks, and elevated industrial facilities where compact ladder-mounted evacuation systems are required. The small support bracket provides secure mounting whilst maintaining portability and the rescue winch enables professional rescue operations. Compatible with 10.5 mm polyamide rope and comprehensive storage bag options for complete evacuation system deployment.
