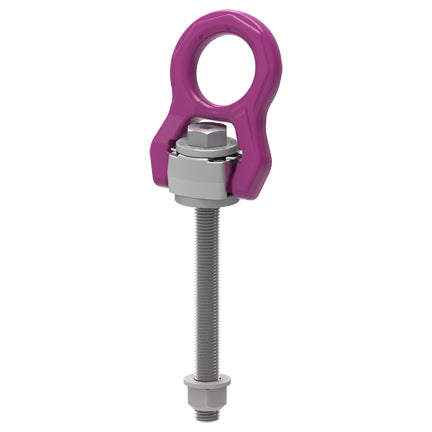

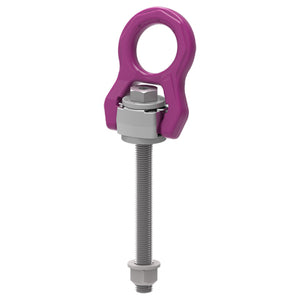

ACP Turnado, metric thread with max length, comes with locknut and washer

Frequently bought together

On Sale

RUD ACP Turnado Swivel Lifting Point, Metric Thread, Max Length, Locknut and Washer

From: £84.38Ex. VAT ~~£93.76~~

The RUD ACP-TURNADO is an innovative, high-capacity swivel lifting point featuring a unique spring mechanism that automatically aligns the lift ring with the load's force, preventing kinking and ensuring safe lifting from any direction with higher Working Load Limits (WLL) than standard hoist rings.
- Innovative spring mechanism – prevents the lift bail from stopping with transverse load.

- Swivel joint in the lifting ring axis.

- Wear lenses for checking discard criteria.

- Integrated RFID transponder to make checks easier.

- Safety factors 4:1 and 5:1.

Hire Me

Green Pin® Bow Shackle SC - Standard bow shackle with screw collar pin

From: £3.05Ex. VAT

Hire from £2.20

The Green Pin®Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long term durability

Total: £0.00

ACP Turnado Swivel Lifting Point, Metric Thread, Long shank, c/w Locknut and Washer

The RUD ACP-TURNADO is an innovative, high-capacity swivel lifting point featuring a unique spring mechanism that automatically aligns the lift ring with the load's force, preventing kinking and ensuring safe lifting from any direction with higher Working Load Limits (WLL) than standard hoist rings. Key details include metric threads, 360° rotation, 180° pivot, integrated RFID for digital tracking, wear indicators, and superior strength for industrial use, available in standard or max-length bolt versions.

No kinking
Unique spring mechanism that guides the lifting ring into the direction of the best lifting angle
Higher working load limits (WLL) compared to hoist rings of the same size
Enhanced shape and strengthened at its most stressed areas

Manual_b658cb62-f305-471a-90ac-13f239c8468f.pdf

Type	weight (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	Fmax (mm)	G (mm)	H (mm)	K (mm)	L (mm)	Lmax (mm)	M	N (SW)	I (SW)	T (mm)	torque (Nm)	Code
ACP M8	0.36	—	11	10.5	38	30	12	77	28	45.3	58	40	105	M8	5	13	83	30	8600630
ACP M10	0.37	—	11	10.5	38	30	16	97	28	50.4	58	44	125	M10	6	17	83	60	8600631
ACP M12	0.38	—	11	10.5	38	30	19	117	28	54.5	58	47	145	M12	8	19	83	80	8600632
ACP M16	0.88	—	14	14	50	40	22	149	36	68	76	58	185	M16	10	24	107	150	8600634
ACP M20	1.41	—	17	17	50	45	26.5	186.5	43.5	82.5	89	70	230	M20	12	30	118	300	8600636
ACP M24	3.27	—	23	23	66	60	34	210	55	104	121	89	265	M24	14	36	154	500	8600638
ACP M30	5.69	—	29	27	76	75	41.5	271.5	68.5	129	148	110	340	M30	17	46	183	800	8600640
ACP M36	7.1	106	32	32	82	70	45	240	60	128	168	105	300	M36	22	55	189	800	8600642
ACP M42	7.5	106	32	32	82	70	53	290	60	136	168	113	350	M42	24	65	189	1500	8600644

Videos

On Sale

RUD ACP Turnado Swivel Lifting Point, Metric Thread, Max Length, Locknut and Washer

From: £84.38Ex. VAT ~~£93.76~~

Est. lead time to dispatch: Same Day Before 1pm

- Swivel joint in the lifting ring axis.

- Wear lenses for checking discard criteria.

- Integrated RFID transponder to make checks easier.

- Safety factors 4:1 and 5:1.

THREAD SIZE | CAPACITY | CODE
