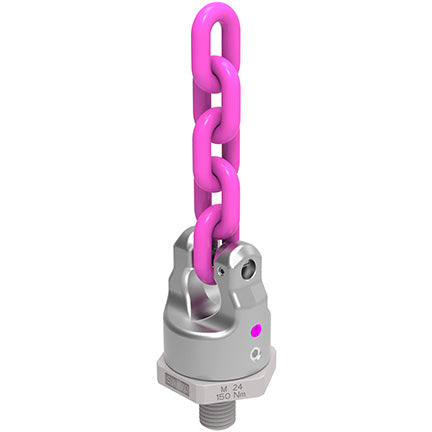

PP-VIP PowerPoint® direct VIP chain connection
The RUD PP-VIP Powerpoint Direct Chain Connection has a safety factor of 4:1 and comes fully tested and approved by DGUV. The powerpoint is able to rotate to a full 360˚ thanks to its special double ball bearings, having this makes the powerpoint very easy to rotate and ensures a perfect connection every time. In true RUD fashion all of the powerpoints are finished in a gloss pink colour.

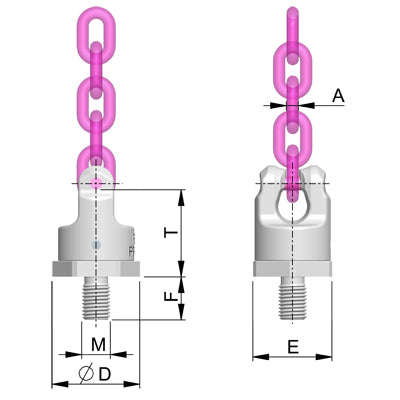

| Model | Product Code | Weight (kg) | Nominal WLL (kg) | T (mm) | A (mm) | D (mm) | E (mm) | F (mm) | M (mm) |
|---|---|---|---|---|---|---|---|---|---|
| PP-VIP4- 0.63t -M12 | 7989525 | 0.25 | 630 | 41 | 4 | 40 | 36 | 18 | M12 |
| PP-VIP6- 1t -M14 | 8600326 | 0.83 | 1000 | 58 | 6 | 48 | 41 | 21 | M14 |
| PP-VIP6 - 1.5t - M16 | 7989526 | 0.45 | 1500 | 50 | 6 | 46 | 41 | 25 | M16 |
| PP-VIP8- 2.5t - M20 | 7989527 | 0.95 | 2500 | 61 | 8 | 61 | 55 | 30 | M20 |
| PP-VIP8- 2t- M22 | 8600322 | 1.20 | 2000 | 73 | 8 | 61 | 55 | 33 | M22 |
| PP-VIP10 4t- M24 | 7989528 | 2.2 | 4000 | 77 | 10 | 78 | 70 | 36 | M24 |
| PP-VIP10 - 3.5t - M27 | 8600323 | 2.47 | 3500 | 94 | 10 | 81 | 70 | 41 | M27 |
| PP-VIP13 - 5t - M30 | 7989529 | 3.5 | 5000 | 93 | 13 | 95 | 85 | 45 | M30 |
| PP- VIP16 - 8t - M36 | 7989530 | 5.2 | 8000 | 102 | 16 | 100 | 90 | 54 | M36 |
| PP - VIP4 0.6t M12 Max Length F=140 | 8600320 | 0.41 | 600 | 47 | 4 | 42 | 36 | 140 | M12 |
| PP - VIP6 1t - M14 Max Length F=65 | 8600326 | 0.91 | 1000 | 58 | 6 | 48 | 41 | 65 | M14 |
| PP - VIP6 1t - M14 Max Length F=160 | 8600326 | 0.69 | 1000 | 58 | 6 | 48 | 41 | 160 | M14 |
| PP - VIP6 1.3t - M16 Max Length F=180 | 8600321 | 0.73 | 1300 | 58 | 6 | 48 | 41 | 180 | M16 |
| PP - VIP8 2.0t - M20 Max Length F=224 | 8600322 | 1.6 | 2000 | 73 | 8 | 61 | 55 | 224 | M20 |
| PP - VIP8 2.0t - M22 Max Length F=94 | 8600322 | 1.33 | 2000 | 73 | 8 | 61 | 55 | 94 | M22 |
| PP - VIP10 3.5t - M24 Max Length F=255 | 8600323 | 3.20 | 3500 | 94 | 10 | 81 | 80 | 255 | M24 |
| PP - VIP10 3.5t -M27 Max Length F=92 | 8600323 | 2.96 | 3500 | 94 | 10 | 81 | 70 | 92 | M27 |
| PP - VIP13 5t - M30 Max Length F=330 | 8600324 | 4.90 | 5000 | 108 | 13 | 99 | 85 | 330 | M30 |
| PP - VIP16 8t - M36 Max Length F=300 | 8600305 | 6.90 | 8000 | 100 | 16 | 100 | 90 | 300 | M36 |
| PP - VIP16 8t - M39 Max Length F=300 | 8600305 | 7.64 | 8000 | 100 | 16 | 100 | 90 | 300 | M39 |
| PP - VIP16 8t - M42 Max Length F=300 | 8600305 | 8.02 | 8000 | 100 | 16 | 100 | 90 | 300 | M42 |
