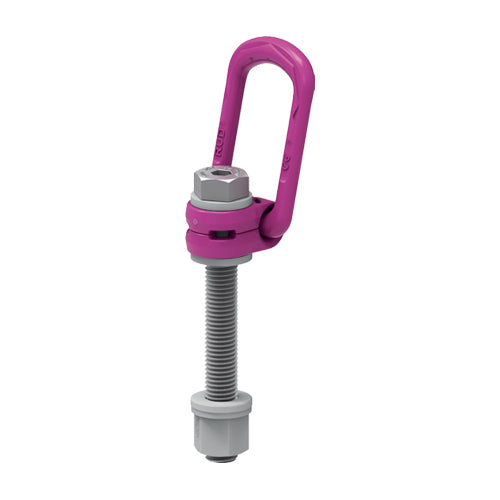

VLBG-PLUS Load Ring, Metric Thread with Long Shank c/w Locknut & Washer

Name: RUD VLBG-PLUS Load Ring, Metric Thread with Long Shank c/w Locknut & Washer
Brand: Rud
SKU: 8600470-1-6
Price: 97.38 GBP
Availability: InStock

The RUD VLBG-PLUS Load Ring with metric thread and maximum-length bolt is designed for strength, reliability, and versatility in demanding lifting applications. With a 4:1 safety factor, each unit is fully tested and DGUV-approved, ensuring dependable performance and compliance with recognised safety standards.

Manufactured from Grade 12 material, the VLBG-PLUS is engineered for extreme operating conditions, performing reliably in temperatures from −40°C up to 100°C, and up to 350°C with a reduced Working Load Limit (WLL).

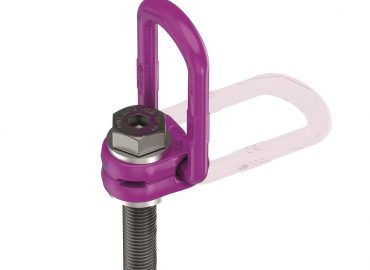

The load ring’s 360° swivel range and 180° pivot capability allow for optimal alignment with the direction of pull, helping to reduce side-loading risks and ensuring a secure connection during lifting operations.

For added durability and serviceability, the VLBG-PLUS features RUD’s renowned Grade 12 ICE bolt, which is fully exchangeable, extending product life and simplifying maintenance.

Optimum WLL with captive but exchangeable ICE-Bolt
Bracket adjustable in force direction
Comprehensive range of threads

Instruction-Handbook-VLBG-PLUS.pdf

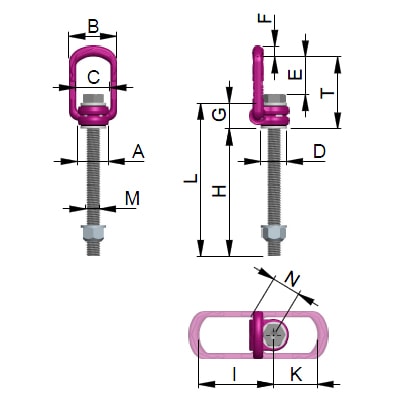

Type	WLL [t]	Weight [kg]	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	G [mm]	H [mm]	H max [mm]	J [mm]	K [mm]	L [mm]	L max [mm]	M [mm]	N [mm]	SW	ISK	T [mm]	Torque	Code
VLBG-PLUS 0.63t M8	0.63	0.3	30	52	34	24	40	10	29	11	76	75	45	40	105	8	32	13	5	75	30 Nm	8600470
VLBG-PLUS 0.9t M10	0.9	0.31	30	52	34	24	39	10	29	15	96	75	45	44	125	10	32	17	6	75	60 Nm	8600471
VLBG-PLUS 1.35t M12	1.35	0.34	32	52	34	26	38	10	29	18	116	75	45	47	145	12	32	19	8	75	150 Nm	8600472
VLBG-PLUS 1.2t M14	1.2	0.5	34.5	56	38	30	39	13.5	36	24	34	86	47	60	70	14	38	24	10	85	150 Nm	8600473
VLBG-PLUS 2t M16	2	0.55	34.5	56	38	30	39	13.5	36	22	149	86	47	58	185	16	38	24	10	85	150 Nm	8600474
VLBG-PLUS 2t M18	2	1.3	50	82	54	45	55	17	43	37	222	113	64	80	90	18	48	30	12	110	200 Nm	8600475
VLBG-PLUS 3.5t M20	3.5	1.3	50	82	54	45	55	17	43	32	187	113	64	75	230	20	48	30	12	110	400 Nm	8600476
VLBG-PLUS 4.5t M24	4.5	1.4	50	82	54	45	67	17	43	37	222	130	78	80	265	24	48	36	14	125	760 Nm	8600478
VLBG-PLUS 6.7t M30	6.7	3.2	60	103	65	60	67	22.5	61	49	279	151	80	110	340	30	67	46	17	147	1000 Nm	8600480
VLBG-PLUS 8t M36	8	6.2	77	122	82	70	97	26.5	77	63	223	205	113	140	300	36	79	55	22	196	800 Nm	8600289
VLBG-PLUS 10t M42	10	6.7	77	122	82	70	94	26.5	77	73	273	205	113	150	350	42	79	65	24	196	1000 Nm	8600290
VLBG-PLUS 15t M42	15	10.9	95	156	100	85	109	36	87	63	413	230	130	150	500	42	100	65	24*	222	1500 Nm	8600291
VLBG-PLUS 20t M48	20	11.6	95	156	100	95	105	36	87	73	303	230	130	160	350	48	100	75	27	222	2000 Nm	8600292
