VLBG-Z Load ring, UNC/UN thread

Name: RUD VLBG-Z Load ring, UNC/UN thread, Short Shank
Brand: Rud
SKU: 8504256-1-8
Price: 90.48 GBP
Availability: InStock

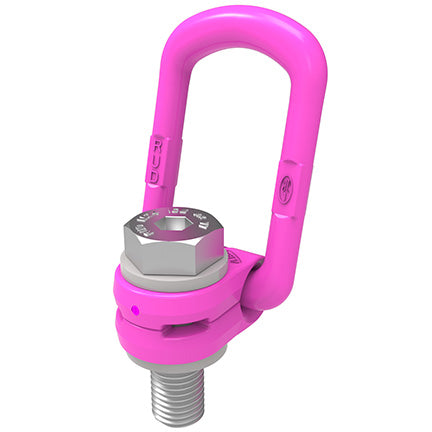

The RUD VLBG-Z Load Ring with UNC/UN thread is a premium lifting point designed for safe, flexible, and efficient lifting operations. Engineered by RUD to the highest quality standards, this load ring rotates 360 degrees and pivots through 180 degrees, allowing the load to align optimally and reducing side loading during lifts.

Manufactured from high-strength forged steel and finished with a durable corrosion-resistant coating, the VLBG-Z offers exceptional strength, long service life, and reliability even in demanding industrial environments. The UNC/UN threaded design makes it ideal for use on machinery, equipment, and structures that require imperial threading standards.

Each load ring is clearly marked with its working load limit, size, and traceability code, supporting compliance with lifting regulations and workplace safety requirements. Suitable for applications in manufacturing, construction, maintenance, and heavy industry, the RUD VLBG-Z Load Ring delivers trusted performance where precision and safety matter most.

Captive but exchangable RUD-Bolt
Bracket adjustable in force direction
Comprehensive range of threads

Instruction_Handbook_966b4956-bc6d-4290-b9e0-591a49e74f21.pdf

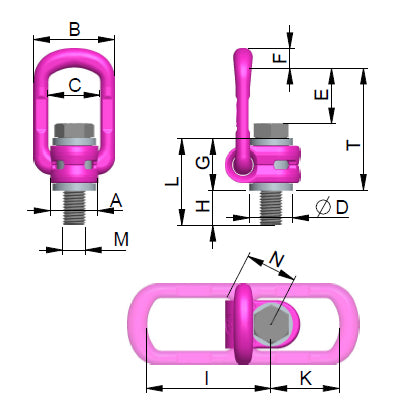

Model	Product Code	Weight (kg)	Nominal WLL (kg)	T (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	K (mm)	L (mm)	M (mm)	N (mm)
VLGB-Z 0.63t 3/8"-16UNC	8504256	0.29	630	75	30	54	34	24	39	10	29	16	45	45	3/8"-16UNC	32
VLBG-Z 1.0t 1/2"-13UNC	8502349	0.36	1000	75	32	54	34	26	38	10	29	22	45	50	1/2"-13UNC	32
VLBG-Z 1.5t 5/8"-11UNC	8502350	0.50	1500	85	33	56	36	30	39	13.5	36	24	47	60	5/8"-11UNC	38
VLBG-Z 2.5t 3/4"-10UNC	8502351	1.30	2500	110	50	82	54	45	55	16.5	43	28	64	71	3/4"-10UNC	48
VLBG-Z 2.5t 7/8"-9UNC	8502352	1.25	2500	110	50	82	54	45	55	16.5	43	27	64	70	7/8"-9UNC	48
VLBG-Z 4.0t 1"-8UNC	8502353	1.50	4000	125	50	82	54	45	67	18	43	41	78	84	1"-8UNC	48
VLBG-Z 5t 1 1/4"-7UNC	8503187	3.33	5000	147	60	103	65	60	64	22.5	61	41	80	102	1 1/4"-7UNC	67
VLBG-Z 5t 1 1/4"-8UN	8502354	3.33	5000	147	60	103	65	60	64	22.5	61	41	80	102	1 1/4"-8UN	67
VLBG-Z 8t 1 1/2"-6UNC	8504257	6.14	8000	197	77	122	82	70	97	26.5	77	62	110	140	1 1/2"-6UNC	87
VLBG-Z 20t 2"-4 1/2UNC	8504258	11.77	20,000	222	95	156	100	95	105	36	87	69	130	156	2"-4 1/2UNC	100
