RUD Starpoint Eyebolts – High-Performance Rotating Lifting Points

The RUD Starpoint Eyebolt is a premium, high-strength lifting point designed for safe, efficient, and flexible load handling in demanding industrial applications. Engineered and manufactured in Germany, Starpoint eyebolts set the global benchmark for reliability, safety, and innovation in lifting technology.

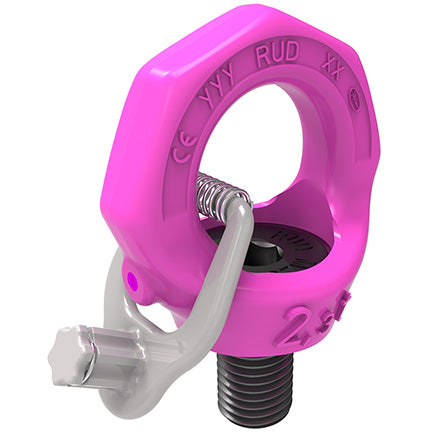

Unlike conventional fixed eyebolts, the RUD Starpoint features a 360° rotating body combined with a pivoting ring that aligns itself perfectly with the direction of the load. This intelligent design minimizes side loading, reduces stress on the lifting point, and significantly improves operational safety—especially in complex or angular lifts.

360° adjustable in force direction
several times higher WLL than the DIN 580 eye bolt
Easy-Fit-Key for easy assembly and disassembly available, look type VRS-F

Instruction_Handbook_c81fa242-91ef-4dae-b410-3248018b7226.pdf

Model	Product Code	Weight (kg)	Nominal WLL (kg)	T (mm)	B (mm)	C (mm)	D (mm)	E (mm)	G (mm)	I (mm)	K (mm)	L (mm)	M (")	N (")
VRSF-5/16"-18UNC	7999106	0.13	300	35	11	9	25	25	30	16.3	47	12	5/16"-18UNC	1/4"
VRSF-3/8"-16UNC	7104480	0.12	400	35	11	9	25	25	30	16.3	47	19	3/8"-16UNC	1/4"
VRSF- 7/16"-14UNC	7904195	0.12	400	35	11	9	25	25	30	16.3	47	15	7/16"-14UNC	1/4"
VRSF-1/2"-13UNC	7104481	0.22	750	42	13	10	30	30	34	19.8	56	19	1/2"-13UNC	5/16"
VRSF-5/8"-11UNC	7104482	0.33	1500	49	15	13	35	36	40	23.5	65	24	5/8"-11UNC	3/8"
VRSF- 3/4"-10UNC	7104483	0.54	2300	58	17	16	40	41	50	29.3	76	29	3/4"-10UNC	1/2"
VRSF- 7/8"-9UNC	7104484	0.64	2300	58	17	16	40	41	50	29.3	76	33	7/8"-9UNC	1/2"
VRSF- 1"-8UNC	7104485	0.98	3200	70	20	19	49	51	60	35	92	36	1"-8UNC	9/16"
VRSF-1,1/8"-8UNC	7903386	1.00	3200	70	20	19	49	51	60	35	92	36	1 1/8"-8UNC	9/16"
VRSF-1.1/8"-7UNC	7903383	1.00	3200	70	20	19	49	51	60	35	92	36	1 1/7"-UNC	9/16"
VRSF- 1,1/4"-7UNC	7104486	1.82	4500	87	26	24	60	66	75	44	114	48	1 1/4"-7UNC	3/4"
VRSF- 1,1/2"-6UNC	7104487	3.60	7000	103	32	29	72	76	97	53	135	54	1 1/2"-6UNC	7/8"
VRSF- 1,3/4"-5UNC	7104488	4.95	9000	121	37	33	84	86	111	62	158	63	1 3/4"-5UNC	1"
VRSF- 2"-4.5UNC	7104489	7.60	12,000	138	42	42	94	100	128	70	180	72	2"-4.5UNC	1-1/8"
