RUD WBPG Hoist ring on plate for bolting down (c/w M48 RUD bolts)

Frequently bought together

On Sale

RUD WBPG Hoist ring on plate for bolting down (c/w M48 RUD bolts)

From: £6,811.61Ex. VAT ~~£7,568.45~~

The RUD WBPG hoist ring on a plate for bolting down is one of the more heavy duty products from RUD. With a safety factor of 4:1 and is capable of lifting up to 250 tons.

- Up to 250,000 kg capacity

- Heavy duty design

- Full 360˚ rotation

- Ball bearing mounted for heavy loads

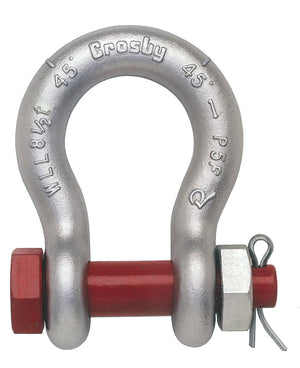

Crosby G-2130 Bolt Type Anchor Bow Shackle

From: £9.83Ex. VAT

The Crosby G-2130 Bolt Type Anchor Bow Shackle is a heavy-duty lifting and rigging shackle designed for applications requiring multi-leg slings, side loading, or greater articulation.

- Sizes available 0.33t to 150t

- Forged from quenched and tempered alloy steel

- Finish Galvanised

Total: £0.00

RUD WBPG Hoist ring

The RUD WBPG hoist ring on a plate for bolting down is one of the more heavy duty products from RUD. With a safety factor of 4:1 and is capable of lifting up to 250 tons. The hoist ring is able to rotate full 360˚ thanks to its integrated ball bearings, The hoist ring uses these ball bearings to ensure a perfect connection every time. In true RUD fashion, all the hoist rings are finished in a gloss pink.

WLL up to 250t
With RUD-bolts
Removable suspension ring in the shape of a shackle for the attachment of cable-laid grommets (with heavy load cable eyes)
Loadable from any side in the direction of pivot, thereby suitable for lifting and turning of loads
Swivel bolt with ball bearing (for a shock-free turning by 360°)

Instruction_Handbook_9c1ba89d-72e2-4998-a2a8-354c714b7287.pdf

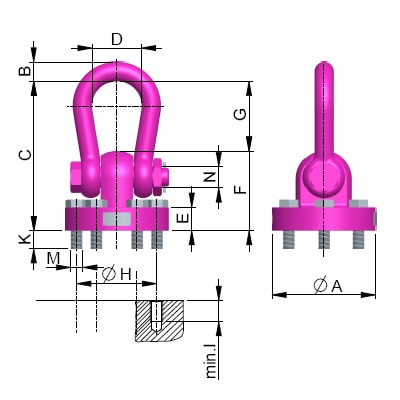

Model	Product Code	Weight (kg)	Nominal WLL (kg)	T (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	I (mm)	K (mm)	M (mm)	N (mm)
WBPG-85t	7993712	170	85,000	577	400	75	577	190	89	304	273	310	73	71	M48	83
WBPG-100t	7993245	198	100,000	577	400	83	577	190	89	304	273	310	73	71	M48	83
WBPG-120t	7900917	360	120,000	651	571	95	651	238	110	334	307	445	77	75	M48	95
WBPG-200t	7900383	678	200,000	880	650	120	880	290	100	460	426	500	73	71	M48	130
WBPG-250t	7905690	992	250,000	920	730	130	920	305	138	496	424	580		72	M48	140

On Sale

RUD WBPG Hoist ring on plate for bolting down (c/w M48 RUD bolts)

From: £6,811.61Ex. VAT ~~£7,568.45~~

Est. lead time to dispatch: Same Day Before 1pm

The RUD WBPG hoist ring on a plate for bolting down is one of the more heavy duty products from RUD. With a safety factor of 4:1 and is capable of lifting up to 250 tons.

- Up to 250,000 kg capacity

- Heavy duty design

- Full 360˚ rotation

- Ball bearing mounted for heavy loads

CAPACITY | CODE
