HV Manual Driver Hydraulic Hand Stackers

Frequently bought together

On Sale

HV Manual Driver Hydraulic Hand Stackers

From: £1,248.61Ex. VAT ~~£1,387.34~~

Ideal for the occasional, internal application of stacking and transporting of palletised goods, loading and unloading of shelves and lorries.

Capacity 500 or 1000 kg
Freelift up to 1520 mm
Ergonomic safety control handle for one-hand operation

25mm Ratchet Strap - Endless - MBS 1.4 Tonne

From: £8.00Ex. VAT

Our Heavy Duty Ratchet Straps are designed for secure and reliable load restraint in demanding commercial and industrial applications.
- Webbing Width: 25mm

- Material: Webbing to BS EN 12195-2:2001

- Minimum Breaking Strength (MBS): 1.4 Tonne

Total: £0.00

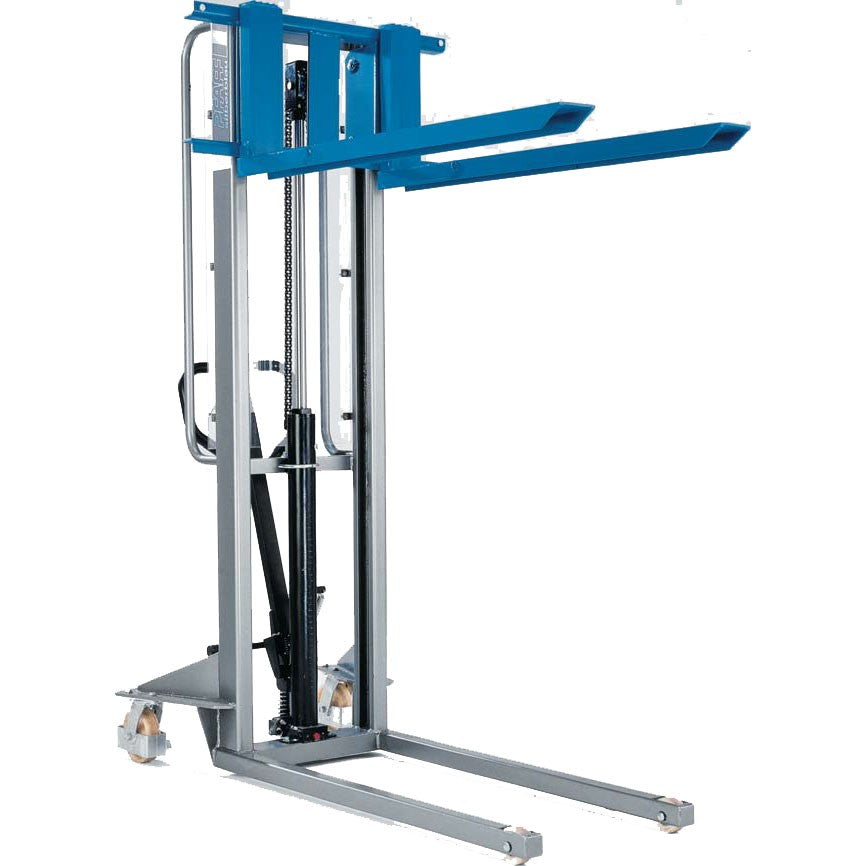

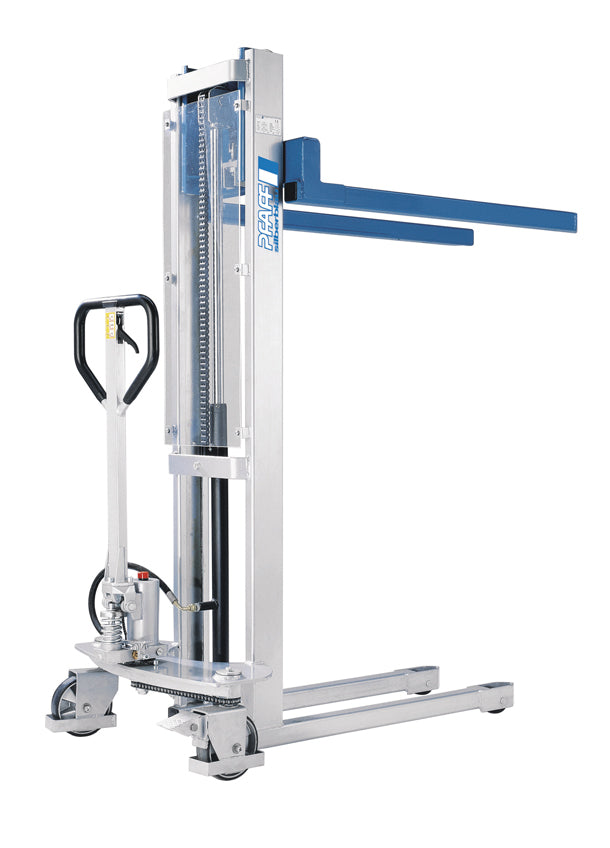

HV 0516, HV 1008 and HV 1016 hydraulic hand stackers

Capacities: 500 - 1000kg

Manual drive and manual lifting

Range of sturdy, versatile hydraulic manual drive/lift stackers with variable features.

Ergonomic safety control handle for one-hand operation of lifting, driving and lowering.
Easy handling due to forced steering rollers.
Lowering speed can be finely metered for sensitive lowering of the load.
Single-acting hand pump with increased lift per handle stroke.
Quick-lift for loads up to 100 kg.
Robust mast construction with hard chromium plated piston.
Steering roller with brake for safe parking of the hand stacker.

Model			HV 0516	HV 1008	HV 1016
Lifting capacity		kg	500	1000	1000
Steering/load wheels*			NYL/PUR	PUR/PUR	PUR/PUR
Wheel size front		mm	150 x 40	180 x 50	180 x 50
Load wheel size rear		mm	80 x 35	80 x 55	80 x 55
Number of wheels front/rear			2/2	2/2	2/2
Close mast height	h1	mm	2000	1300	1965
Load centre	c	mm	600	600	600
Free lift	h2	mm	1520	810	1510
Mast height extended	h4	mm	2000	1300	1965
Wheelbase	y	mm	1630	1075	1075
Fork height (maximum)	h3+h13	mm	1600	900	1600
Fork height (lowered)	h13	mm	80	90	90
Total unit length	L1	mm	1690	1675	1675
Total unit width	B	mm	800	765	765
Useable fork length	l	mm	1150	1122	1122
Fork widths x height	e x s	mm	100 x 45	60 x 60	60 x 60
Outside dimension of forks	b1	mm	200 - 770	570	570
Floor/ground clearance	m1	mm	25	25	25
Turning radius	Wa	mm	1500	1445	1445
Weight		kg	217	179	205

¹ PUR … Polyurethane

Videos

On Sale

HV Manual Driver Hydraulic Hand Stackers

Name: HV Manual Driver Hydraulic Hand Stackers
Brand: Pfaff Silberblau
SKU: HV-1-2
Price: 1248.61 GBP
Availability: InStock

From: £1,248.61Ex. VAT ~~£1,387.34~~

Est. lead time to dispatch: 2-3 Days

Ideal for the occasional, internal application of stacking and transporting of palletised goods, loading and unloading of shelves and lorries.

Capacity 500 or 1000 kg
Freelift up to 1520 mm
Ergonomic safety control handle for one-hand operation

HV hydraulic hand stackers
