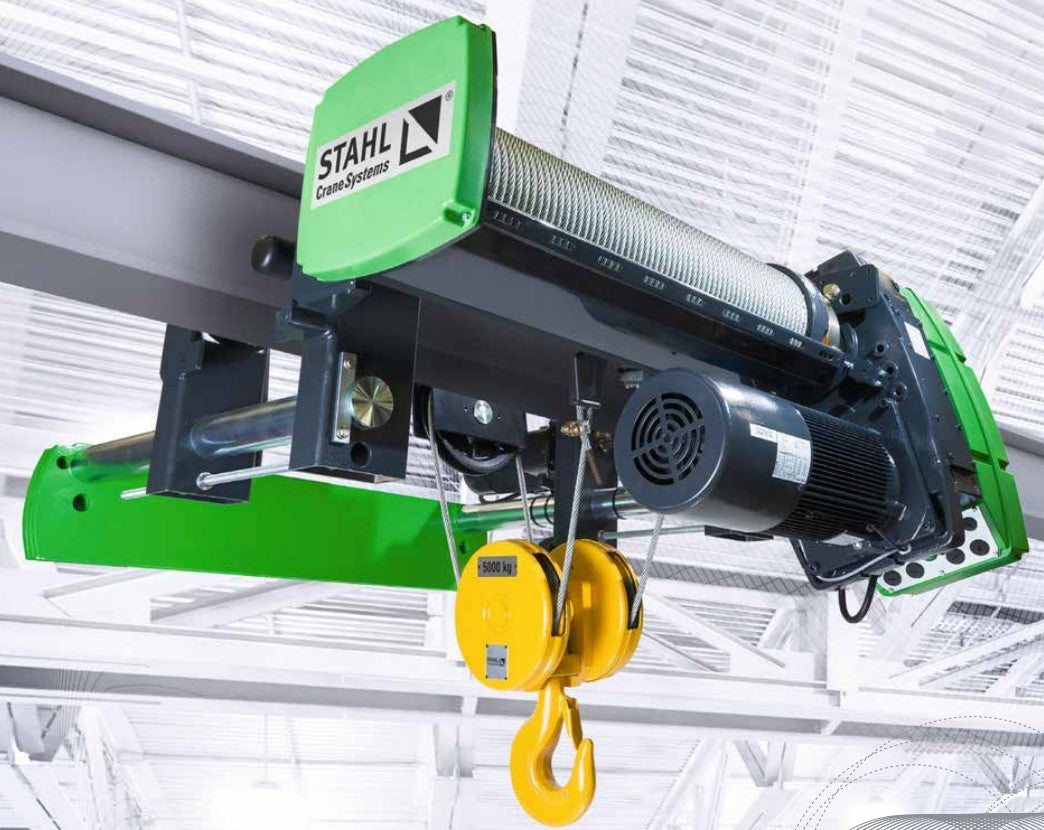

Stahl SH Wire rope hoist

The SH wire rope hoist portfolio is known around the world as a premier offering in advanced lifting and crane technology. With a compact design, high-performance features, and field-proven, low-maintenance components, the SH is a go-to wire rope hoist for end users, crane builders, and system manufacturers, globally.

Standard and custom precision-manufactured components can be combined to provide the ideal specialised solution for many applications. Due to its modular design, the SH can be tailored to your exact requirements and needs. The SH portfolio is available in capacities ranging from 500 kg to 32,000 kg in five frame sizes with 27 load capacity variants. These wire rope hoists can be used for stationary hoisting or together with a trolley for use in standard and custom cranes as well as system manufacturing.

5 sizes, 27 S.W.L. variants
Stationary version or various trolleys for cranes and systems building
Compact size thanks to U-shape
Largely maintenance-free, low wear, long service life according to FEM/ISO standards
Standard series with two lifting and two travel speeds
Particularly soft starting and braking
Standard series with high-quality safety components for improved work safety
Optionally available in explosion-proof design according to ATEX and IECEx

Model	Model code	Capacity t	Height of lift m	Duty (ISO)	Hoisting speeds m/min	Crab gauge mm
SH 3005-25 4/1	L2	2	6	M6	1/6.3	1400
	L3		10
SH 3006-25 4/1	L2	2.5	6	M5	1/6.3	1400
	L3		10
SH 3008-20 4/1	L2	3.2	6	M5	0.8/5	1400
	L3		10
SH 4012-20 4/1	L2	5	6	M5	0.8/5	1400
	L3		10
SH 4016-16 4/1	L2	6.3	6	M4	0.6/4	1400
	L3		10			1800
SH 5020-25 4/1	L2	8	6	M5	1/6.3	1400
	L3		10
	L4		20			2240
SH 5025-20 4/1	L2	10	6	M5	0.8/5	1400
	L3		10
	L4		20			2800
SH 5032-25 4/1	L2	12.5	6	M4	1/6.3	1400
	L3		10
	L4		20			2240
