Tractel Minifor TR Series Electric Wire Rope Hoist F/W Pendant

Frequently bought together

Hire Me

Tractel Minifor TR Series Electric Wire Rope Hoist F/W Pendant

From: £3,970.65Ex. VAT

Hire from £140.00

The Minifor TR Series Electric Hoist offers high-performance lifting in a compact, lightweight form—ideal for confined access and extended vertical travel in construction, industrial, and elevator applications.

- Up to 500kg capacity

- Low Weight with quick and easy installation

- Available as single and three phase models

- Easy to use, lightweight, robust, powerful

Hire Me

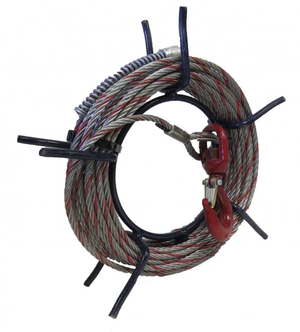

Tractel Minifor Wire Rope 6.5mm

From: £238.16Ex. VAT

Hire from £20.00

The Minifor TR Series Electric Hoist offers high-performance
Tractel Minifor® ropes are specifically engineered for use with Tractel Minifor machines. Each rope is manufactured to exceptionally tight tolerances, which are essential for the reliable and safe operation of the internal traction mechanism.

- 500kg capacity

- To Suit TR10/30/30S/50 (new models) 6.5mm

Total: £0.00

Minifor Wire Rope Hoist

Equipped with a self-clamping wire rope drive system, the Minifor TR series allows for unlimited lifting height, using a continuous rope. It is available across multiple models including TR10, TR30, TR30S, TR50, TR55, and TR110, with working load limits ranging from 100 kg to 1100 kg. Units can be configured for direct or sheaved lifting using a single or dual-fall setup. Operators can choose between plug-in control pendants or radio remote control with up to 500 m range. Power supply options include 115V, 230V (1-phase), and 400V (3-phase), depending on the model.

This hoist series is widely used in elevator installation, building maintenance, and construction lifting tasks, offering unmatched versatility and ease of use. Optional sheaving kits, anti-rotating ropes, and winders extend operational flexibility while built-in limit switches and overload protection enhance operational safety and compliance with CE Machinery Directive 2006/42/CE.

Unlimited lifting height with continuous wire rope system
Load capacities from 100 kg to 1100 kg depending on model and sheaving

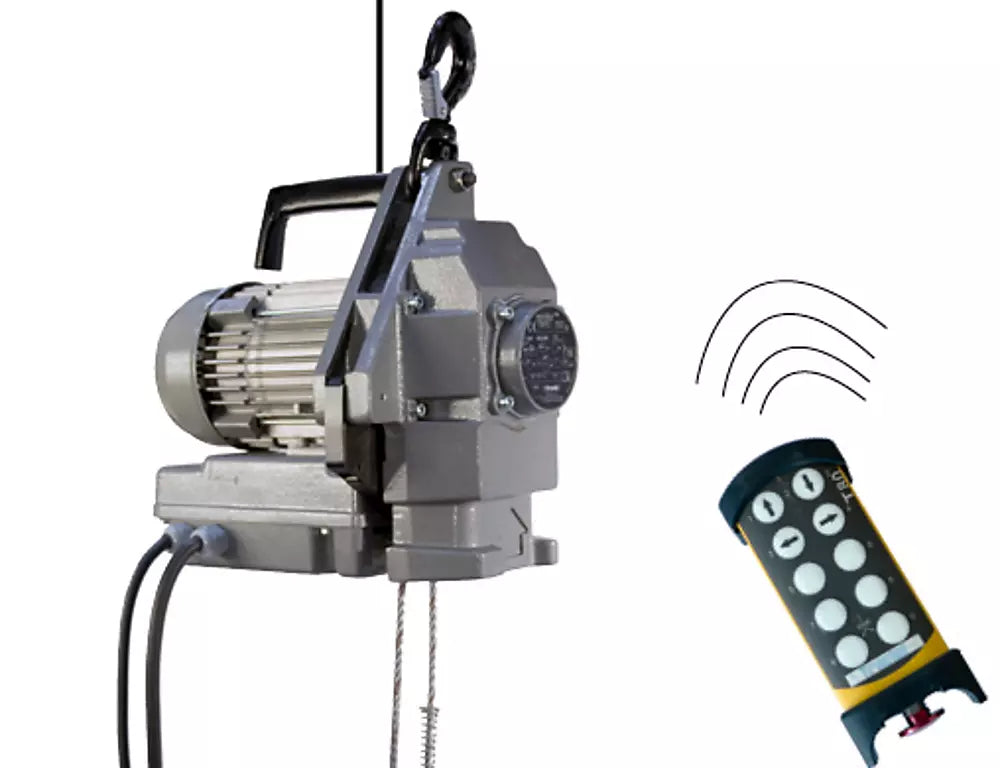

Available with radio remote control or plug-in pendant (up to 500 m range)Operates on 115V/230V single-phase or 400V three-phase power
Integrated overload protection (TR110) and IP55 protection rating
Compact, ergonomic design for easy transport and installation
Up and down adjustable limit switches for added safety

Model	Product Code	WLL (kg)	Speed m/min	Voltage (v)	Hoist Weight (kg)	Length (mm)	Width (mm)	Diameter (mm)
TR10	102989	100	15	110	32	355	420	180
TR10	42789	100	15	230	21	355	420	180
TR30	102999	300	5	110	32	355	420	180
TR30	42889	300	5	230	21	355	420	180
TR30S	106009	300	13	110	32	495	425	225
TR30S	42989	300	13	230	32	495	425	225
TR30S	44779	300	13	400	28	495	425	225
TR50	106019	500	7	110	32	495	425	225
TR50	44849	500	7	230	32	495	425	225
TR50	44899	500	7	400	28	495	425	225

Hire Me

Tractel Minifor TR Series Electric Wire Rope Hoist F/W Pendant

From: £3,970.65Ex. VAT

Est. lead time to dispatch: 1-2 days

- Up to 500kg capacity

- Low Weight with quick and easy installation

- Available as single and three phase models

- Easy to use, lightweight, robust, powerful

MODEL | CAPACITY | LIFTING SPEED

VOLTAGE

Quantity

You can hire this product

Not ready to make the commitment? Looking for this exact model? We usually have it available in our large hire fleet. If not, we’ll source a suitable alternative for your project.

Enquire on Hire

On-Site Inspections & Repairs

LOLER examinations, testing and expert maintenance to keep your equipment safe, compliant and working hard.

Bespoke Design & Manufacture

Custom lifting beams, frames and assemblies engineered for your unique load and site needs.

Testing & Maintenance Available

Keep your equipment performing at its best with our expert servicing and maintenance options.

Fast, Certified Hire

Get site-ready lifting gear delivered next day across London and the South East.
