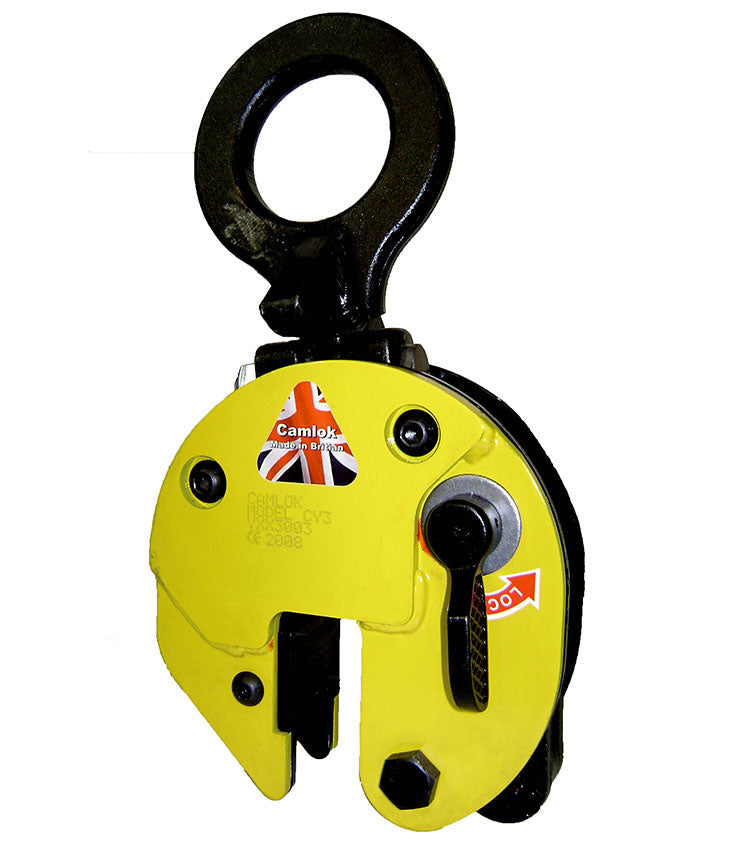

CY Hinged vertical plate clamps

The CY plate clamps with hinged hook rings can be used for the safe handling of plate at various angles. It can lift plate from the horizontal and put it down in the vertical. The hinged hook ring ensures adequate gripping pressure in every position, but the load capacity reduces. See the diagram below showing the load / force capacities.

The main benefit of the CY hinged plate clamps is that longer plates can be lifted or handled, using two clamps on a two legged chain sling (as shown in illustration), thus eliminating the need for a spreader beam.

cy-vertical-clamp-ma.pdf

Model	WLL kg*	Jaw (Z) capacity mm	Weight kg
CY1	1000	0 - 20	4.6
CY2	2000	0 - 32	14
CY3	3000	0 - 32	14

Model	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	I mm
CY1	126	270	50	49	70	95	63	12	23
CY2	192	382	80	75	96	132	92	20	30
CY3	192	382	80	75	96	132	92	20	30

On Sale

Camlok CY Hinged Vertical Plate Clamps

Name: Camlok CY Hinged Vertical Plate Clamps
Brand: Camlok
SKU: CY-1-2
Price: 315.89 GBP
Availability: InStock

From: £315.89Ex. VAT ~~£350.99~~

Est. lead time to dispatch: 1 Day

The CY plate clamps with hinged hook rings can be used for the safe handling of plate at various angles. It can lift plate from the horizontal and put it down in the vertical.

Capacities from 1000 to 3000 kg
Jaw capacities from 0 to 32 mm
Hinged hook ring provides greater flexibility

MODEL | WORKING LOAD LIMIT
