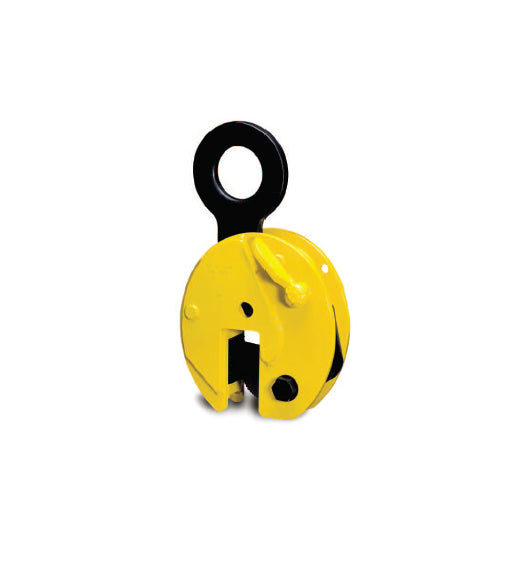

Camlok CZ Heavy duty vertical plate clamps with safety lock

From: £224.92Ex. VAT ~~£249.91~~

These clamps are primarily used for transporting sheet metal and steel plates in the vertical position, as well as lifting and rotating through 180°.

Capacities from 100 to 30,000 kg
Jaw capacities from 0 to 130 mm
Available with hook ring or link & chain attachment

Hire Me

Green Pin® Bow Shackle SC - Standard bow shackle with screw collar pin

From: £3.05Ex. VAT

Hire from £2.20

The Green Pin®Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long term durability

Total: £0.00

Heavy duty plate clamps with safety lock

These clamps are primarily used for transporting sheet metal and steel plates in the vertical position, as well as lifting and rotating through 180°. They can also be used for transporting steel constructions and profiles. It is recommended to use a pair of plate clamps in conjunction with a spreader beam for long plate.

Function

The jaw is opened and closed with the locking lever. The safety lock spring loads the cam jaw, preventing the clamp from opening even when there is no load on the jaw.

Workmanship and parts

These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs are available through the factory, or can be done by a competent person.

92-cz-operating-manual-2020-11-05_445f87a2-373b-48f7-8b83-51c8b474f93c.pdf

Model	WLL kg*	Jaw (Z) capacity mm	Weight kg**
CZ 1	100 - 1000	0 - 20	4
CZ 2	200 - 2000	0 - 32	11
CZ 3	300 - 3000	0 - 32	12
CZ 3L	300 - 3000	30 - 60	15
CZ4	500 - 4000	0- 32	12
CZ 4L	500 - 4000	30 - 60	18
CZ 6	700 - 6000	0 - 50	21
CZ 6L	700 - 6000	50 - 100	28
CZ 8	950 - 8000	0 - 50	26
CZ 8L	950 - 8000	50 - 100	32
CZ 10	1500 - 10000	0 - 50	30
CZ 10L	1500 - 10000	50 - 100	37
CZ 12	1800 - 12000	0 - 50	54
CZ 12L	1800 - 12000	50 - 100	63
CZ 15	3000 - 15000	0 - 50	75
CZ 15L	3000 - 15000	50 - 100	88
CZ 20	4000 - 20000	0 - 65	123
CZ 20L	4000 - 20000	65 - 130	136
CZ 30	6000 - 30000	0 - 65	195
CZ 30L	6000 - 30000	65 - 130	295

Model	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm
CZ 1	140	254	51	48	70	83	13	19
CZ 2	197	323	67	68	93	110	20	20
CZ 3	197	371	80	68	93	110	20	30
CZ 3L	228	390	80	68	93	110	20	30
CZ4	197	371	80	68	93	129	20	30
CZ 4L	228	390	80	68	93	129	20	30
CZ 6	293	484	89	95	143	129	25	35
CZ 6L	362	524	89	95	143	129	25	35
CZ 8	293	492	89	95	143	129	25	42
CZ 8L	362	524	89	114	143	129	25	42
CZ 10	293	545	110	95	143	139	25	45
CZ 10L	362	545	110	114	143	139	25	45
CZ 12	360	613	130	125	162	154	30	55
CZ 12L	460	678	130	175	162	154	30	55
CZ 15	360	613	130	125	162	204	45	55
CZ 15L	460	678	130	175	162	204	45	55
CZ 20	462	755	130	165	210	235	45	65
CZ 20L	560	805	130	195	210	235	45	65
CZ 30	462	732	60	165	210	295	65	-
CZ 30L	560	797	60	195	210	295	65	-
