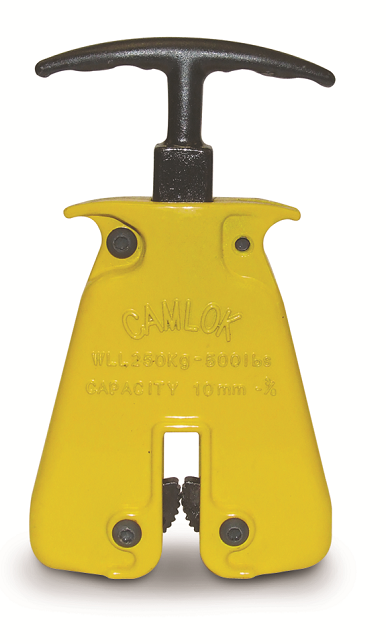

HGC Hand Grip Clamps

The HGC hand grip clamps are suited for the individual transportation of light and thin materials. They have a jaw capacity of up to 10mm, and can lift up to 250kgs. To operate the clamp you simply press down on the hand grip which compresses a spring. This allows the clamp to open and you simply slide the clamp on to the material to be lifted.

Additional lever in clamping mechanism provides a very high gripping force
Can be used to lift plate from horizontal to vertical position and vice versa
Can be used on all structural steel plates and sections up to a surface hardness of 300 Brinell (32HRc)
Not suitable for steel over 300 Brinell, stainless steel, lead, copper and materials over 120ºC/ 250ºF surface temperature
Enables the operator to open and attach the clamp to sheet material by depressing the lifting handle
Two pre-tensioned, hardened, serrated toothed jaws grip the sheet securely when the handle is released, preventing plate slippage
They have a jaw capacity of up to 10mm, and can lift up to 250kgs.

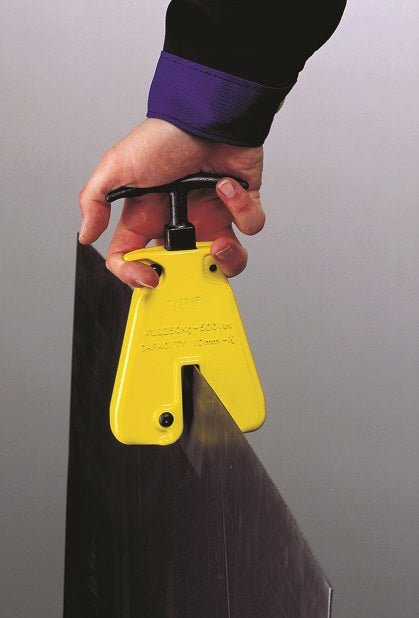

To operate the clamp you simply press down on the hand grip which compresses a spring. This allows the clamp jaw to open and you simply slide the clamp on to the material to be lifted.
Pressing down on the hand grip releases the tension spring, allowing the clamp to open and slide onto the plate.

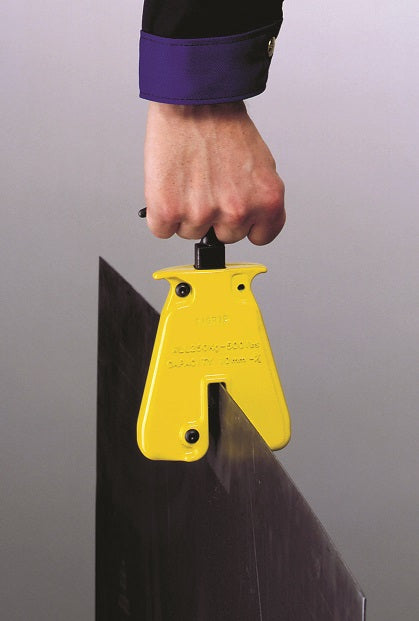

The plate can be transported by holding onto the ergonomically designed hand grip.
The positive spring pressure prevents the plate from accidental slipping out of the clamp.
Design factor 4:1

camlok-hgc-product.pdf

Model	Type / option	WLL kg*	Jaw capacity mm	Weight kg*
HGC 250	Standard	250	0 - 10	1.4
HGC 250 EX	Ext. handle	250	0 - 10	1.5
HGC 250 EB	Eye bolt	250	0 - 10	1.4

* Per clamp. Please contact our sales team for full technical drawings EX = Extended handle (300mm) EB = Eye Bolt (Instead of handle)

Dimensions	HGC250	HGC250 EB	HGC250 EX
A, mm	184	280	460
B, mm	105	105	105
C, mm	12	12	12
D, mm	53	53	53
Thickness, mm	40	40	40
