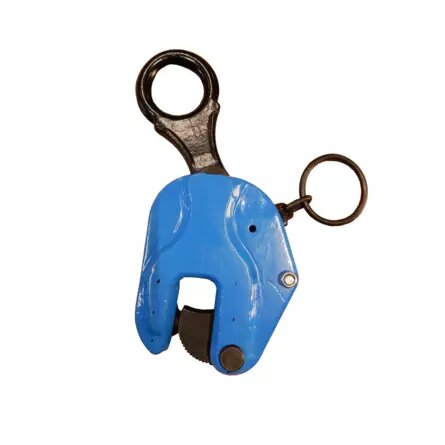

KF Plate Clamp
The KF Clamp is a small and lightweight lifting clamp optimised for working in confined spaces where precise load control is essential. It is suitable for lifting and rotating thin metal sheets in vertical or horizontal positions and is frequently used in light manufacturing and sheet metal fabrication.
Its compact frame provides high handling accuracy, with a locking lever mechanism that engages automatically when under load. The clamp’s gripping cam design ensures consistent clamping force, while the load ring allows for 180° rotation. Available in standard versions or with a safety locking device, the KF Clamp covers a working load limit (WLL) range from 250 to 750 kg.
This clamp is well suited for use in metal workshops, assembly areas, and maintenance operations where space and weight constraints are critical. Its durability and versatility allow for frequent use on various light-duty lifting tasks, especially where installation and removal speed is important.
| Reference | Code | WLL (t) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KF 1 0-22 | 189418 | 1 | 48 | 62 | 35 | 22 | 114 | 14 | 279 | 66 | 3.8 |
| KF 2 0-30 | 189428 | 2 | 58 | 76 | 45 | 30 | 154 | 15 | 314 | 83 | 6.3 |
| KF 3 0-35 | 189438 | 3 | 62 | 75 | 48 | 35 | 170 | 19 | 378 | 93 | 9.6 |
| KF 5 0-50 | 189448 | 5 | 80 | 95 | 69 | 50 | 213 | 23 | 466 | 106 | 19 |
