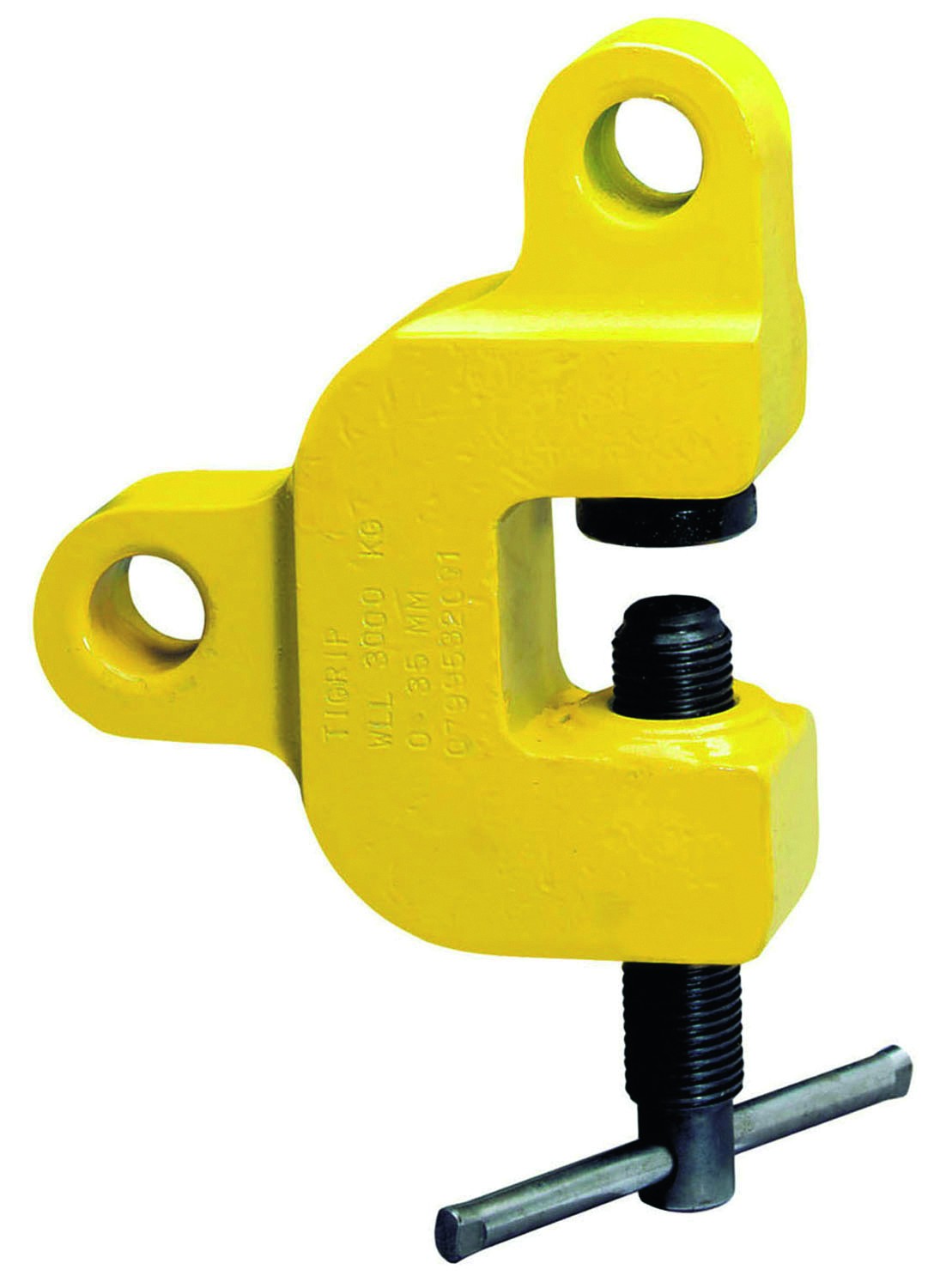

TSZ Two way screw clamps

Capacity 500 - 7500 kg

The TSZ two way screw clamps offer many possible uses. Ideally suited for the construction industry. The unique design of the spindle makes it easy to attach to angle plate.

This is achieved by simply turning the handle which applies the pressure to the plate holding it securely. Two lifting points enabling it to pull in two different directions.

Capacity 500 - 7500 kg
The spindle is closed only finger tight.
When the screw clamp is tightened and lifting begins, the pivoting pad clamping system produces a wedging action against the material, holding it securely.
The TSZ ‘two way’ screw clamps offers many possible uses. Ideally suited for the construction industry.
The unique design of the spindle makes it easy to attach to ‘angle’ plate.
This is achieved by simply turning the handle which applies the pressure to the plate holding it securely.
Two lifting points enable it to be pulled in two different directions.
The surface of the material to be lifted must not exceed a hardness level of HRC 50/Brinell 480.
Shackles are not supplied.

Model	WLL kg*	Jaw capacity mm	Weight kg*
TSZ 500	500	0 - 28	3
TSZ 1500	1500	0 - 35	5
TSZ 3000	3000	0 - 35	9
TSZ 5000	5000	0 - 40	16
TSZ 7500	7500	0 - 40	21

*Per clamp.

Model	A,mm	B,mm	C,mm	D,mm	E,mm	F,mm	ØG,mm	H,mm	I,mm	J,mm
TSZ 500	28	43	45	125	72	83	26	16	12	35
TSZ 1500	35	60	55	158	93	99	35	24	16	50
TSZ 3000	35	67	65	195	114	120	46	34	17	60
TSZ 5000	40	85	75	230	133	150	55	40	18	75
TSZ 7500	40	92	75	240	143	162	65	50	23	80
