William Hackett WH-GT Geared Trolley | 500Kg to 10 Tonnes

From: £154.33Ex. VAT ~~£171.48~~

WLL: 0.5 - 10 t
Beam width range 50 - 305 mm
Safety factor 4:1

Hire Me

Crosby G-209 Alloy Bow Shackle

From: £6.23Ex. VAT

Hire from £2.20

The Crosby G-209 Screw Pin Anchor Shackle is a trusted choice for lifting, rigging and load-securing applications across construction, industrial, marine and transport environments.

- Sizes available 0.33t to 55t

- Hot-dip galvanized

- Forged, Quenched & Tempered, with alloy pins

Total: £0.00

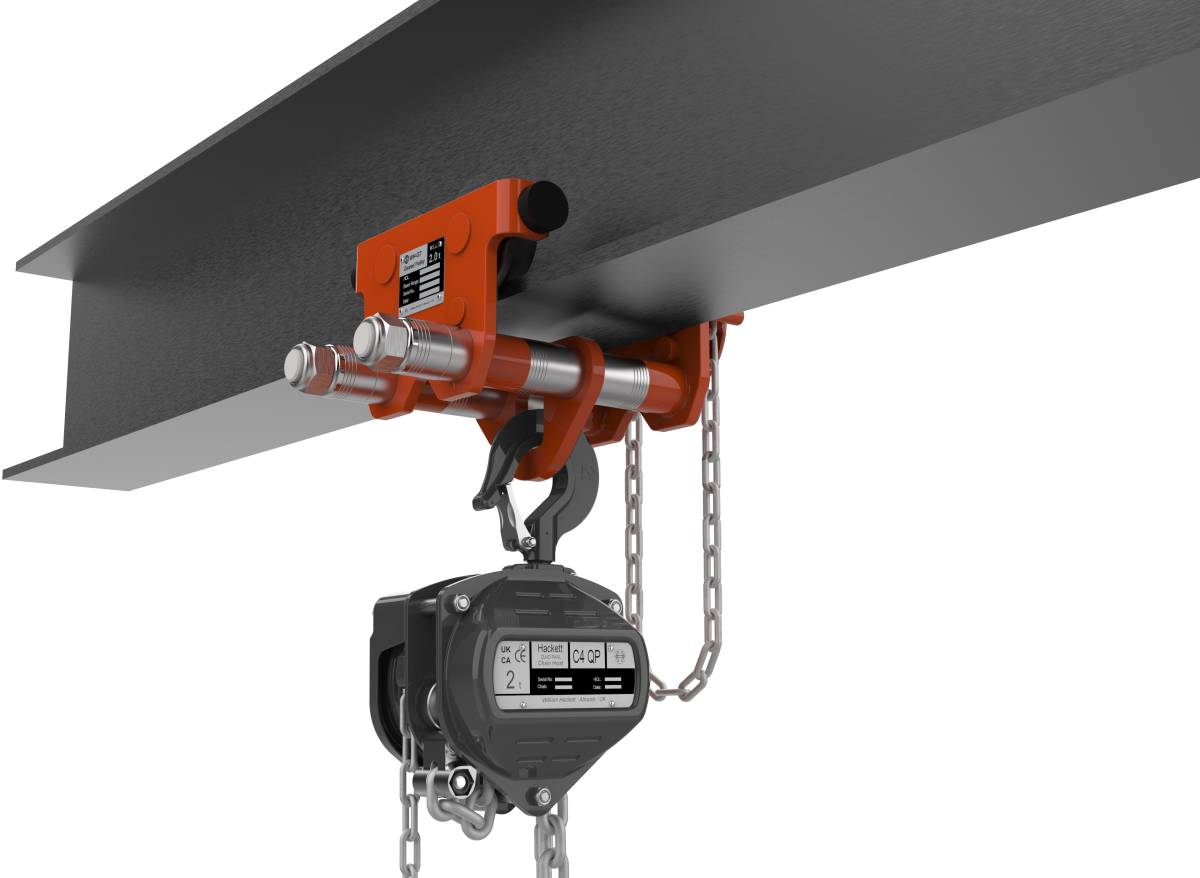

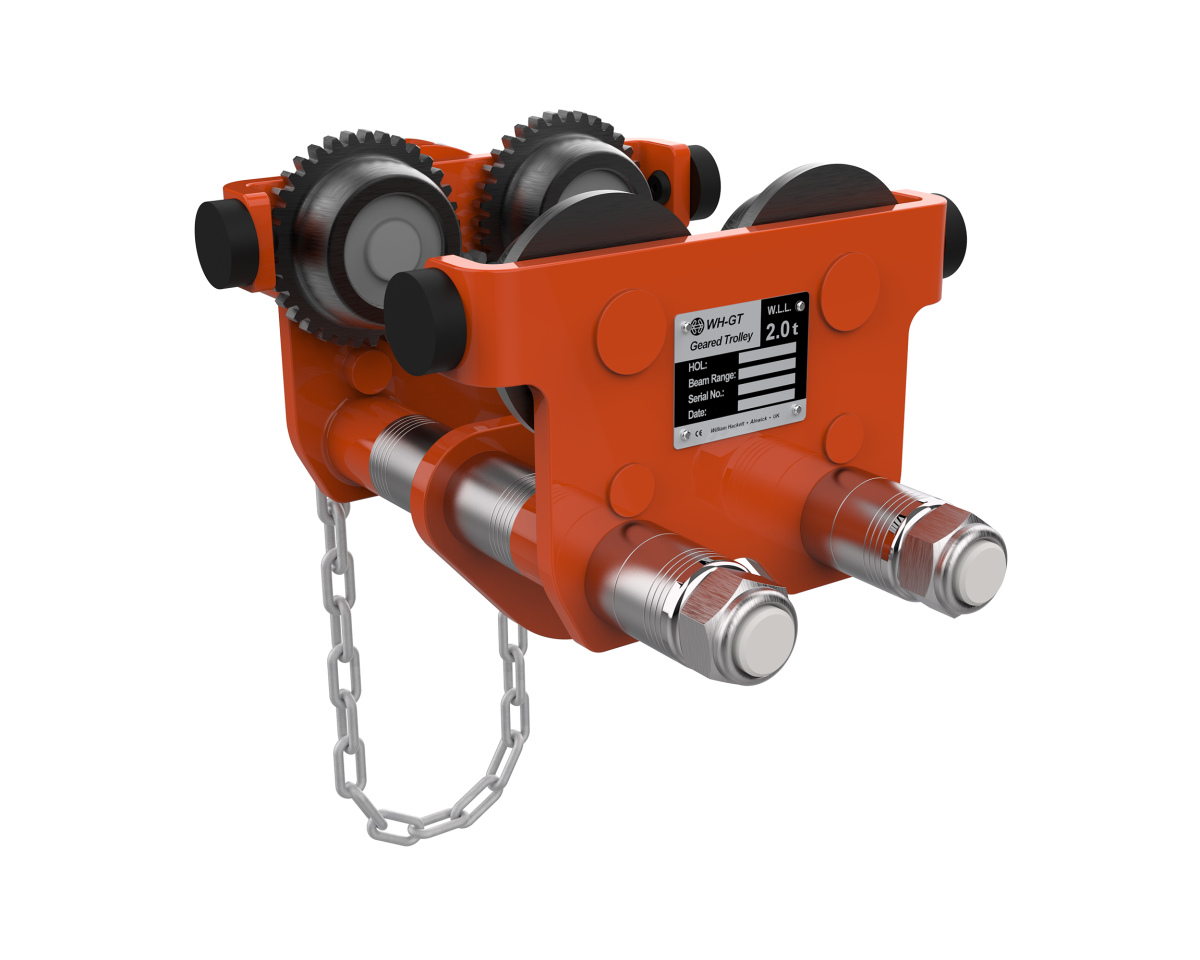

The William Hackett Geared Trolley is designed, developed and tested in the UK. It has 2 bars which creates greater stability and has various sized spacers which are used to determine the distance between the 2 plates and the beam width. The trolley is maneuvered along the beam by pulling the hand chain which is attached to a drive gear. This is helpful when the trolley is suspended out of reach. We can offer training on safe use and inspection.

WLL Range - 500 kg - 10t
Proof load test - 1.5 x WLL
Finish - Orange powder coated paint
Bars - Twin bar, zinc plated for added corrosion protection
Extended bars - Can be supplied on request for wider beam widths
End stoppers - To prevent damage
Anti tilt - To prevent damage or loss of load
Wheels - Universal wheels to suit tapered or flat flange
Handchain - It has been designed so that the bottom of the hand chain loop is 500mm from ground level.

Specification

Part Code	WLL tonnes	Min. Radius of Curve m	A mm	B mm	C mm	E mm	I Beam Width Standard Range 1 D mm	I Beam Width Extended Range 2 D mm	Standard Range 1 F mm	Extended Range 2 F mm	Standard Range 1 Mass kg	Extended Range 2 Mass kg
57.05	0.5	0.8	199	159	22	28	50 - 203	-	322	-	7.6	-
57.1	1	0.9	221	183	30	30	64 - 203	64 - 305	326	431	9.8	11.2
57.2	2	1	272	218	36	36	88 - 203	88 - 305	346	448	15.7	17.6
57.32	3.2	1.2	318	272	45	49.5	100 - 203	100 - 305	365	472	26.4	28.9
57.5	5	1.3	391	302	55	57	114 - 203	114 - 305	381	483	39.6	43.4
57.1	10	2	403	372	65	74	124 - 203	124 - 305	403	506	70.5	75
