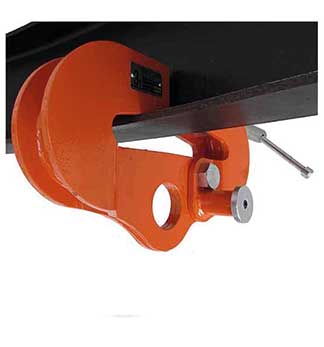

William Hackett WH-UBC universal Beam Clamp

Frequently bought together

On Sale

William Hackett WH-UBC universal Beam Clamp

From: £377.51Ex. VAT ~~£419.45~~

The William Hackett Universal beam Clamp has been designed not only for vertical use, but also for side load applications, where conventional clamps are not suitable.

WLL: 2 - 10 t
Beam Width: 76 - 405 mm
Safety Factor 4:1

Hire Me

Crosby G-209 Alloy Bow Shackle

From: £6.23Ex. VAT

Hire from £2.20

The Crosby G-209 Screw Pin Anchor Shackle is a trusted choice for lifting, rigging and load-securing applications across construction, industrial, marine and transport environments.

- Sizes available 0.33t to 55t

- Hot-dip galvanized

- Forged, Quenched & Tempered, with alloy pins

Total: £0.00

Manufactured in accordance with BS EN13155: 2003 + A2:2009 -Cranes - Safety - Non fixed load lifting attachments.

The William Hackett Universal beam Clamp has been designed not only for vertical use, but also for side load applications, where conventional clamps are not suitable.

The universal Beam Clamp is suitable for pulling and lifting at angles across the beam or as a semi-permanent anchor point.

It can be loaded at any angle and eliminates the use of spreader beams in various lifting operations.

Fitted with an adjustable locking mechanism, ensuring secure clamping to the beam.

Built-in suspension point for low headroom design.

Lightweight design allowing for quick clamping and unclamping.

WLL capacities available at 3.2 tonnes, 5.0 tonnes and 10.00 tonnes and designed to accommodate a range of beam widths.

The William Hackett Universal Beam Clamp has been designed for vertical use, and side load applications, where conventional clamps are not.

The Universal Beam Clamp is suitable for pulling and lifting at angles across the beam or as a semi-permanent anchor point.

It can beloaded at any angleand eliminates the use of spreader beams in various lifting operations.

Fitted with an adjustable locking mechanism, ensuring secure clamping to the beam.

Built-in suspension point for low headroom design.

Lightweight design allowing for quick clamping and unclamping.

Our 10.0 tonne extra wide clamp is designed to accommodate a range of beam widths and thicknesses.

Data_Sheet_-_WHDS-0025_028_WH_UBC_UNIVERSAL_BEAM_CLAMP_18.2.25.pdf

Part Code	WLL tonnes	B mm	A Min mm	A Max mm	C mm	D mm	E mm	F mm	G mm	Beam Thickness mm	Beam Width mm	Mass kg
28.2	2	203	420	450	22.5	Ø58	32.5	118	16	25.4	76-204	9.5
28.32	3.2	235	520	550	28	Ø60	33	133	20	25.4	125-204	14.7
28.5	5	270	582.5	618.5	37.5	Ø75	36	157	24	25.4	125-305	28.3
28.1	10	270	582.5	618.5	35	Ø80	36	225	44	25.4	125-305	37.8
028.1000.E	10	298	700	770	38	Ø80	70	230	44	40	225-405	47
