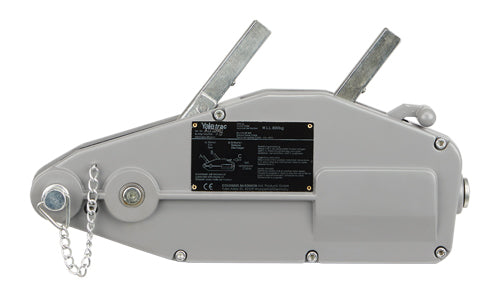

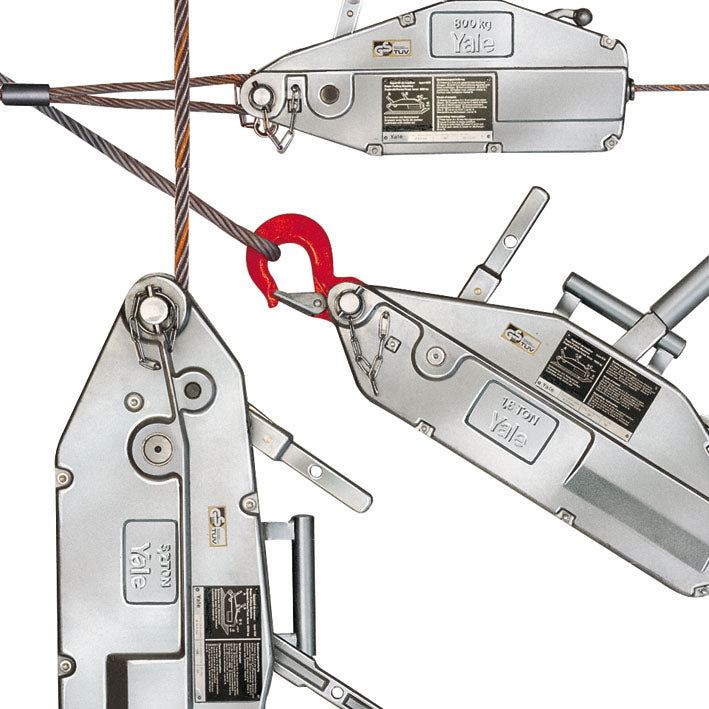

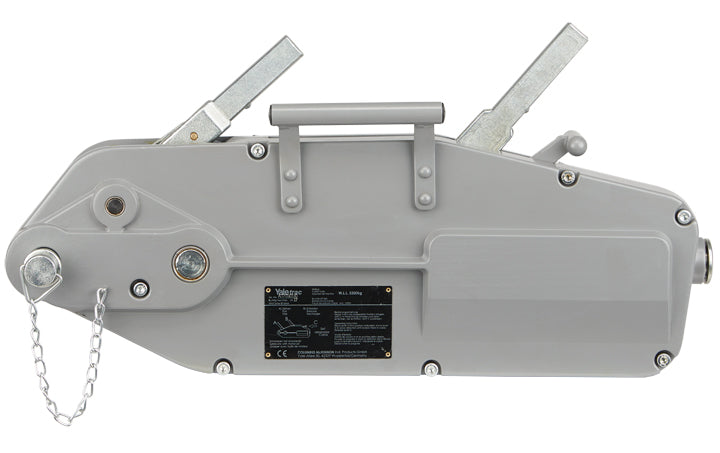

Yaletrac Heavy Duty Cable Puller

Capacities: 800 - 3200 kg

It has a light weight, compact, high tensile aluminium alloy housing with a large flat bottom surface for increased stability in horizontal as well as vertical working position.

Forward and reversing levers in tandem provide slim design and assure power transfer along the centre line.
Overload protection is by a shearing pin in the forward lever. Spare shear pins are conveniently located in the carrying handle or operating lever. A lever disengages the rope clamp system allowing easy, smooth installation of the rope.
Yaletrac uses a special flexible rope. It has six strands with a steel core and is identified by an orange strand. The rope is tapered at one end for easy threading and fitted with an eye sling hook with safety latch on the other end.
The parallel arrangement of the clamping system protects the rope by distributing the clamping forces evenly. A long rope advance per each lever stroke increases the working speed.
The large opening in the top of the unit allows easy cleaning: simply flush the unit with water, apply motor oil for lubrication and the Yaletrac is again ready for use.

OPTIONS:

Eye sling hook with safety latch
Longer ropes
Drum reel
Storage box

Yaletrac_-_Datasheet_English.pdf

Model	Capacity kg	Rope advance per double stroke mm	Lever pull at WLL daN	Lever length mm	Rope diameter mm	Weight without rope kg	Rope weight kg/m
Y 08	800	60	24	800	8.4	7	0.29
Y 16	1600	60	30	790/1190	11.2	14	0.53
Y 32	3200	40	50	790/1190	16	21	1

All ropes are fused and tapered at one end. The other end terminates with eye hook in a heart shaped thimble secured by a mechanical splice.

Dimensions	Y 08	Y 16	Y 32
L, mm	430	545	680
H, mm	168	190	230
H1, mm	240	270	330
B, mm	60	72	91
B1, mm	-	97	110
