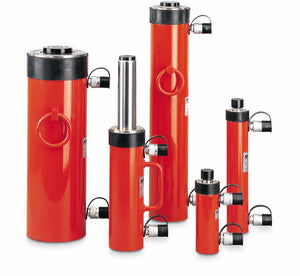

YH Universal Cylinders

From: £388.89Ex. VAT ~~£457.52~~

Double-acting cylinders with high retraction speed. The powerful return of the piston, the extra long piston bearings, and the high-grade material make these cylinders extremely robust and suitable for the toughest of jobs.

Capacity 5 - 200 t
Operating pressure max 700 bar
Double-acting with hydraulic return

Total: £0.00

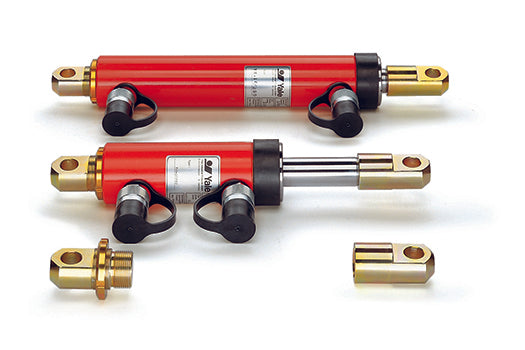

AYH Clevis eye mountings

Clevis eye mountings are screwed onto the piston and bottom of the hydraulic cylinder whenever mounting conditions require a pivoting of the cylinder.

The pivot pin allows for slight misalignment as the cylinder extends and retracts, preventing damaging side loads on the cylinder's piston rod and seals.
Clevis mounts can be used on cylinders in any orientation—horizontal, vertical, or at an angle.
The design of clevis mounts and brackets makes them one of the easiest mounting options to install, adjust, or replace.
The U-shaped bracket and pivot pin provide a reliable and secure connection between the cylinder and the load it moves.
This flexibility prevents strain on the cylinder, increasing its operational life by avoiding premature wear and tear.
Test AM 9.4

Yale_AYH_Clevis_Eye_Mount_Datasheet_-_English.pdf

Model	Art.-No.	Suitable for cylinder	Suitable for	Weight kg
AYH-5-1	N14500808	YH-5/30, YH-5/80, YH-5/150	Cylinder base	0.3
AYH-5-2	N14500809	YH-5/30, YH-5/80, YH-5/150	Piston	0.3
AYH-10-1	N14500810	YH-10/30, YH-10/80, YH-10/150, YH-10/250	Cylinder base	0.6
AYH-10-2	N14500811	YH-10/30, YH-10/80, YH-10/150, YH-10/250	Piston	0.6
AYH-20-1	N14500812	YH-20/150, YH-20/250	Cylinder base	2.1
AYH-20-2	N14500813	YH-20/150, YH-20/250	Piston	2.1

Model	AYH-5-1	AYH-5-2	AYH-10-1	AYH-10-2	AYH-20-1	AYH-20-2
A, mm	M27 x 2	M18 x 1.5	M36 x 2	M27 x 2	M45 x 2	M36 x 2
B, mm	-	35	-	40	-	70
C, mm	35	35	38	38	50	50
D, mm	35	35	42	42	65	65
F, mm	15	15	25	25	35	35
E, mm	16	16	20	20	30	30
G¹, mm	M35 x 1.5	-	M40 x 1.5	-	M70 x 2	-
H, mm	-	-	-	21	-	24
J, mm	18	-	21	-	23	-
