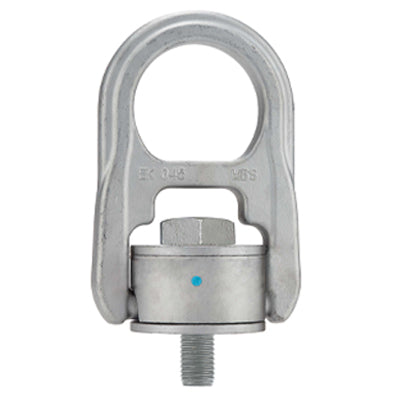

Yoke Swivel Hoist Ring with Alloy Steel Washer - 203

The Yoke Swivel Hoist Ring 203 provides safe, flexible lifting from any direction, rotating 360° and pivoting 180° under load. Manufactured from forged alloy steel, quenched and tempered for maximum strength, it delivers reliable performance in demanding lifting applications.

All load-rated components are 100% magnaflux crack tested and fully traceable to individual test certification. Metric threaded bolts are proof tested to 2.5× the WLL and fatigue rated to 20,000 cycles at 1.5× WLL. Manufactured and tested in accordance with EN 1677-1 and meeting or exceeding ASME B30.26 requirements, the Yoke 203 offers assured safety with quick, simple installation using only a tapped hole.

Rotates through 360° and pivots 180°, and simultaneously allows lifting from any direction
Manufactured from forged alloy steel, quenched and tempered
Manufactured and tested in accordance with EN1677-1
Load rated parts are 100% magnaflux crack detected
Individual forged parts and cap screw are traceable to Test Certification
Bolts are Metric thread
Proof tested to 2.5 times the WLL
Fatigue rated to 20,000 cycles at 1.5 times the WLL
All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
Quick and simple assembly, just a tapped hole is required

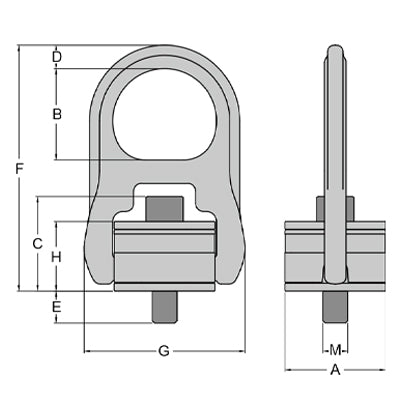

Product Code	Capacity/WLL (tonnes)		Thread version		Pitch	Dimensions (mm)							Torque in (Nm)	Net Weight (kg)
Product Code	5:1	4:1	M (mm)	E (mm)	DIN13	A	B	C	D	F	G	H	Torque in (Nm)	Net Weight (kg)
8-203-004	0.40	0.50	M8	17	1.25	40	41	41	9	102	65	33	10	0.4
8-203-005	0.45	0.55	M10	11	1.50	40	41	43	9	102	65	33	16	0.5
§ 8-203-005L	0.45	0.55	M10	26	1.50	40	41	43	9	102	65	33	16	0.5
8-203-010	1.05	1.30	M12	15	1.75	65	58	57	15	158	105	45	38	1.7
§ 8-203-010L	1.05	1.30	M12	30	1.75	65	58	57	15	158	105	45	38	1.7
8-203-019	1.90	2.40	M16	20	2.00	65	58	61	15	158	105	45	81	1.8
§ 8-203-019L	1.90	2.40	M16	35	2.00	65	58	61	15	158	105	45	81	1.8
8-203-021	2.15	2.70	M20	25	2.50	65	58	65	15	158	105	45	136	1.8
§ 8-203-021L	2.15	2.70	M20	45	2.50	65	58	65	15	158	105	45	136	1.9
8-203-030	3.00	3.75	M20	25	2.50	85	73	74	22	204	134	54	136	4.0
§ 8-203-030L	3.00	3.75	M20	45	2.50	85	73	74	22	204	134	54	136	5.2
8-203-042	4.20	5.25	M24	26	3.00	85	73	78	22	204	134	54	312	4.2
§ 8-203-042L	4.20	5.25	M24	56	3.00	85	73	78	22	204	134	54	312	4.3
8-203-070	7.00	8.75	M30	81	3.50	100	80	77	25	218	160	58	637	6.6
8-203-110	11.00	13.75	M36	76	4.00	120	106	108	36	308	220	85	1005	15.0
8-203-125	12.50	15.60	M42	95	4.50	120	106	111	36	308	220	85	1005	16.0
8-203-135	13.50	16.90	M48	105	5.00	120	106	115	36	308	220	85	1350	16.0

* Design factor 4:1

§ Long Bolts are designed for soft metal work piece.

Surface Treatment: The Dacromet original silver colour.

Kind of attachment
Number of legs	1	2	1	2	2	2	2	3-4	3-4	3-4
Load direction	0°	0°	90°	90°	0-45°	45°-60°	unsymm.	0-45°	45°-60°	unsymm.
Product Code	WLL (t)
8-203-004	0.50	1.0	0.50	1.0	0.70	0.50	0.50	1.05	0.75	0.50
8-203-005	0.55	1.1	0.55	1.1	0.77	0.55	0.55	1.16	0.83	0.55
8-203-010	1.30	2.6	1.30	2.6	1.82	1.30	1.30	2.73	1.95	1.30
8-203-019	2.40	4.8	2.40	4.8	3.36	2.40	2.40	5.04	3.60	2.40
8-203-021	2.70	5.4	2.70	5.4	3.78	2.70	2.70	5.67	4.05	2.70
8-203-030	3.75	7.5	3.75	7.5	5.25	3.75	3.75	7.88	5.63	3.75
8-203-042	5.25	10.5	5.25	10.5	7.35	5.25	5.25	11.03	7.88	5.25
8-203-070	8.75	17.5	8.75	17.5	12.25	8.75	8.75	18.38	13.13	8.75
8-203-110	13.75	27.5	13.75	27.5	19.25	13.75	13.75	28.88	20.63	13.75
8-203-125	15.60	31.2	15.60	31.20	21.84	15.60	15.60	32.76	23.40	15.60
8-203-135	16.90	33.8	16.90	33.5	23.66	16.90	16.90	35.49	25.35	16.90
