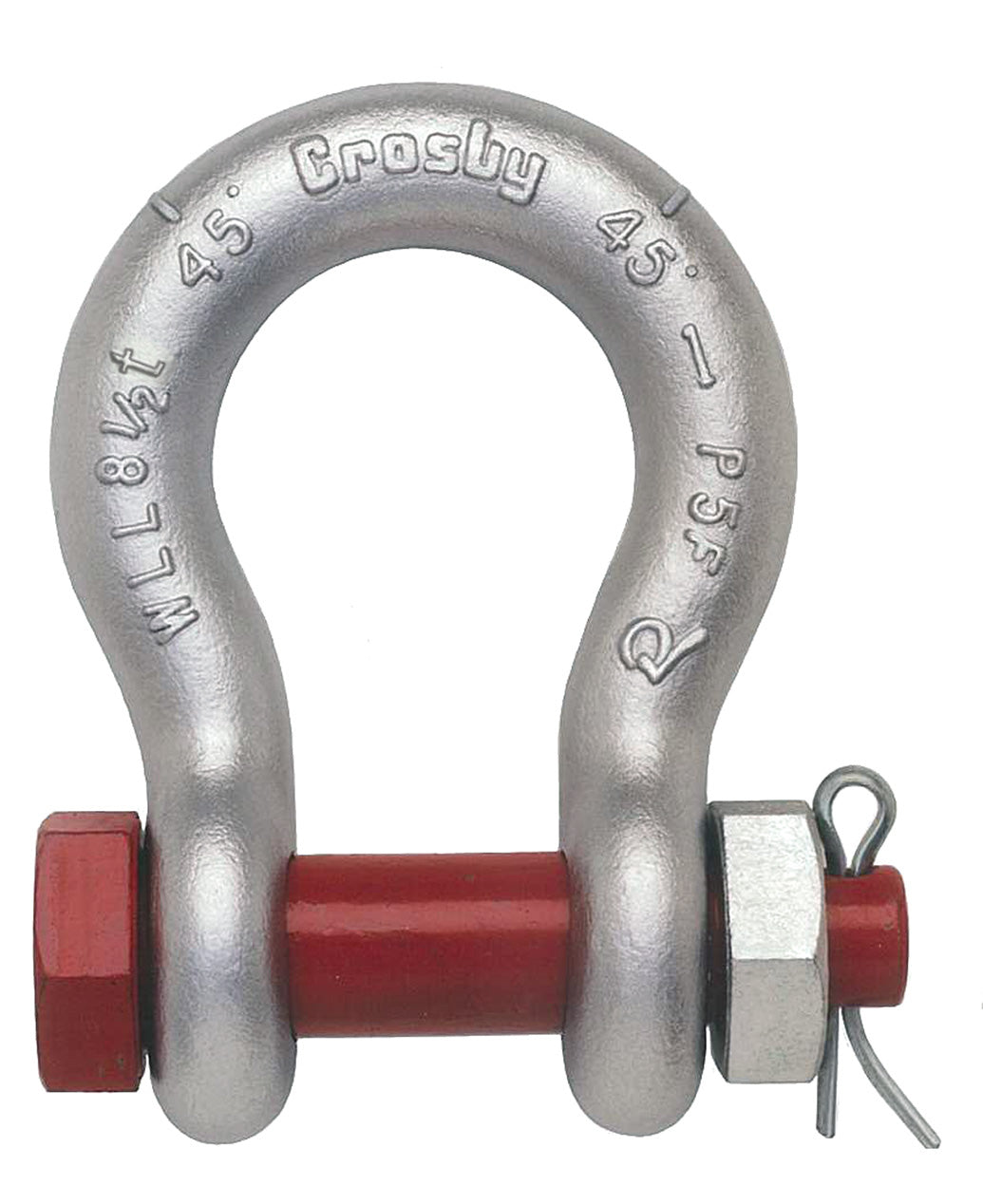

Crosby G-2130 Bolt Type Anchor Bow Shackle

The Crosby G-2130 Bolt Type Anchor Bow Shackle is a heavy-duty lifting and rigging shackle designed for applications requiring multi-leg slings, side loading, or greater articulation. Forged from quenched and tempered alloy steel, it offers exceptional strength, durability, and reliability in demanding environments. The bolt, nut, and cotter pin configuration ensures a secure, positive locking system, making it ideal for permanent or long-term installations. Each shackle is individually proof tested, clearly marked with its Working Load Limit (WLL).

Trusted across construction, offshore, marine, utilities, plant hire, and industrial lifting operations, the Crosby G-2130 Anchor Bow Shackle delivers proven performance where safety is critical.

We stock a full range of sizes ready for immediate dispatch, helping you minimise downtime and keep your lifting operations running smoothly.

Working Load Limit and Grade 6 permanently shown on every shackle.
Forged, Quenched & Tempered, with alloy bolts.
Hot-dip galvanized
Sizes 3/8 and below are mechanically galvanized.
Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit (1/3t - 55t).
Approved for use at -40° F (-40° C) to 400° F (204° C).
Meets or exceeds all requirements of ASME B30.26.
Shackles 85 metric tons and larger are individually proof tested to 2.0 times the working load limit.
Type Approval certification in accordance with ABS Marine Vessel Rules, ABS Mobile Offshore Units, and ABS Guide for the Certification of Lifting Appliances available. Certificates available when requested at time of order and may include additional charges.
3.1 Certification as standard available for charpy and statistical proof test from 3.25t up to 25 tons to DNV 2.7-1 and EN13889.
Crosby 3.25t through 25t G-2130OC anchor shackles are type approved to DNV Certification Notes 2.7-1- Offshore Containers. These Crosby shackles are statistical proof and impact tested to 31 ft-lb (42 Joules) min. avg. at -4° F (-20° C). The tests are conducted by Crosby and 3.1 test certification is available upon request.
All other 2130 shackles can meet charpy requirements of 31 ft-lb (42 Joules) avg at -4° F (-20° C) when requested at time of order.
Meets the performance requirements of Federal Specification RR-C-271, Type IVA, Grade A, Class 3, except for those provisions required of the contractor.
Look for the Red Pin®... the mark of genuine Crosby quality.

Diagram 1

Nominal Size (inch)	Working Load Limit (kg)	SKU	Weight (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	H (mm)	L (mm)	N (mm)	Tolerance +/- (C) (mm)	Tolerance +/- (A) (mm)
3/16	330	1019464	0.03	9.65	6.35	22.4	4.85	15.2	14.2	37.3	24.9	4.85	1.50	1.50
1/4	500	1019466	0.05	11.9	7.85	28.7	6.35	19.8	15.5	46.7	32.5	6.35	1.50	1.50
5/16	750	1019468	0.1	13.5	9.65	31	7.85	21.3	19.1	53	37.3	7.85	1.50	1.50
3/8	1000	1019470	0.15	16.8	11.2	36.6	9.65	26.2	23.1	63	45.2	9.65	3.30	1.50
7/16	1500	1019471	0.22	19.1	12.7	42.9	11.2	29.5	26.9	74	51.5	11.2	3.30	1.50
1/2	2000	1019472	0.36	20.6	16	47.8	12.7	33.3	30.2	83.5	58.5	12.7	3.30	1.50
5/8	3250	1019490	0.62	26.9	19.1	60.5	16	42.9	38.1	106	74.5	17.5	3.30	1.50
3/4	4750	1019515	1.23	31.8	22.4	71.5	19.1	51	46	126	89	20.6	6.35	1.50
7/8	6500	1019533	1.79	36.6	25.4	84	22.4	58	53	148	102	24.6	6.35	1.50
1	8500	1019551	2.28	42.9	28.7	95.5	25.4	68.5	60.5	167	119	26.9	6.35	1.50
1-1/8	9500	1019579	3.75	46	31.8	108	28.7	74	68.5	190	131	31.8	6.35	1.50
1-1/4	12,000	1019597	5.31	51.5	35.1	119	31.8	82.5	76	210	146	35.1	6.35	1.50
1-3/8	13,500	1019613	7.18	57	38.1	133	35.1	92	84	233	162	38.1	6.35	3.30
1-1/2	17,000	1019631	8.62	60.5	41.4	146	38.1	98.5	92	254	175	41.1	6.35	3.30
1-3/4	25,000	1019659	15.4	73	51	178	44.5	127	106	313	225	57	6.35	3.30
2	35,000	1019677	23.7	82.5	57	197	51	146	122	348	253	61	6.35	6.35
2-1/2	55,000	1019695	44.6	105	70	267	66.5	184	145	453	327	79.5	6.35	6.35
3	85,000	1019711	70	127	82.5	330	76	200	165	546	365	92	6.35	6.35
3-1/2	120,000	1019739	120	133	95.5	372	92	229	203	626	419	105	6.35	6.35
4	150,000	1019757	153	140	108	368	104	254	229	653	468	116	6.35	6.35
