Hi-Force MHX-PU Range Manual Hydrotest Pumps

Frequently bought together

Hi-Force MHX-PU Range Manual Hydrotest Pumps

From: £1,100.00Ex. VAT

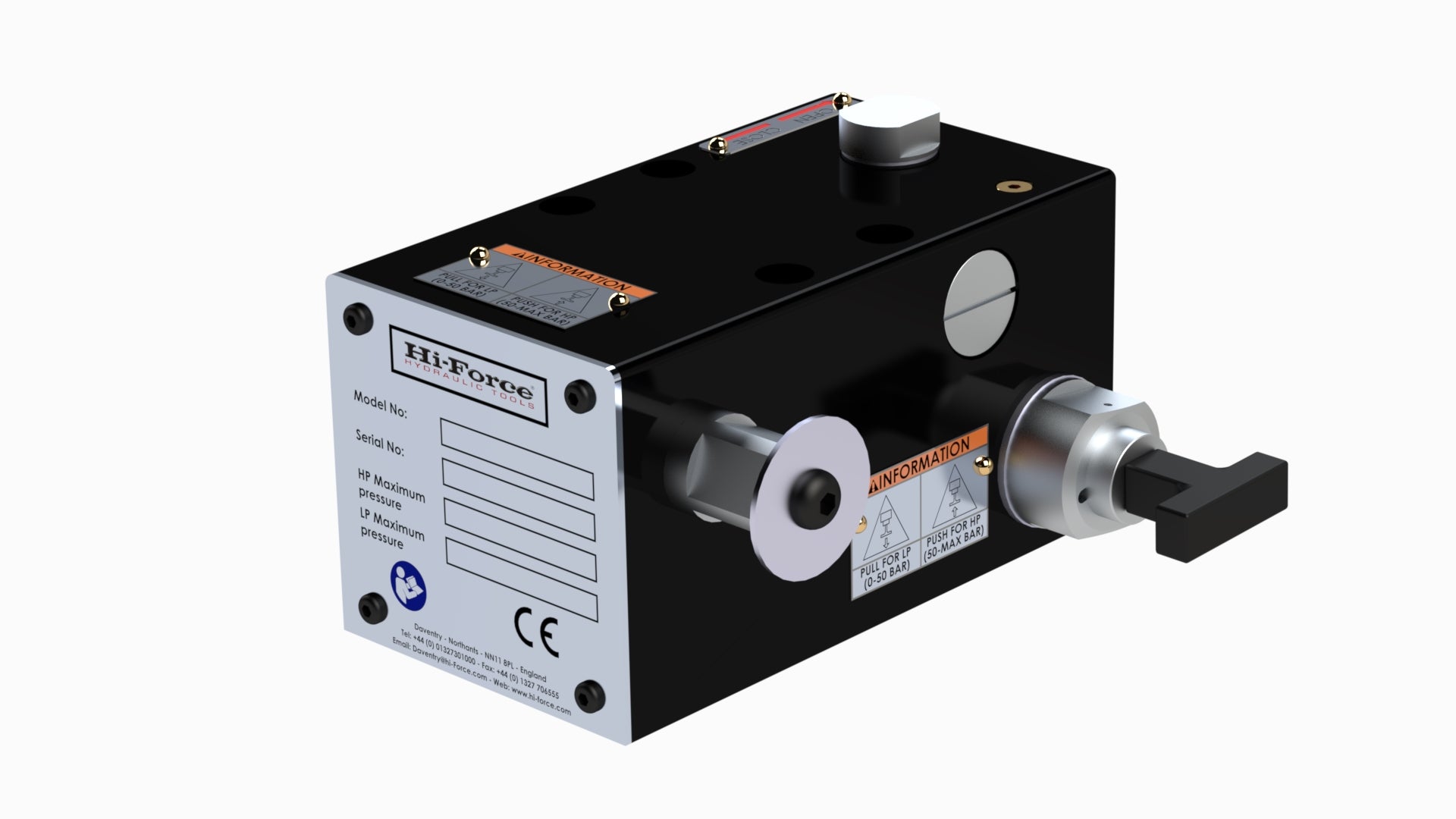

The Hi-Force MHX-PU series offer the same features as the MHX range however these are supplied as a pump unit and operating lever only without a fluid reservoir. The pump unit is supplied complete with a four bolt fixing kit with gasket for easy mounting on a fluid reservoir.

Choice of 5 models available
Maximum output pressures up to 1000 bar
Two stage displacement with manual T-Handle changeover plunger

Total: £0.00

MHX-PU

Choice of 5 models available
Maximum output pressures up to 1000 bar
Two stage displacement with manual T-Handle changeover plunger
Lightweight aluminium alloy pump unit with integral factory set safety relief valve
High grade stainless steel pistons for increased resistance to corrosion
Smooth manually operated 2-way pressure and release valve with precise control
Stainless steel, powder coated, 15 litres capacity reservoir with extended foot reaction bar
Multi-positional, 610 mm length operating lever with retaining washer and bolt
Optional 100 mm diameter hydraulic pressure gauges with fixing kit
Standard 3 metres length hose with swivel end fittings available as optional extra
Suitable for use with hydraulic mineral oil; demineralised, distilled and ‘filtered mains supplied’ water
For use with other fluids, consult Hi-Force as special seals may be required

Model Number (pump only)	Working Pressure bar	Valve type	Displacement Per Stroke cm³		Changeover Pressure bar	Outlet Port	Suction Port	Weight kg
Model Number (pump only)	Working Pressure bar	Valve type	1^st stage	2^nd stage	Changeover Pressure bar	Outlet Port	Suction Port	Weight kg
MHX100PU	100	2-way	50	22	50	3/8" NPT	3/8" NPT	5
MHX300PU	300	2-way	50	8	50	3/8" NPT	3/8" NPT	5
MHX500PU	500	2-way	50	4	50	3/8" NPT	3/8" NPT	5
MHX700PU	700	2-way	50	3	50	3/8" NPT	3/8" NPT	5
MHX1000PU	1000	2-way	50	2	50	3/8" BSP	3/8" NPT	5

Model Number	Dimensions in mm
Model Number	A	B	C	D	E	F	G	H	I	J
All models	180	95	71.5	35	46	69	760	105	177	4 X M8

Hi-Force MHX-PU Range Manual Hydrotest Pumps

From: £1,100.00Ex. VAT

Choice of 5 models available
Maximum output pressures up to 1000 bar
Two stage displacement with manual T-Handle changeover plunger
