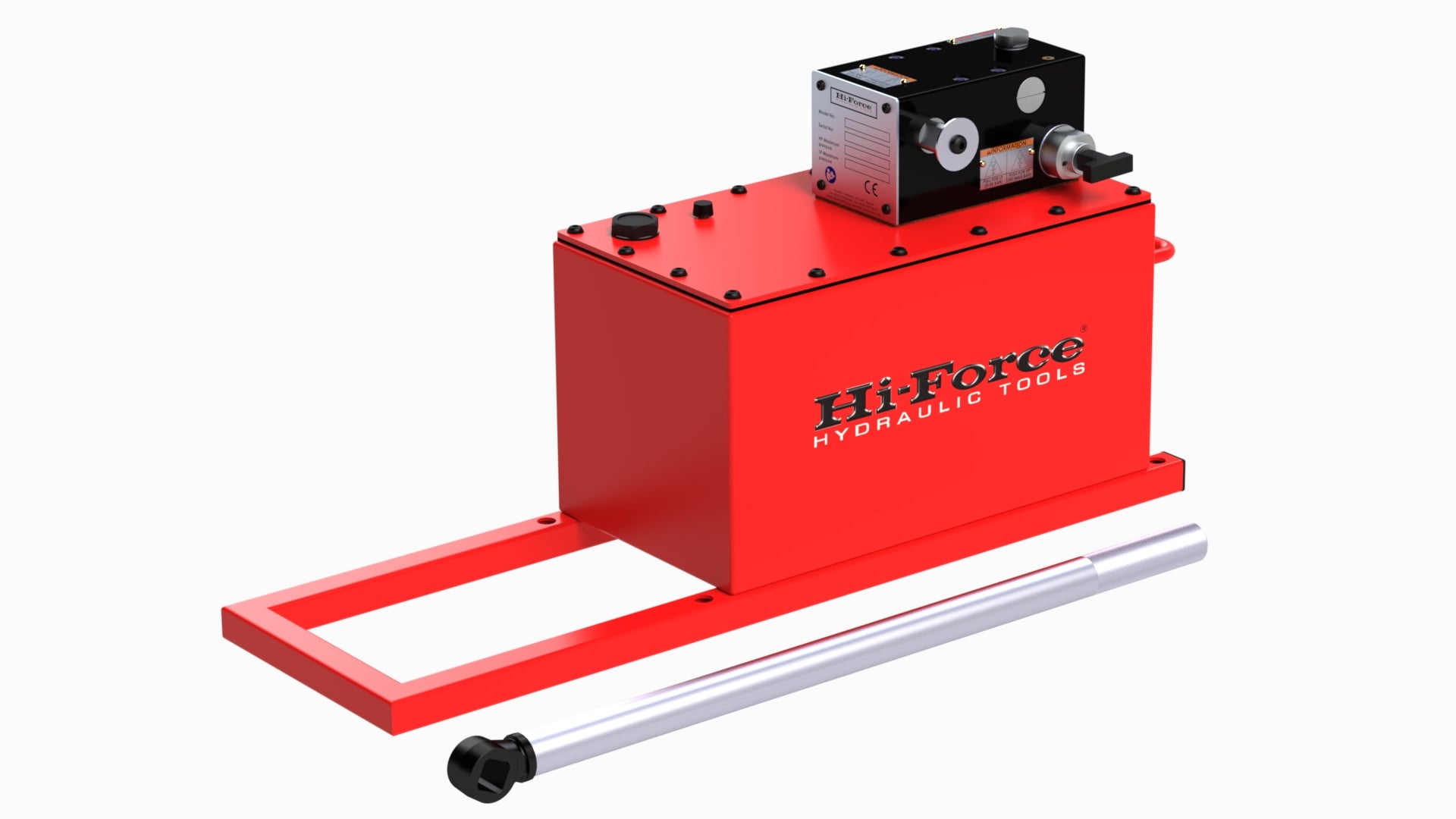

MHX Range
The Hi-Force MHX series of manually operated two speed hydrotest pumps are suitable for use in several applications including hydro-testing of pipes, pressure vessels, valves, and also back-up systems and other pressure retaining equipment, prior to commissioning. The pump's two stage piston design gives a high flow low pressure stage of 50 cm3 up to 50 bar pressure and incorporates a reliable smooth manual changeover from low to high pressure output.
The MHX range is available in 5 different pressure capacities ranging from 100 to 1000 bar working pressure and all models are fitted with a relief valve for added safety. Each pump is supplied with a multi positional 610 mm operating lever for increased operator comfort during use.
| Model Number (with reservoir) | Working Pressure bar | Displacement Per Stroke cm3 | Changeover Pressure bar | Outlet Port | Weight with reservoir kg | |
|---|---|---|---|---|---|---|
| 1st stage | 2nd stage | |||||
| MHX100 | 100 | 50 | 22 | 50 | 3/8" NPT | 20 |
| MHX300 | 300 | 50 | 8 | 50 | 3/8" NPT | 20 |
| MHX500 | 500 | 50 | 4 | 50 | 3/8" NPT | 20 |
| MHX700 | 700 | 50 | 3 | 50 | 3/8" NPT | 20 |
| MHX1000 | 1000 | 50 | 2 | 50 | 3/8" BSP | 20 |
