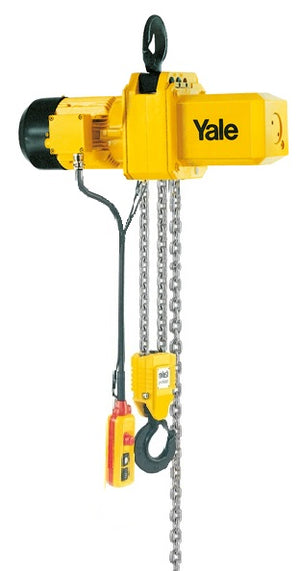

HIRE CPE 400v Electric chain hoist Hook Suspension

CPE Electric chain hoist Hook Suspension

The CPE Electric Chain Hoist range from 2000kg to 5000kg (2–5 tonne) is built for heavy-duty industrial lifting where reliability and safety are essential. Ideal for construction, fabrication, warehouses, and plant maintenance, these hoists deliver smooth, controlled lifting performance in demanding environments.

The CPE series combines a high-efficiency motor with precision gearing for consistent operation under substantial loads. A hardened, high-grade steel load chain and robust gearbox help ensure long service life, while dependable braking provides secure load holding.

Safety features typically include upper and lower limit switches and thermal motor protection to prevent over-travel and overheating during extended use.

Designed with practicality in mind, the hoists are composed of three main component parts, making inspections and servicing straightforward—helping reduce downtime and keep maintenance costs manageable.

Available for hire in 2–5 tonne capacities, the CPE Electric Chain Hoist offers a cost-effective solution for short-term projects, breakdown cover, or additional lifting capacity without the need to purchase equipment.

Features

  • The standard, oil bath lubricated planetary gear box is particularly smooth running and provides for a low overall height.
  • Low voltage control (42volt).
  • The 5-pocket load wheel, manufactured from wear resistant case hardened steel is matched perfectly to the load chain to guarantee smooth and precise chain motion.
  • Motor fitted with bimetallic thermal protection, used with low voltage control.
  • The heavy duty squirrel cage motor has an adjustable spring pressure brake that holds the load securely even in the event of a power failure.
  • Case hardened and zinc plated link chain.
  • The motor is designed for high duty cycle.
  • 400V, 3-phase, 50 Hz euro voltage.
  • Duty cycle 40% ED for single speed.
  • Motor protected to IP54, insulation class F.
  • Operating temperature -10°C to +50°C
  • The model CPE 100-2 consists of two CPE 50-2 units that are connected by a framework.

Model Capacity in kg (WLL) Chain falls Chain Dimensions d x p in mm FEM classification Lifting speed Hoist motor kW Motor rating ED % Net weight
Main Lift Fine Lift Suspension hook kg Push trolley kg Geared trolley kg Electric trolley kg
CPE 16-8 1600kg 1 11 x 31 1 Am 8 - 2.3 40 88 150 154 164
CPEF 16-8 1600kg 1 11 x 31 1 Am 8 2 2.3/0.58 40/20 93 155 159 169
CPE 20-8 2000kg 1 11 x 31 1 Bm 8 - 2.8 25 88 150 154 164
CPEF 20-8 2000kg 1 11 x 31 1 Bm 8 2 2.8/0.7 25/15 93 155 159 169
CPE 25-5 2500kg 1 11 x 31 1 Am 5 - 2.3 40 88 150 154 164
CPEF 25-5 2500kg 1 11 x 31 1 Am 5 1.25 2.3/0.58 40/20 93 155 159 169
CPE 30-5 3000kg 1 11 x 31 1 Bm 5 - 2.8 25 88 150 154 164
CPEF 30-5 3000kg 1 11 x 31 1 Bm 5 1.25 2.8/0.7 25/15 93 155 159 169
CPE 32-4 3200kg 2 11 x 31 1 Am 4 - 2.3 40 107 169 173 182
CPEF 32-4 3200kg 2 11 x 31 1 Am 4 1 2.3/0.58 40/20 112 174 178 187
CPE 40-4 4000kg 2 11 x 31 1 Bm 4 - 2.8 25 107 169 173 182
CPEF 40-4 4000kg 2 11 x 31 1 Bm 4 1 2.8/0.7 25/15 112 174 178 187
CPE 50-2 5000kg 2 11 x 31 1 Am 2.5 - 2.3 40 107 169 173 182
CPEF 50-2 5000kg 2 11 x 31 1 Am 2.5 0.6 2.3/0.58 40/20 112 174 178 187
CPE 75-1.6 7500kg 3 11 x 31 1 Am 1.6 - 2.8 40 - - - -
CPEF 75-1.6 7500kg 3 11 x 31 1 Am 1.6 0.4 2.8/0.58 40/20 - - - -
CPE 100-2 10000kg 4 11 x 31 1 Am 2.5 - 2 x 2.3 40 282 - - 406
CPEF 100-2 10000kg 4 11 x 31 1 Am 2.5 0.6 2 x 2.3 / 0.58 40/20 287 - - 411
Capacity (kg) Size Beam flange width (mm) Beam flange thickness max. (mm) Curve radius min. (m) Electric trolley travel speed (m/min at 50 Hz) Electric trolley motor (kW at 50 Hz)
1600 - 5000 A 98 - 180 27 2.0 11 or 11/2.8 0.37 or 0.3/0.09
1600 - 5000 B 180 - 300 27 1.8 11 or 11/2.8 0.37 or 0.3/0.09
7500 - 10000 B 125 - 310 40 1.8 11 or 11/2.8 0.55 or 0.55/0.12

Dimensions


Model CPE/CPEF 16-8 CPE/CPEF 20-8 CPE/CPEF 25-5 CPE/CPEF 30-5 CPE/CPEF 32-4 CPE/CPEF 40-4 CPE/CPEF 50-2 CPE/CPEF 75-1.6 CPE/CPEF 100-2
A, mm 516 516 516 516 681 681 681 950 1068
Al, mm 286 286 286 286 428 428 428 479 651
A2 (13m), mm 430 430 430 430 430 430 430
A2 (21m), mm 530 530 530 530 530 530 530 530 555
B, mm 35 35 35 35 45 45 45 60 60
C, mm 37 37 37 37 46 46 46 52 52
D, mm 24 24 24 24 30 30 30 40/45 40/45
E, mm 24 24 24 24 24 24 24
Fl, mm 160 160 160 160 160 160 160 160 160
F2, mm 178 178 178 178 178 178 178 178 178
G, mm 220 220 220 220 220 220 220 220
Gl, mm 180 180 180 180 140 140 140 268 315
G2 (13m), mm 257 257 257 257 218 218 218 — —
G2 (21m), mm 277 277 277 277 238 238 238 345 408
H1, mnn 110 110 110 110 110 110 110 110 135
H2, mm 135 135 135 135 135 135 135 307 256
Kl, mm 100 100 100 100 100 100 100 92 92
K2, mm 51 51 51 51 51 51 51 62 62
M, mm 50 50 50 50 10 10 10 138
N, mm 84 84 84 84 124 124 124 136 390
Ql, mm 280 280 280 280 280 280 280 280 280
Q2 (CPE), mm 362 362 362 362 362 362 362 362 362
Q2 (CPEF), mm 417 417 417 417 417 417 417 417 417

HIRE CPE 400v Electric chain hoist Hook Suspension

HIRE CPE 400v Electric chain hoist Hook Suspension

From: £148.00Ex. VAT
Est. lead time to dispatch: Same Day

Note: price is estimated on one week hire.

The CPE series is a range of high quality products for professional applications. They are highly efficient and engineered for a long working life.

  • Capacity 2000 - 5000 kg
  • Single-speed or dual-speed lifting
  • Top hook suspension
