HIRE YALE VSIII Hand Chain Hoist | 250Kg -10Tonne

Frequently hired together

HIRE YALE VSIII Hand Chain Hoist | 250Kg -10Tonne

From: £18.50Ex. VAT

The newly designed hand chain hoist VSIII is an innovative further development introduced by Yale.

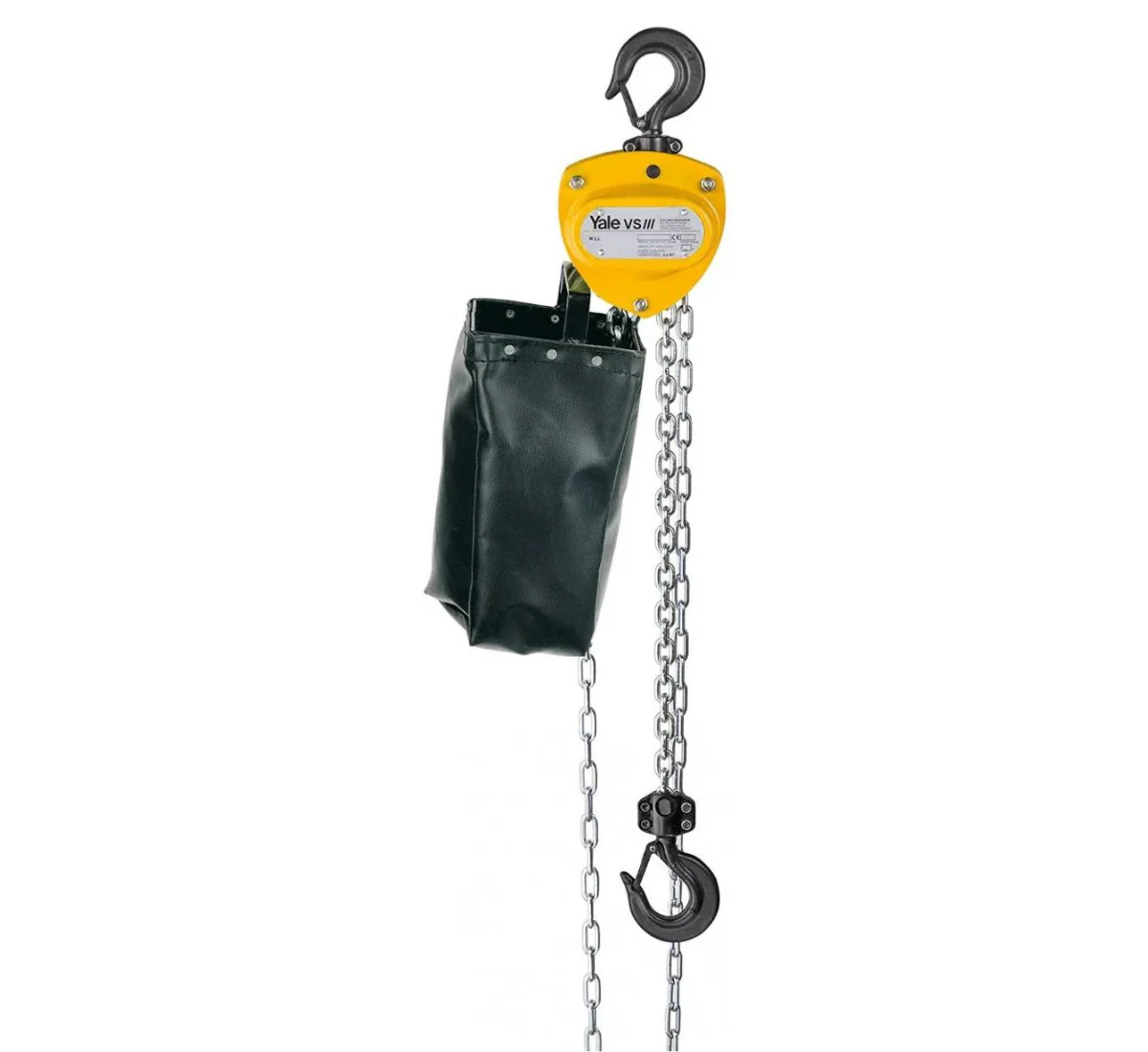

Additional lift heights & chain container sizes available on request.

Capacity 250 - 10000 kg
The hooks are equipped with robust safety latches and can rotate 360°
Zinc-plated load chain as standard for added corrosion protection

Adjustable Lightweight Runway Beam Trolleys

HIRE Adjustable Lightweight Runway Beam Trolley

£24.75

This range of Adjustable Lightweight Runway Beam Trolleys is a range of lightweight hand push SUPERCLAMP runway beam trolleys. It offers easy to use mobile securing attachments for load and lifting requirements.

- Sizes available 1016KG to 2032KG

- Beam widths 63mm-203mm

Total: £0.00

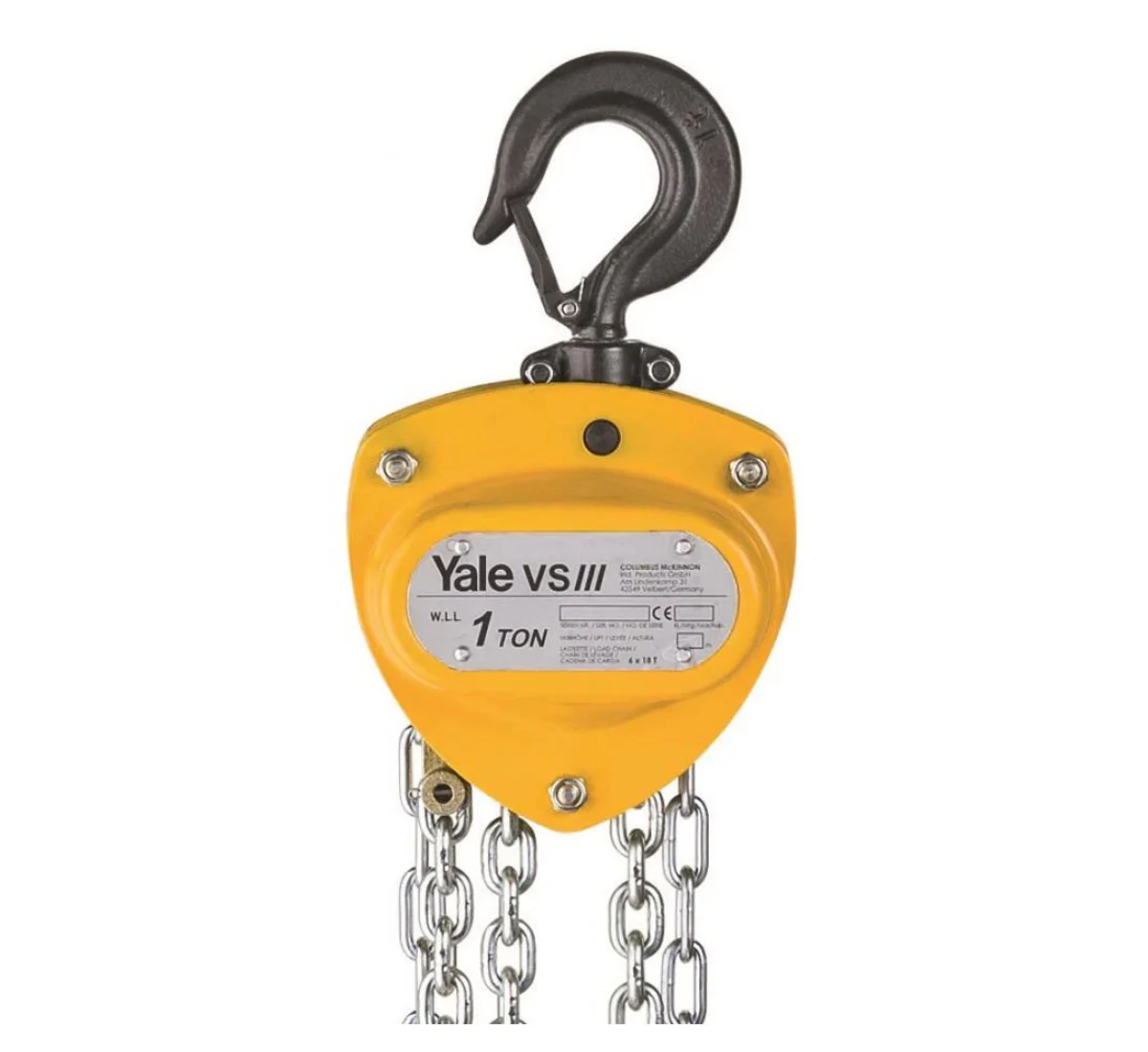

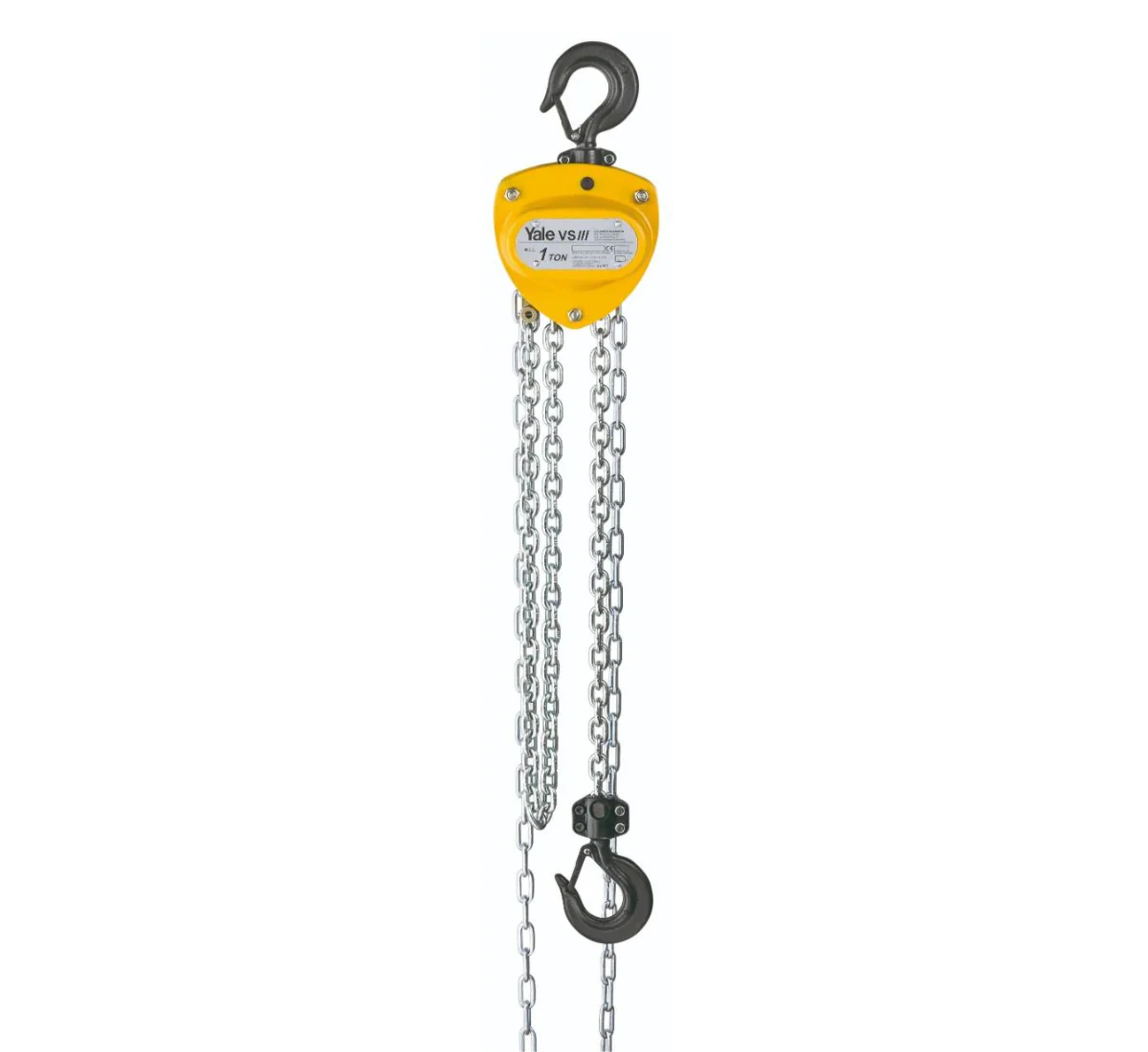

YALE Hand chain hoist model VSIII

The Yale VSIII Hand Chain Hoist is a premium manual lifting solution available for hire in capacities from 250 kg up to 10 tonne.

Designed for durability and smooth operation, the VSIII features an improved hand chain guide to prevent twisting or jamming, ensuring consistent, reliable performance on site. High-quality bearings in the side plates, gearbox and load chain sheave provide exceptionally smooth load chain movement and reduced operating effort.

Engineered for demanding industrial and site applications, this hoist delivers controlled, precise lifting with optimised hand forces for safer and easier operation.

Strong bolts between side plates and housing cover and the reinforced hand wheel cover ensure increased stability.
Precision machined guide rollers ensure smooth running of the load chain.
High quality bearings for gearbox, side plates and load chain sheave permit a long service life.
Zinc-plated and yellow-chromated brake parts and guide rollers ensure increased corrosion protection.
Zinc-plated load chain as standard for added corrosion
protection.

Model	Art.-No.	Capacity in kg / Number of chain falls	Chain dimensions p x b	Weight at standard lift (3m) kg
VSIII 0.25/1	N04200123	250/1	4 x 12 - T	4.9
VSIII 0.5/1	N04200124	500/1	5 x 15 - T	9
VSIII 1.0/1	N04200125	1000/1	6 x 18 - T	11.5
VSIII 2.0/1	N04200126	2000/1	8 x 24 - T	19
VSIII 2.0/2	N04200127	2000/2	6 x 18 - T	17.3
VSIII 3.0/1	N04200128	3000/1	10 x 30 - T	31
VSIII 3.0/2	N04200129	3000/2	8 x 24 - T	27
VSIII 5.0/2	N04200130	5000/2	10 x 30 - T	43
VSIII 10/4	192039383	10000/4	11 x 30 - T	78.5
VSIII 20/8	192039384	20000/8	12 x 30 - T	197
VSIII 30/12	192039385	30000/12	13 x 30 - T	268
VSIII 50/18	192039386	50000/18	14 x 30 - T	540

Dimensions	VSIII 0.25/1	VSIII 0.5/1	VSIII 1.0/1	VSIII 2.0/1	VSIII 2.0/2	VSIII 3.0/1	VSIII 3.0/2	VSIII 5.0/2	VSIII 10/4	VSIII 20/8	VSIII 30/12	VSIII 50/18
A min, mm	290	350	380	460	490	570	580	700	860	950	1112	1700
B, mm	12	21	27	37	37	46	46	56	63	90	90	165
C, mm	26	28	32	41	41	44	44	50	65	86	85	135
D, mm	11	16	19	27	27	31	31	37	47	69	67	108
E, mm	118	145	158	205	170	240	220	250	463	860	704	776
F, mm	113	140	155	180	155	210	175	190	104	200	410	627
G, mm	65	80	87	94	87	110	94	95	55	100	225	314
H, mm	48	60	68	86	68	100	81	95	50	100	186	314
K, mm	190	240	270	320	285	370	340	410	448	508	528	656

Videos

HIRE YALE VSIII Hand Chain Hoist | 250Kg -10Tonne

Name: HIRE YALE VSIII Hand Chain Hoist | 250Kg -10Tonne
Brand: Hire Rope & Marine Services
Price: 18.5 GBP
Availability: InStock

From: £18.50Ex. VAT

Est. lead time to dispatch: Same Day

Note: price is estimated on one week hire.

The newly designed hand chain hoist VSIII is an innovative further development introduced by Yale.

Additional lift heights & chain container sizes available on request.

Capacity 250 - 10000 kg
The hooks are equipped with robust safety latches and can rotate 360°
Zinc-plated load chain as standard for added corrosion protection

CAPACITY

Lift Height (m)

Dates required

Quantity

How does hiring work?

Simply complete the form above with your required specifications and dates, then click “Add to Hire List” to add the item to your Hire Cart. Once you’ve added everything you need, submit your enquiry via the basket and our team will be in touch to arrange the details. We usually stock this specific brand within our extensive hire fleet. If it’s unavailable, we will supply a like-for-like alternative of equal specification and quality.
