SC92 Beam Clamps with shackle

Capacity 1000 - 20000 kg

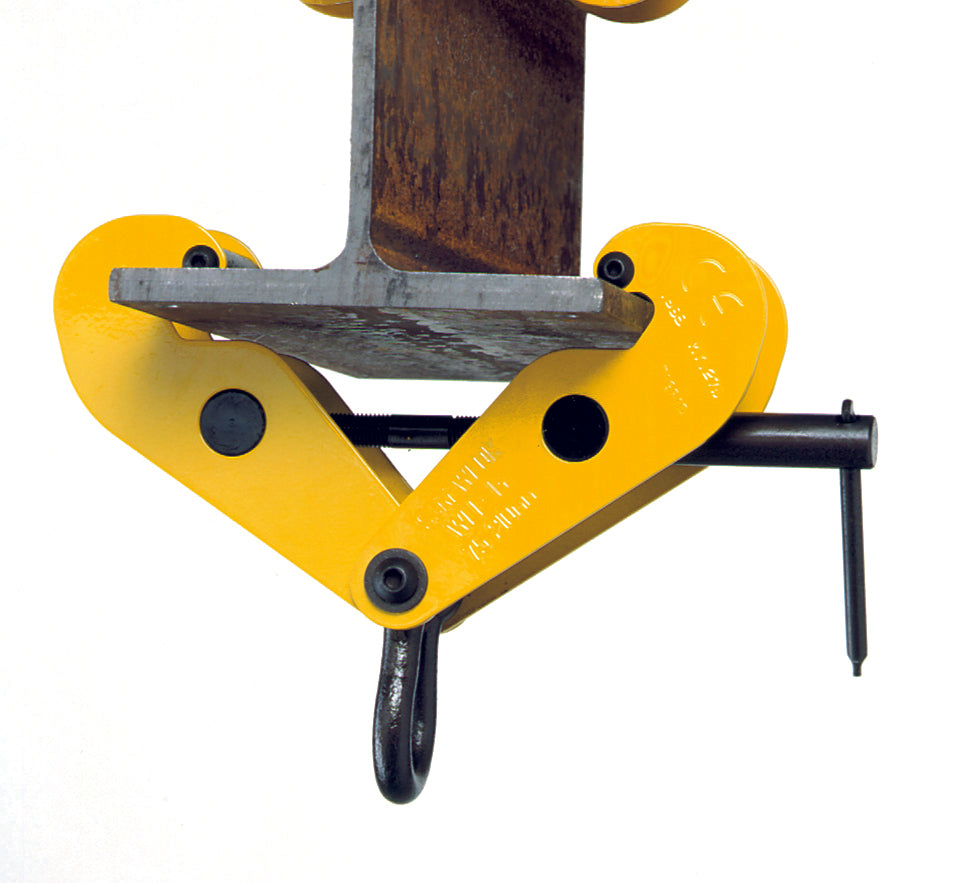

The SC92 beam clamp provides a quick and versatile rigging point for hoisting equipment, pulley blocks or loads. The unit offers flexible applications, due to the wide adjustment range. The shackle suspension allows easy attachment of lifting machines. The clamp offers a safe and secure grip to the beam flange.

NB. THIS MODEL MUST NOT BE USED FOR LIFTING BEAMS. IT IS A SUSPENSION POINT.

Working load limit: 1000 - 20000 kg
The unit offers flexible applications due to the wide adjustment range.
The shackle suspension allows easy attachment of lifting devices.
The clamp offers a safe and secure grip to the beam flange.

INFO:This model must not be used for lifting. It is a suspension point.

Model	Art.-No.	Capacity kg	Beam flange width b mm	Weight kg
SC92-1	N05400002	1000	75 - 210	5
SC92-2	N05400003	2000	75 - 210	6
SC92-3	N05400004	3000	100 - 270	8
SC92-3/L	N4300000237	3000	75 - 305	9
SC92-5	N05400005	5000	100 - 270	10
SC92-5/L	N4300000241	5000	75 - 305	12
SC92-10	N05400001	10000	75 - 305	19
SC92-15	N4300000232	15000	75 - 305	35
SC92-20	192027171	20000	300 - 410	87

Dimensions	SC92-1	SC92-2	SC92-3	SC92-3/L	SC92-5
A, mm	115	115	180	180	175
A max , mm	150	150	225	225	220
A1, mm	78	78	85	95	95
A2, mm	246	246	325	325	325
B1, mm	186	186	232	242	268
B2, mm	350	350	455	445	480
b1, mm	75	75	80	90	90
b2, mm	230	230	320	320	320
C, mm	50	50	70	70	70
D, mm	3	4	6	10	14
E, mm	215	215	255	255	275
F1, mm	34	35	35	35	35
F2, mm	17	18	21	21	20
G1, mm	82	82	120	116	110
G2, mm	44	44	75	75	66
H, mm	20	20	22	28	38
J1, mm	1	414	30	30	34
J2, mm	21	21	34	34	35
K1, mm	48	50	60	60	60
K2, mm	31	32	40	42	40
L, mm	80	86	114	129	146
