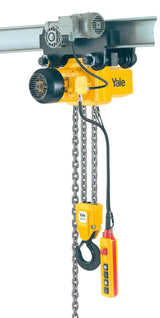

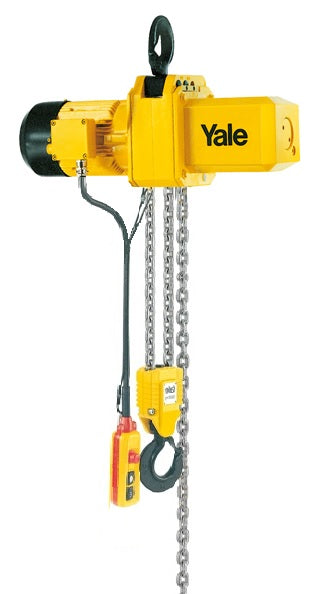

CPE 400v Electric chain hoist

From: £3,951.55Ex. VAT ~~£4,648.88~~

Hire from £148.00

The CPE series is a range of high quality products for professional applications. They are highly efficient and engineered for a long working life. The hoists are composed of three main component parts which makes servicing easy.

Capacity 1600 - 10000 kg
Single-speed or dual-speed lifting
Top hook suspension, manual or electric trolley

Hire Me

Green Pin® Bow Shackle SC - Standard bow shackle with screw collar pin

From: £3.05Ex. VAT

Hire from £2.20

The Green Pin®Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long term durability

Total: £0.00

CPE Electric chain hoist

Quick Overview:

Up to 10,000kg Capacity
3 Meter height of lift as standard
2 Meter pendant length as standard
Single speed trolley at 11 m/min
Dual speed trolley at 11/2.8 m/min

Features

The standard, oil bath lubricated planetary gear box is particularly smooth running and provides for a low overall height.
Low voltage control (42volt).
The 5-pocket load wheel, manufactured from wear resistant case hardened steel is matched perfectly to the load chain to guarantee smooth and precise chain motion.
Motor fitted with bimetallic thermal protection, used with low voltage control.
The heavy duty squirrel cage motor has an adjustable spring pressure brake that holds the load securely even in the event of a power failure.
Case hardened and zinc plated link chain.
The motor is designed for high duty cycle.
400V, 3-phase, 50 Hz euro voltage.
Duty cycle 40% ED for single speed.
Motor protected to IP54, insulation class F.
Operating temperature -10°C to +50°C
The model CPE 100-2 consists of two CPE 50-2 units that are connected by a framework.

Options:

Standard suspension hook (non swivel).
Suspension hook rotated through 900 (non swivel).
Manual and electric trolleys.
Festoon cable system.
Stainless steel load chain.
Chain container.
Motor with stainless steel brake.
Radio remote control.
Other operating voltages.

yale-hoisting-cpef-db-en-ger-2024-04-01.pdf

Model	Capacity in kg (WLL)	Chain falls	Chain Dimensions d x p in mm	FEM classification	Lifting speed		Hoist motor kW	Motor rating ED %	Net weight
Model	Capacity in kg (WLL)	Chain falls	Chain Dimensions d x p in mm	FEM classification	Main Lift	Fine Lift	Hoist motor kW	Motor rating ED %	Suspension hook kg	Push trolley kg	Geared trolley kg	Electric trolley kg
CPE 16-8	1600kg	1	11 x 31	1 Am	8	-	2.3	40	88	150	154	164
CPEF 16-8	1600kg	1	11 x 31	1 Am	8	2	2.3/0.58	40/20	93	155	159	169
CPE 20-8	2000kg	1	11 x 31	1 Bm	8	-	2.8	25	88	150	154	164
CPEF 20-8	2000kg	1	11 x 31	1 Bm	8	2	2.8/0.7	25/15	93	155	159	169
CPE 25-5	2500kg	1	11 x 31	1 Am	5	-	2.3	40	88	150	154	164
CPEF 25-5	2500kg	1	11 x 31	1 Am	5	1.25	2.3/0.58	40/20	93	155	159	169
CPE 30-5	3000kg	1	11 x 31	1 Bm	5	-	2.8	25	88	150	154	164
CPEF 30-5	3000kg	1	11 x 31	1 Bm	5	1.25	2.8/0.7	25/15	93	155	159	169
CPE 32-4	3200kg	2	11 x 31	1 Am	4	-	2.3	40	107	169	173	182
CPEF 32-4	3200kg	2	11 x 31	1 Am	4	1	2.3/0.58	40/20	112	174	178	187
CPE 40-4	4000kg	2	11 x 31	1 Bm	4	-	2.8	25	107	169	173	182
CPEF 40-4	4000kg	2	11 x 31	1 Bm	4	1	2.8/0.7	25/15	112	174	178	187
CPE 50-2	5000kg	2	11 x 31	1 Am	2.5	-	2.3	40	107	169	173	182
CPEF 50-2	5000kg	2	11 x 31	1 Am	2.5	0.6	2.3/0.58	40/20	112	174	178	187
CPE 75-1.6	7500kg	3	11 x 31	1 Am	1.6	-	2.8	40	-	-	-	-
CPEF 75-1.6	7500kg	3	11 x 31	1 Am	1.6	0.4	2.8/0.58	40/20	-	-	-	-
CPE 100-2	10000kg	4	11 x 31	1 Am	2.5	-	2 x 2.3	40	282	-	-	406
CPEF 100-2	10000kg	4	11 x 31	1 Am	2.5	0.6	2 x 2.3 / 0.58	40/20	287	-	-	411

Capacity (kg)	Size	Beam flange width (mm)	Beam flange thickness max. (mm)	Curve radius min. (m)	Electric trolley travel speed (m/min at 50 Hz)	Electric trolley motor (kW at 50 Hz)
1600 - 5000	A	98 - 180	27	2.0	11 or 11/2.8	0.37 or 0.3/0.09
1600 - 5000	B	180 - 300	27	1.8	11 or 11/2.8	0.37 or 0.3/0.09
7500 - 10000	B	125 - 310	40	1.8	11 or 11/2.8	0.55 or 0.55/0.12

Dimensions

Model	CPE/CPEF 16-8	CPE/CPEF 20-8	CPE/CPEF 25-5	CPE/CPEF 30-5	CPE/CPEF 32-4	CPE/CPEF 40-4	CPE/CPEF 50-2	CPE/CPEF 75-1.6	CPE/CPEF 100-2
A, mm	516	516	516	516	681	681	681	950	1068
Al, mm	286	286	286	286	428	428	428	479	651
A2 (13m), mm	430	430	430	430	430	430	430
A2 (21m), mm	530	530	530	530	530	530	530	530	555
B, mm	35	35	35	35	45	45	45	60	60
C, mm	37	37	37	37	46	46	46	52	52
D, mm	24	24	24	24	30	30	30	40/45	40/45
E, mm	24	24	24	24	24	24	24
Fl, mm	160	160	160	160	160	160	160	160	160
F2, mm	178	178	178	178	178	178	178	178	178
G, mm	220	220	220	220	220	220	220	220
Gl, mm	180	180	180	180	140	140	140	268	315
G2 (13m), mm	257	257	257	257	218	218	218	—	—
G2 (21m), mm	277	277	277	277	238	238	238	345	408
H1, mnn	110	110	110	110	110	110	110	110	135
H2, mm	135	135	135	135	135	135	135	307	256
Kl, mm	100	100	100	100	100	100	100	92	92
K2, mm	51	51	51	51	51	51	51	62	62
M, mm	50	50	50	50	10	10	10	138
N, mm	84	84	84	84	124	124	124	136	390
Ql, mm	280	280	280	280	280	280	280	280	280
Q2 (CPE), mm	362	362	362	362	362	362	362	362	362
Q2 (CPEF), mm	417	417	417	417	417	417	417	417	417
