YALE VSIII Hand Chain Hoists

From: £153.23Ex. VAT ~~£180.27~~

Hire from £18.50

The newly designed hand chain hoist VSIII is an innovative further development introduced by Yale.

Additional lift heights & chain container sizes available on request.

Capacity 250 - 50000 kg
The hooks are equipped with robust safety latches and can rotate 360°
Zinc-plated load chain as standard for added corrosion protection

Hire Me

Crosby G-209 Alloy Bow Shackle

From: £6.23Ex. VAT

Hire from £2.20

The Crosby G-209 Screw Pin Anchor Shackle is a trusted choice for lifting, rigging and load-securing applications across construction, industrial, marine and transport environments.

- Sizes available 0.33t to 55t

- Hot-dip galvanized

- Forged, Quenched & Tempered, with alloy pins

Total: £0.00

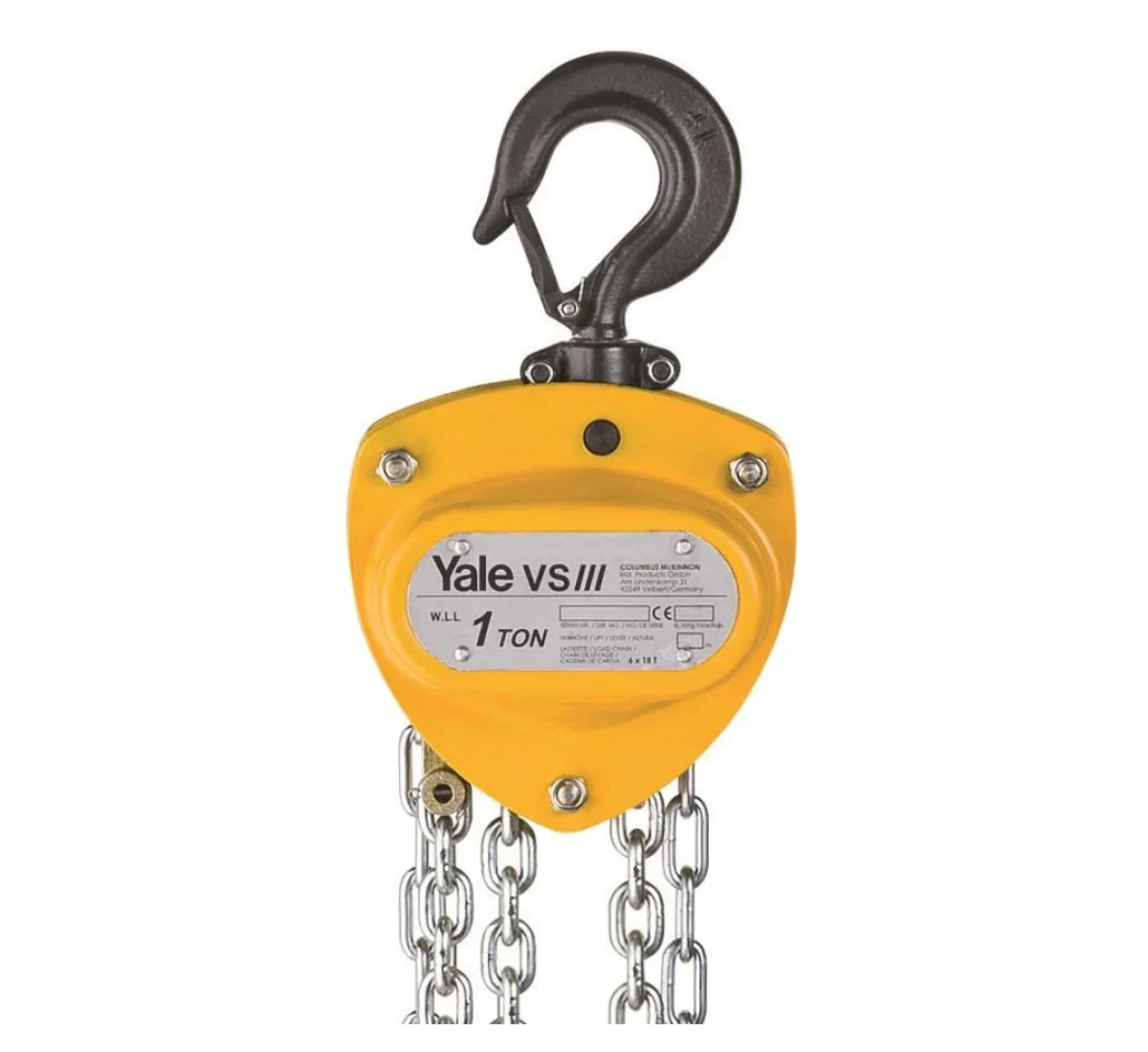

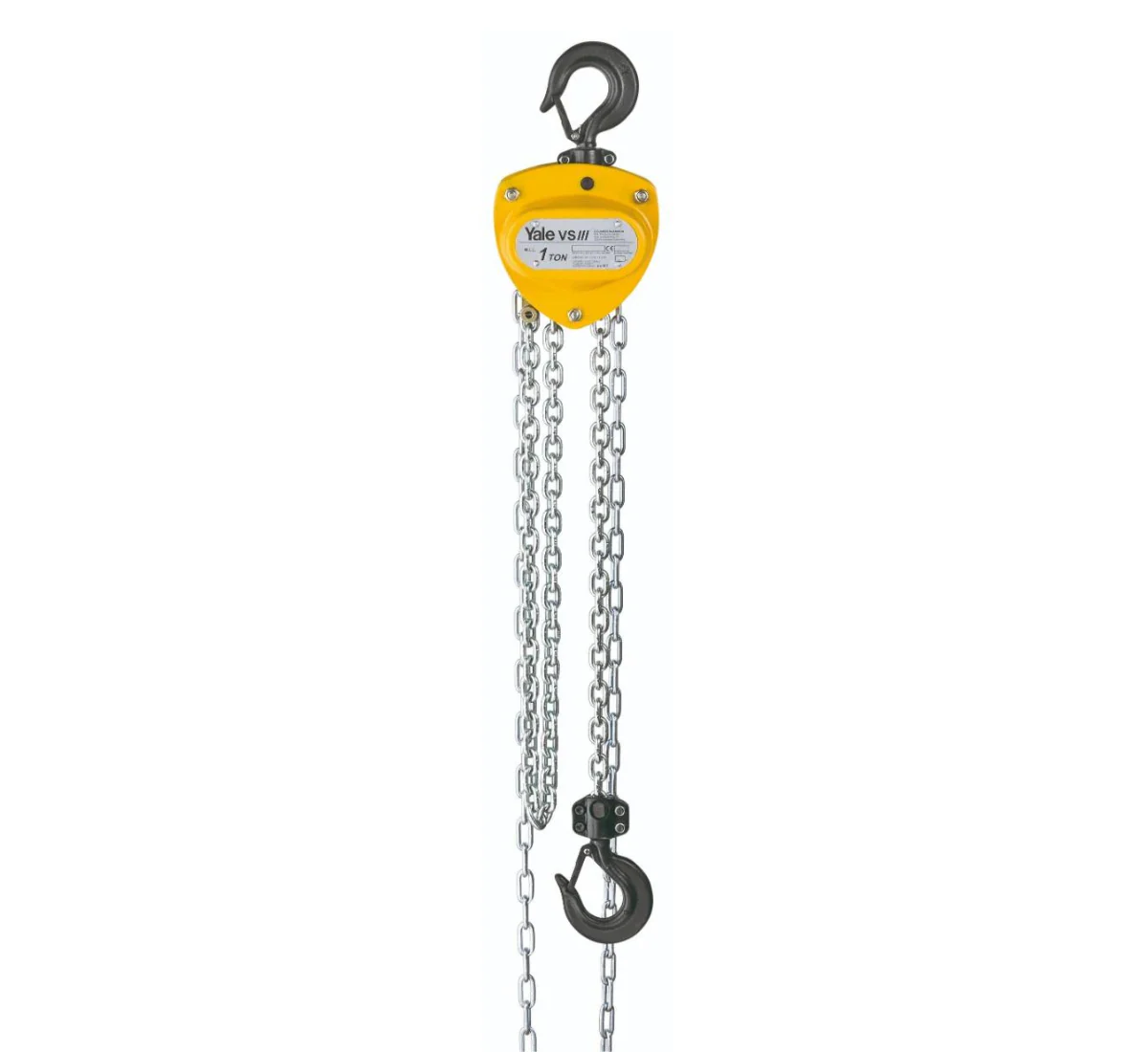

YALE Hand chain hoist model VSIII

Capacities: 250kg - 50t

The newly designed hand chain hoist VSIII is an innovative further development introduced by Yale. The improved hand chain guide prevents canting or jamming of the hand chain, leading to a smooth running of the chain. High quality bearings on side plates, gearbox and load chain sheave ensure smooth operation of load chain and drive pinion.

Optimised hand forces set standards for easy operation.

Features

Strong bolts between side plates and housing cover and the reinforced hand wheel cover ensure increased stability.
Precision machined guide rollers ensure smooth running of the load chain.
High quality bearings for gearbox, side plates and load chain sheave permit a long service life.
Zinc-plated and yellow-chromated brake parts and guide rollers ensure increased corrosion protection.
Zinc-plated load chain as standard for added corrosion
protection.

Optional

Overload protection device (from 500 kg available)

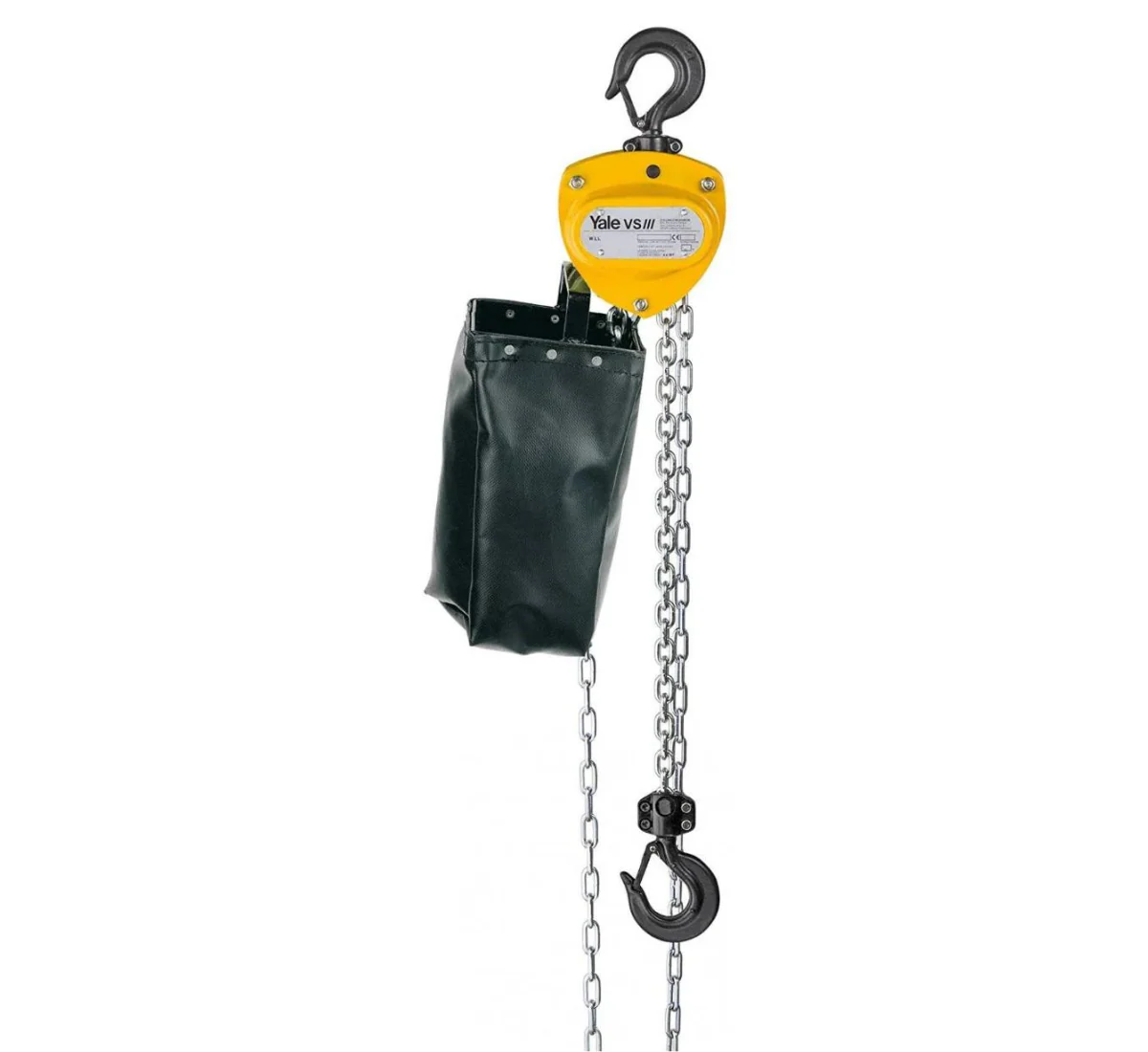

Chain container

Model	Art.-No.	Capacity in kg / Number of chain falls	Chain dimensions p x b	Weight at standard lift (3m) kg
VSIII 0.25/1	N04200123	250/1	4 x 12 - T	4.9
VSIII 0.5/1	N04200124	500/1	5 x 15 - T	9
VSIII 1.0/1	N04200125	1000/1	6 x 18 - T	11.5
VSIII 2.0/1	N04200126	2000/1	8 x 24 - T	19
VSIII 2.0/2	N04200127	2000/2	6 x 18 - T	17.3
VSIII 3.0/1	N04200128	3000/1	10 x 30 - T	31
VSIII 3.0/2	N04200129	3000/2	8 x 24 - T	27
VSIII 5.0/2	N04200130	5000/2	10 x 30 - T	43
VSIII 10/4	192039383	10000/4	11 x 30 - T	78.5
VSIII 20/8	192039384	20000/8	12 x 30 - T	197
VSIII 30/12	192039385	30000/12	13 x 30 - T	268
VSIII 50/18	192039386	50000/18	14 x 30 - T	540

Dimensions	VSIII 0.25/1	VSIII 0.5/1	VSIII 1.0/1	VSIII 2.0/1	VSIII 2.0/2	VSIII 3.0/1	VSIII 3.0/2	VSIII 5.0/2	VSIII 10/4	VSIII 20/8	VSIII 30/12	VSIII 50/18
A min, mm	290	350	380	460	490	570	580	700	860	950	1112	1700
B, mm	12	21	27	37	37	46	46	56	63	90	90	165
C, mm	26	28	32	41	41	44	44	50	65	86	85	135
D, mm	11	16	19	27	27	31	31	37	47	69	67	108
E, mm	118	145	158	205	170	240	220	250	463	860	704	776
F, mm	113	140	155	180	155	210	175	190	104	200	410	627
G, mm	65	80	87	94	87	110	94	95	55	100	225	314
H, mm	48	60	68	86	68	100	81	95	50	100	186	314
K, mm	190	240	270	320	285	370	340	410	448	508	528	656
